Bently Nevada 32000-30-10-00-095-02-02 Metric Proximity Probe Housing Assemblies

Description

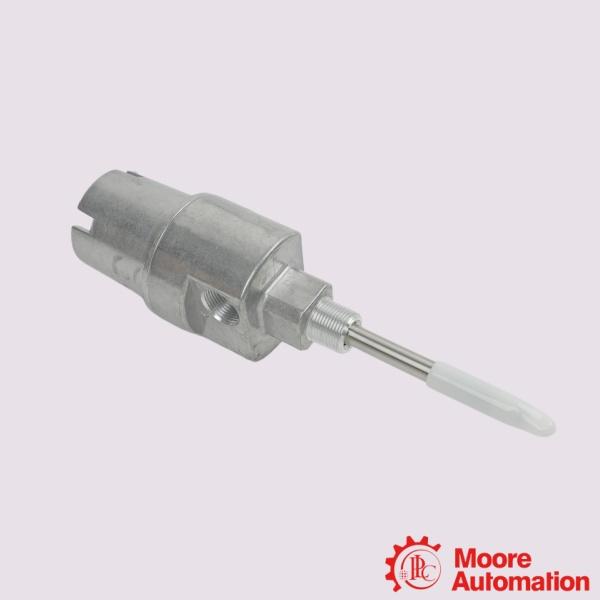

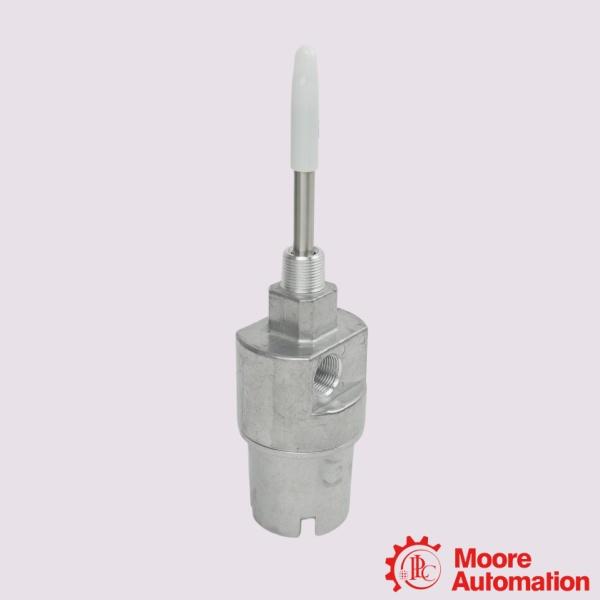

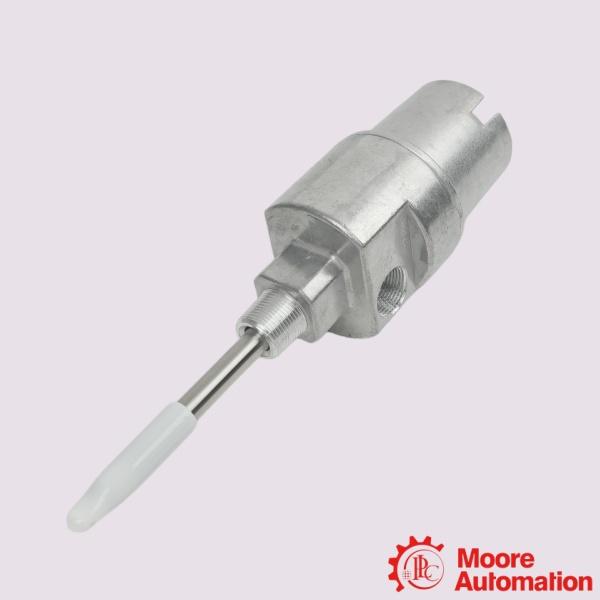

The Bently Nevada 32000-30-10-00-095-02-02 is a 32000 Series metric proximity probe housing assembly designed to provide a convenient and reliable method for mounting a proximity probe through a machine casing for radial vibration and Keyphasor® measurements. The housing allows the proximity probe and extension cable to be inspected, adjusted, or replaced from outside the machine without disassembling the equipment, helping reduce maintenance time and downtime. It features a corrosion-resistant polyphenylene sulfide (PPS) thermoplastic housing with stainless steel hardware for long-term durability in demanding industrial environments. The housing assembly is designed to meet the external probe housing requirements of API 670 and, when used with approved transducer systems and intrinsic safety barriers, is suitable for hazardous area installations.

Parameter

Model: 32000-30-10-00-095-02-02 Proximity Probe Assemblies
Probe with Connector: 30-3300 XL 8 mm probe, with connector protector, multiple approvals
Probe Cable Length: 10-1.0 m (39 in)
Standoff Adapter Length (Option C Dimension): 00-00 mm
Probe Penetration Option (Option D Dimension): 095-95 mm
MFittings: 02-Two M25 fittings, one plug
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option.)

Frequently asked questions

Q:What is the Bently Nevada 32000-30-10-00-095-02-02 used for?
A:The Bently Nevada 32000-30-10-00-095-02-02 is a 32000 Series metric proximity probe housing assembly designed to mount a proximity probe through a machine casing for radial vibration monitoring and Keyphasor® measurements.

Q:Can the 32000-30-10-00-095-02-02 be used in hazardous areas?
A:Yes. When used with approved Bently Nevada transducer systems and appropriate intrinsic safety barriers, the housing assembly is suitable for hazardous area applications in accordance with the applicable certifications.

Q:Which proximity probe is included with the 32000-30-10-00-095-02-02?
A:This model is supplied with a 3300 XL 8 mm proximity probe with connector protectors and a 1.0 m probe cable.

Application areas

The Bently Nevada 32000-30-10-00-095-02-02 is a Metric Proximity Probe Housing Assembly designed to protect eddy current sensors (such as the 3300 XL series) in harsh industrial environments.

• Steam & Gas Turbines: Protects probes measuring shaft vibration and axial thrust position.
• Generators: Monitors bearing vibration and shaft eccentricity.
• Hydroelectric Turbines: Shields sensors from high-moisture environments.

• Pulp & Paper Mills: Resists long-term exposure to high-temperature water and steam splash.
