in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

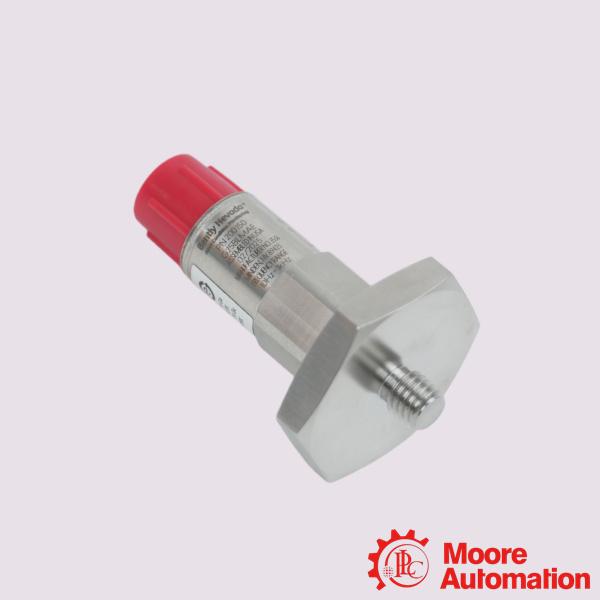

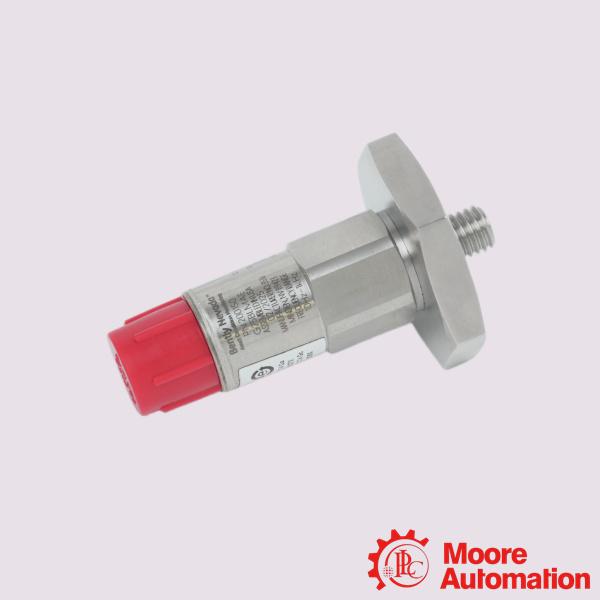

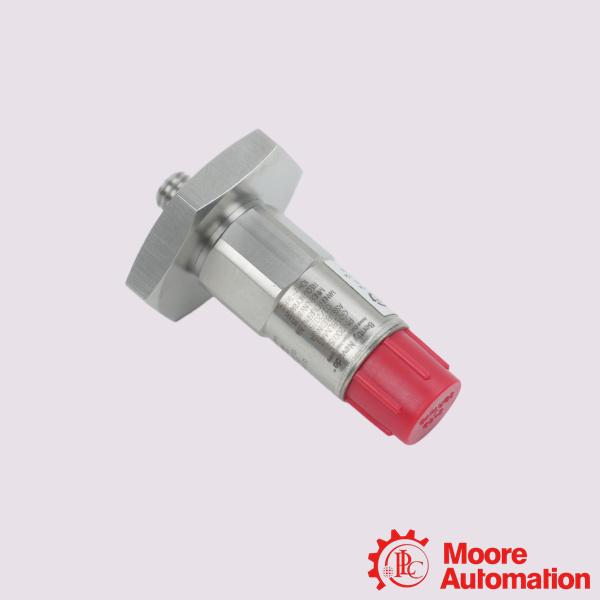

Bently Nevada 200150-08-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-08-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-08-05 is a general-purpose, case-mounted seismic piezoelectric accelerometer. It is primarily engineered for industrial machinery vibration monitoring within the Trendmaster Pro and Trendmaster 2000 condition monitoring systems. The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
Application:
Power Generation & Energy Infrastructure: Continuously tracks mechanical stress inside small-to-medium steam and gas turbines, auxiliary cooling systems, generators, and large draft fans.
Oil, Gas, & Petrochemical Processing: Installed directly on peripheral equipment including process water pumps, high-pressure pipeline injection pumps, and transfer compressors to prevent localized mechanical failures.
Water & Wastewater Management: Monitors high-capacity centrifugal pumps, municipal aeration fans, and distribution blowers that run continuously over multi-year cycles.
Mining & Heavy Processing: Mounted to heavy-duty aggregate crushers, material pulverizers, conveyor belt drives, and large industrial sorting screens to trace structural degra
Frequently Asked Questions (FAQ)
Q:Which systems is this sensor compatible with?
A:It interfaces directly with the Trendmaster Pro system via Transducer Interface Modules (ProTIMs). It is also backward-compatible with legacy Trendmaster 2000 hardware, the 200100 flexiTIM module, and 1900/25 or 1900/27 monitors.
Q:What does the "-05" approval option cover?
A:The -05 suffix indicates a multi-approval label. This covers global hazardous location standards including CSA/NRTL/C, ATEX, and IECEx for intrinsically safe (Class I, Div 1 / Zone 0) and non-incendive (Class I, Div 2 / Zone 2) installations.
Q:What is the recommended mounting torque?
A:The sensor must be torqued between 2.7 to 6.8 N·m (2 to 5 ft·lbf) during installation. Improper torque will degrade high-frequency vibration transmission or damage the housing threads.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-08-05 |
|
Mounting Stud Option |
3/8-24 to 1/2 NPT 1 inch hex stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
