in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.75 cm × 4.57 cmWeight:
0.058 kgCountry of Origin: :
USADescription:

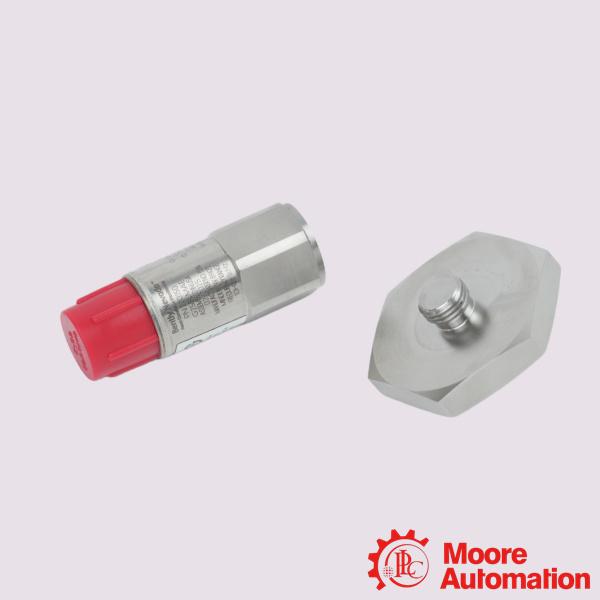

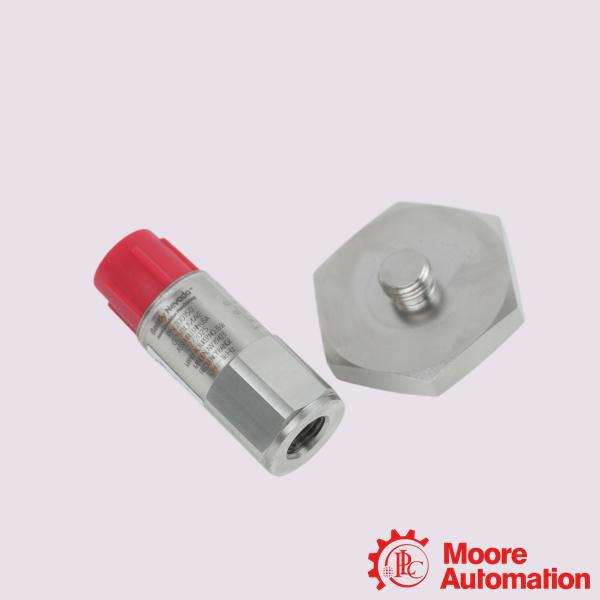

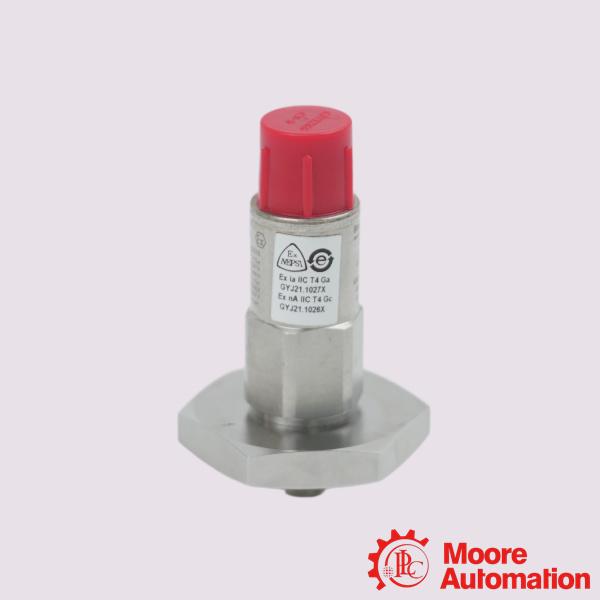

Bently Nevada 200150-09-05 Trendmaster Pro Accelerometer
| Mfr. Part Number: |
200150-09-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 200150-09-05 is a general-purpose, case-mounted piezoelectric accelerometer. It is specifically deployed to track casing vibration on rotating and reciprocating machinery via the Trendmaster Pro and Trendmaster 2000 data acquisition networks.The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
Application:
Cooling Tower Fans: Monitors unbalance, structural looseness, and blade aerodynamic faults.
Water Feed Pumps: Protects critical boiler feed systems from high vibration and cavitation.
Air Preheaters: Tracks slower-moving rotational components for bearing degradation.
Centrifugal Pumps: Tracks shaft misalignment, impeller defects, and mechanical seal wear.
Frequently Asked Questions (FAQ)
Q:What assets is this sensor typically used to monitor?
A:It is engineered for lower-frequency, structural machinery monitoring. It is commonly deployed on plant assets like electric motors, industrial pumps, fans, small compressors, and cooling tower gearboxes.
Q:What systems can this sensor connect to?
A:The 200150 series interfaces directly with the Trendmaster Pro 200200 proTIM-R and 200250 proTIM-C Transducer Interface Modules. It is backwards compatible with the older Trendmaster 2000 system via the 200100 Dual Acceleration-to-Velocity flexiTIM and 89130-01 TIM. It also links to 1900/25 and 1900/27 standalone monitors.
Q:Can I use magnetic mounts or adhesives?
A:While possible, Bently Nevada cautions that using temporary magnetic mounts or acrylic adhesives attenuates high-frequency signals. Rigid stud mounting via the NPT adapter is strongly recommended for absolute measurement stability.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200150-09-05 |
|
Mounting Stud Option |
3/8-24 to 3/4 NPT, 1-1/4 inch hex stud |
|
Sensitivity @ 80 Hz (± 12%) |
10.2 mV/(m/s2) (100 mV/g) |
|
Measurement Range |
±245 (±25) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Transverse Sensitivity |
≤7% |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ± 0.23 Vdc |
|
Temperature Range |
-40ºC to +105ºC (-40ºF to +221ºF) |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
