20-HIM-C3S | Human Interface Module

in stock#

Brand/ Manufacturer:
Dimensions:
2.2 cm x 12.4 cm x 12.6 cm
Weight:
0.1 kg
Country of Origin: :
USA
Description:
20-HIM-C3S Human Interface Module

Inquiry now

Mfr. Part Number:	20-HIM-C3S

Manufacturer:

Description:	20-HIM-C3S Human Interface Module

Full Description:	20-HIM-C3S Human Interface Module The 20-HIM-C3S is a Human Interface Module (HIM). This module is specifically a Remote-Panel mount LCD display HIM that is compatible for use with the PowerFlex 7 class drives. It has one (1) Drive Peripheral Interface (DPI) port that supports 125 Kbps or 500 Kbps transfer rate.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

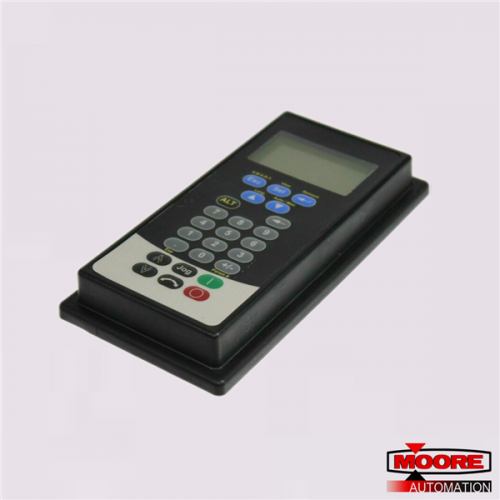

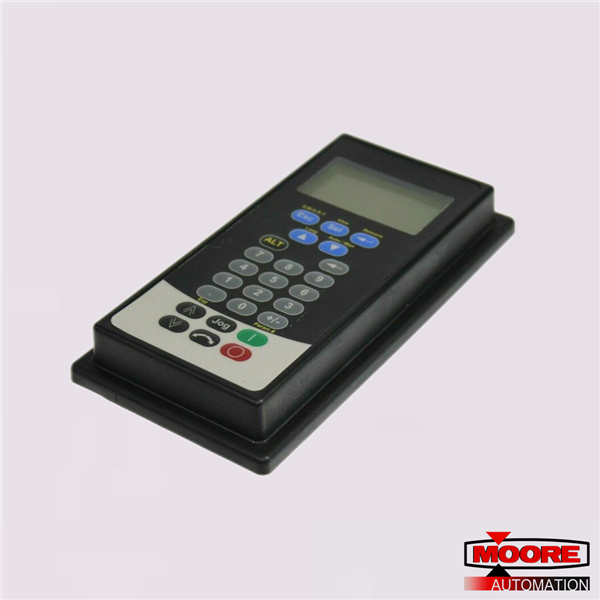

The 20-HIM-C3S is a Human Interface Module (HIM). This module is specifically a Remote-Panel mount LCD display HIM that is compatible for use with the PowerFlex 7 class drives. It has one (1) Drive Peripheral Interface (DPI) port that supports 125 Kbps or 500 Kbps transfer rate. It has a current draw of 140 milliamperes @ 12 Volts DC, supplied by the host drive.
The 20-HIM-C3S is a PowerFlex 7 class drive accessory module. This module is an IP66 (NEMA 4X/12) Human Interface Module (HIM) that features a Liquid Crystal Display (LCD) screen that is designed for remote panel mounting. This module does not require an external power supply as power is supplied locally by the host drive.

The 20-HIM-C3S comes with a Drive Peripheral Interface (DPI) which supports transfer rates of 125 Kbps or 500 Kbps. Additionally, this drive comes with a 3-meter communication cable for connection to the host drive with catalog number 1202-C30. Additionally, this module supports accessory cables such as 1202-C03; 1202-C10; 1202-C90. Other accessories available to this module are the NEMA Type 1 Bezel Kit with catalog number 20-HIM-B1; DPI cable kit with connector, tools and 100 meter cable with catalog number 1202-CBL-KIT-100M; DPI Cable connector kit with catalog number 1202-TB-KIT-SET and DPI/SCANPORT one-to-two port splitter cable with catalog number 1203-S03

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Brand
Series	PowerFlex 700
Relative humidity	5…95% noncondensing
Manufacturer	Automation
Part Number/Catalog No.	20-HIM-C3S
Module Type	Human Interface Module (HIM)
Supply Voltage	via backplane of the host drive
Backplane current draw	140 mA @ 12 VDC
Communication port	Drive Peripheral Interface (DPI)
Communication rate	125 Kbps / 500 Kbps
Protection rating	IP66 (NEMA 4X/12)
Communication cable	1202-C03; 1202-C10; 1202-C30 and 1202-C90
Operating Temperature	0…50 °C (32…122 °F)
Non-operating Temperature	-40…85 °C (-40…185 °F)
Operating Vibration	2.5 g @ 5 Hz…2 kHz
Non-operating vibration	5 g @ 5 Hz…2 kHz
Part Number	20-HIM-C3S
