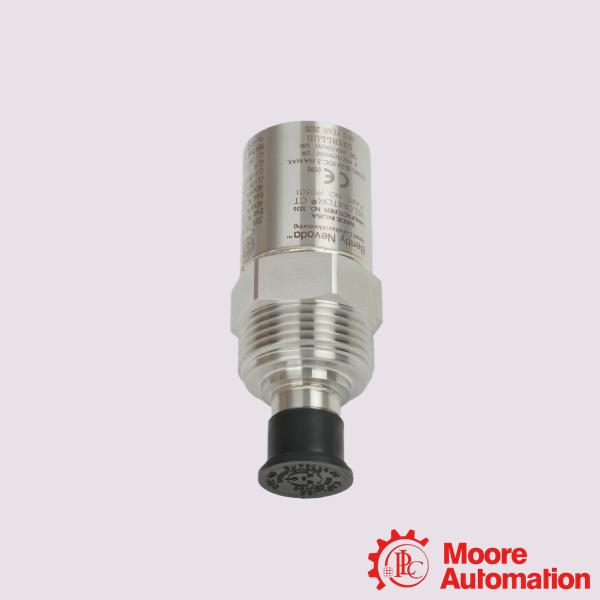

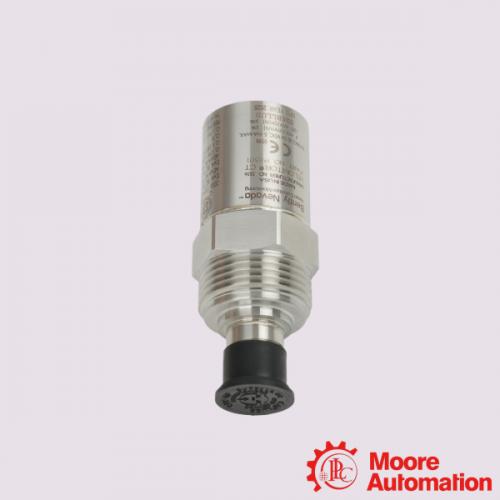

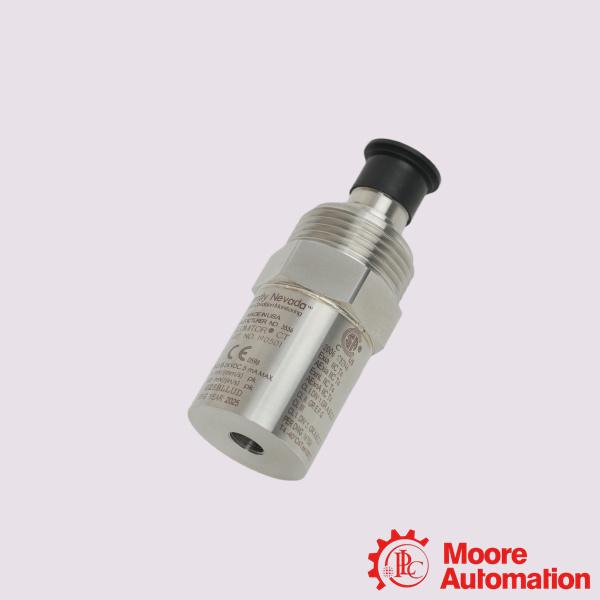

190501-99-00-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-99-00-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-99-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-99-00-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-99-00-00 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Measuring vibration amplitudes on fan blades, gearboxes, and fan motors to detect structural imbalances, looseness, or gear degradation
Air-Cooled Heat Exchangers (ACHE): Monitoring casing and bearing housing vibrations to protect slow-moving rotating equipment commonly found in petrochemical and refining operations.
Low-Speed Rotating Equipment: Detecting early signs of mechanical malfunctions (e.g., unbalance, misalignment, or blade passing frequencies) before they cause catastrophic failures
Pumps and compressors: Widely used for predictive maintenance of various industrial pumps and compressors.

Frequently Asked Questions (FAQ)

Q:What does the 190501 series monitor?
A:It is primarily used to monitor casing vibration velocity on cooling towers and air-cooled heat-exchanger fan assemblies. It is explicitly designed for slow-rotating machinery operating at or above 90 RPM (typically 100 to 300 RPM).
Q:What is the difference between a standard Velomitor and the 190501 CT?
A:The 190501 CT has a frequency response adjusted to much lower frequencies (starting at 1.5 Hz to 3.0 Hz) compared to a standard Velomitor. This allows the CT sensor to capture the low-speed vibration frequencies generated by large, slow-moving fan motors and speed reducers.

Q:What is the maximum cable length I can use?
A:The transducer supports a maximum cable length of up to 305 m (1,000 ft) without significantly compromising signal integrity.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-99-00-00
Connection Option	MIL-C-5015 connection interface
Agency Approval Option	No Approvals
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
