190501-24-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:

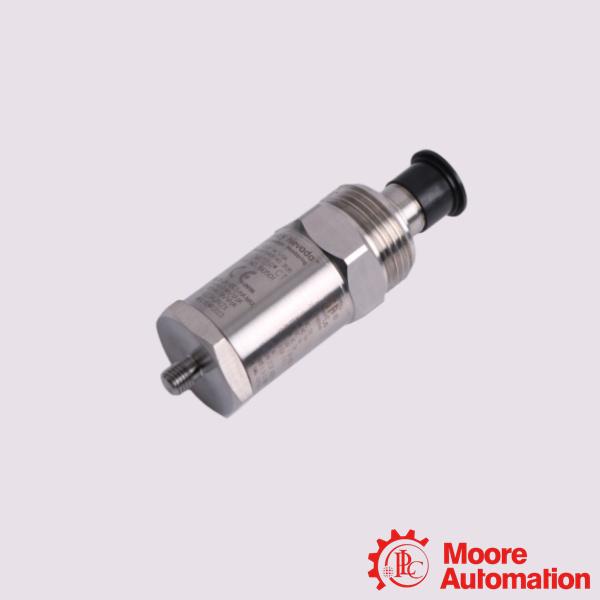

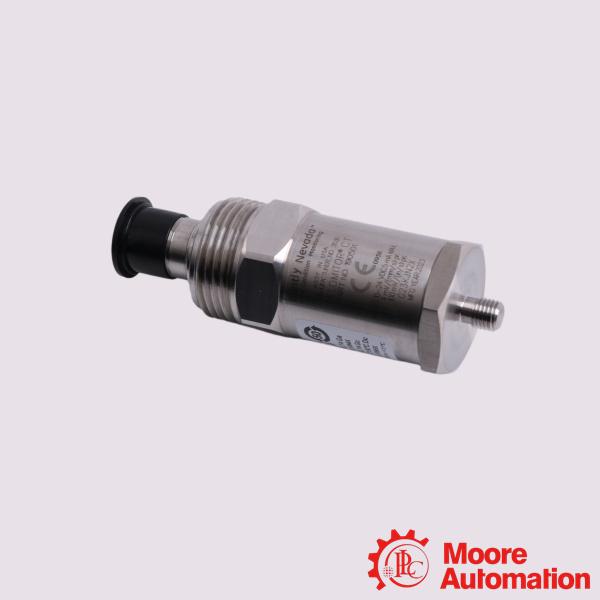

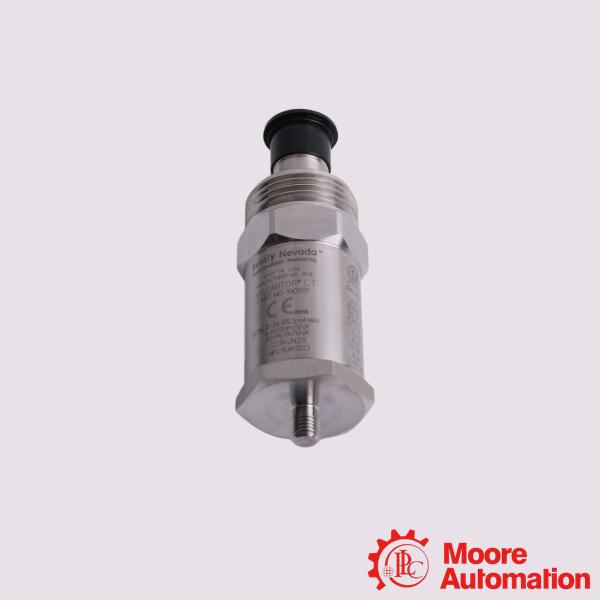

Bently Nevada 190501-24-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-24-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-24-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-24-99-00 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitors the mechanical health of vibration-prone cooling tower fan assemblies.
Air-Cooled Heat Exchangers: Tracks vibration velocities on heavy-duty industrial heat-exchanger fans.
Low-Speed Rotating Equipment: Designed specifically for machines operating at or above 90 rpm (typically between 100 to 300 rpm).
Motor & Gearbox Protection: Detects casing vibration amplitudes and frequencies generated by driving fan motors and speed reducers.

Frequently Asked Questions (FAQ)

Q:Where can I find the official product documentation?
A:You can review all physical and electrical operating limits in the official Bently Nevada 190501 Velomitor CT Transducer Datasheet.
Q:How do I test or calibrate this transducer?
A:Calibration is typically performed by mounting the sensor onto a portable vibration shaker (like a model 9210D), performing a low-frequency sweep (e.g., 120 to 600 cpm), and verifying the 100 mV/in/s output across the spectrum.

Q:Can this sensor be used in hazardous environments?
A:Because this specific model (-00 safety certification option) lacks standard hazardous area approvals, it is rated for standard, non-classified locations. If you require hazardous area approvals, you will need a suffix model (e.g., -01, -04, -CN).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-24-99-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.25-in 11.5 NPT
Connection Option	Unit with included 32-foot cable
Agency Approval Option	No Approvals
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%.
Transverse Response	Less than 5% of the axial sensitivity.
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F).
Storage Temperature	-40°C to +100°C (-40°F to +212°F).
Shock Limit	5000 g pk, maximum.
