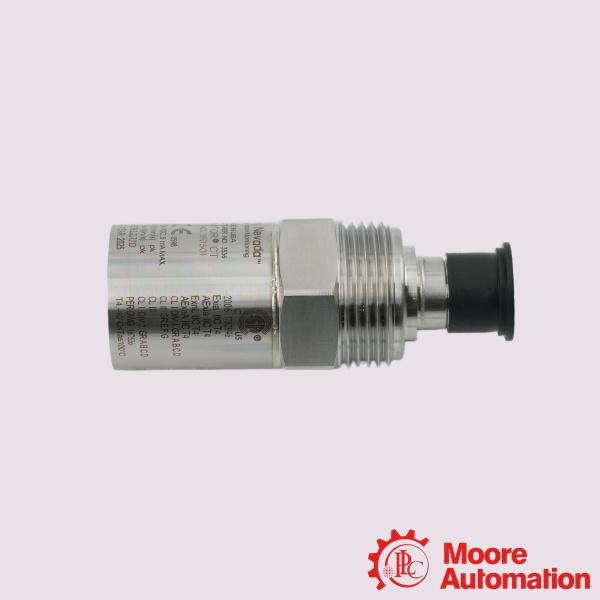

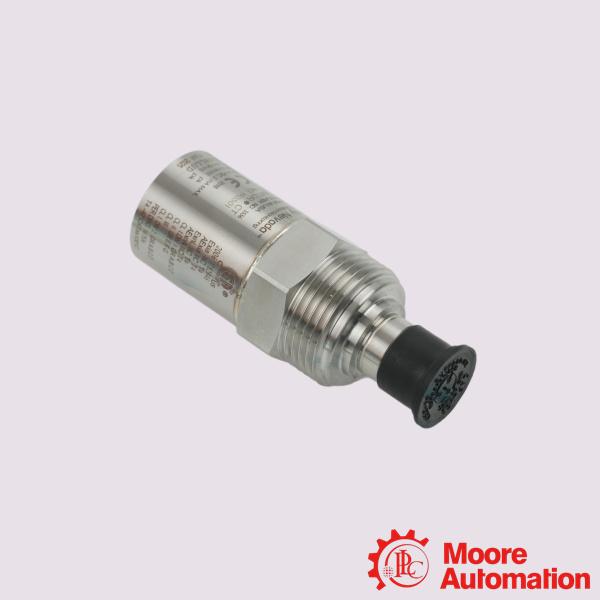

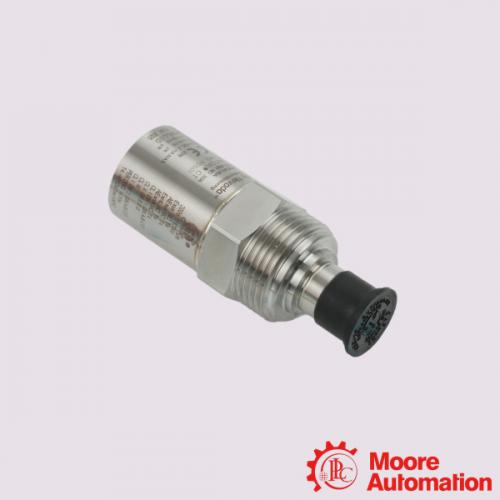

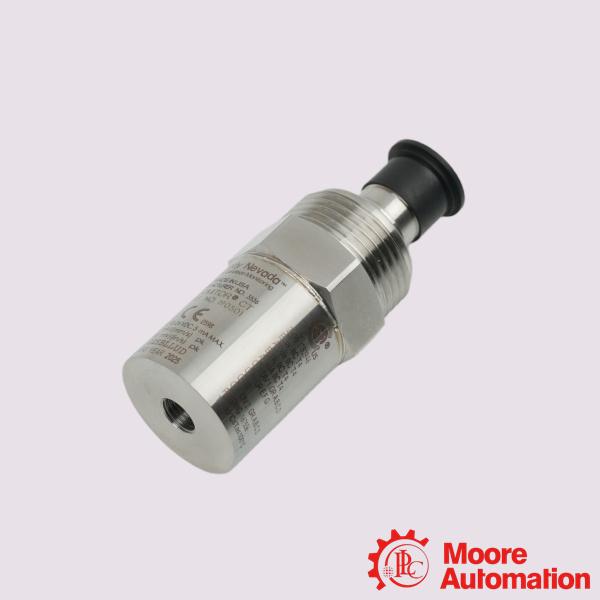

190501-24-99-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-24-99-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-24-99-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-24-99-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-24-99-CN Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas / Petrochemical Refineries: Deployed on critical heat exchangers and cooling systems located within explosive gas zones
Power Generation Plants: Tracks cooling tower and condenser fan vibration health to prevent structural collapses or sudden plant shutdowns
Chemical Processing: Protects aggressive chemical cooling loops where corrosive or hazardous environments require robust stainless-steel sensor enclosures.
Pulp & Paper / Heavy Manufacturing: Monitors low-speed processing machinery and large plant infrastructure fans prone to imbalance.

Frequently Asked Questions (FAQ)

Q:Can I use this with the Bently Nevada Orbit 60 series?
A:Yes, but with care. According to the Orbit 60 Dynamic Input Modules Datasheet, while standard Velomitors prefer Positive Transducer Input (PVT) modules, the 190501 Velomitor CT should be mapped to PAV modules unless power limits are explicitly verified.
Q:How important is mounting orientation?
A:Extremely. It must be carefully flush-mounted to the bearing housing or casing. Improper mounting heavily dampens frequency response or introduces false signals.

Q:What does the -99 option mean for replacement workflows?
A:Because option 99 dictates an integrated 32-foot cable, you must replace both the sensor body and its hardwired cable line up to the junction box at the same time

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-24-99-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.25-in 11.5 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%.
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
