190501-24-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x8.3x3.1cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

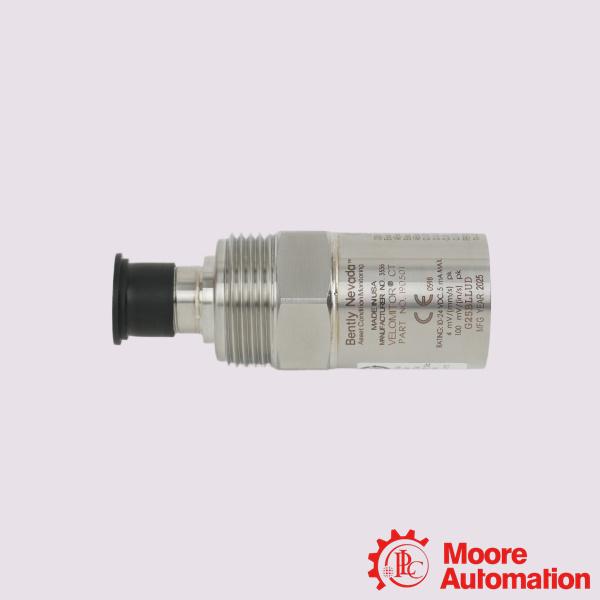

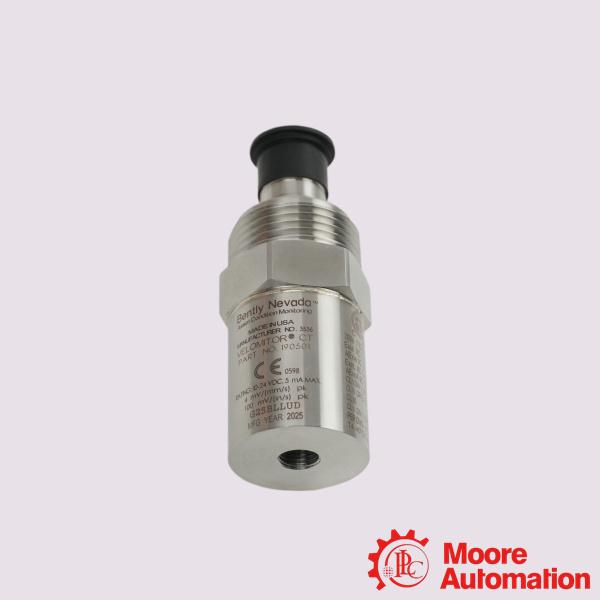

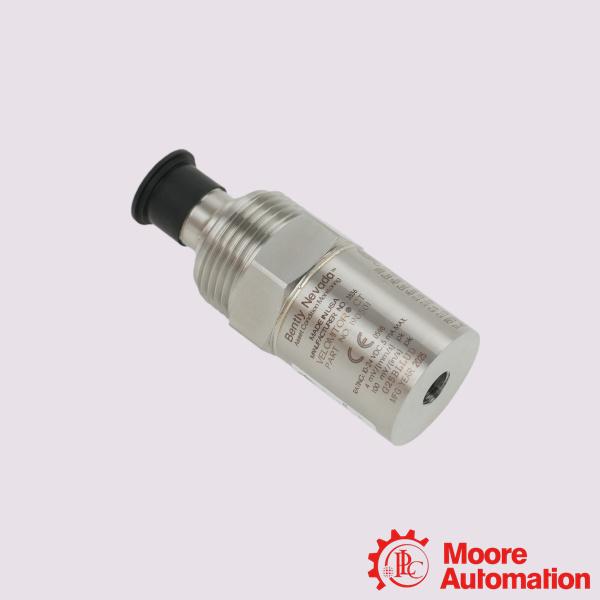

Bently Nevada 190501-24-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-24-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-24-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-24-00-CN Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitors casing vibration on large fan assemblies.
Air-Cooled Heat Exchangers: Tracks vibration on fan assemblies running at or above 90 rpm (typically 100 to 300 rpm).
Motor & Gearbox Units: Measures fan motor and speed reducer vibrations.
Oil, Gas, and Power Generation: Used across hydrocarbon processing and power plants to prevent equipment failure.

Frequently Asked Questions (FAQ)

Q:How does a Velomitor CT differ from a standard Velomitor?
A:Standard Velomitor sensors filter out very low vibrations. The CT (Cooling Tower) variant modifies the internal electronics to accurately capture slower vibration frequencies (down to 1.5 Hz), which are unique to the operations of large cooling towers and air-cooled heat exchangers.
Q:Which monitoring systems does this transducer connect to?
A:It interfaces with Bently Nevada’s standard vibration monitoring frameworks, including the 3500 Machinery Protection System and the 1900/65A General Purpose Equipment Monitor.

Q:What is the proper way to mount this sensor?
A:It must be stud-mounted directly to the fan bearing housing or speed reducer casing. The mounting surface must be clean, flat (33 mm minimum diameter), and tightened to a torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Incorrect torque can distort low-frequency signals and yield invalid data.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-24-00-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.25-in 11.5 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
