190501-23-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

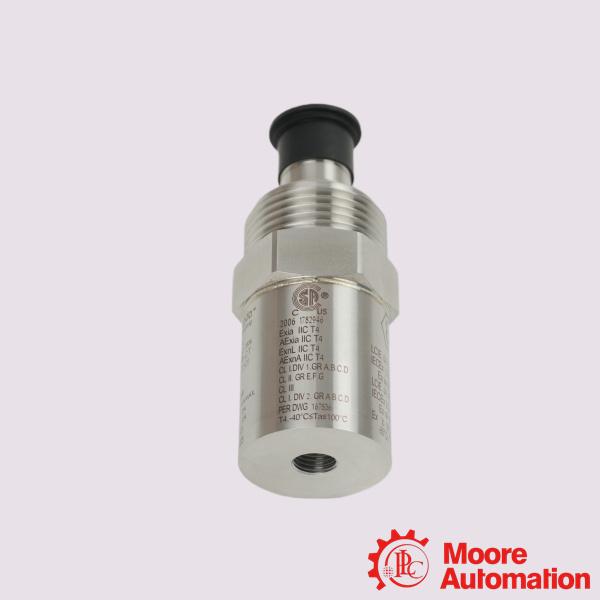

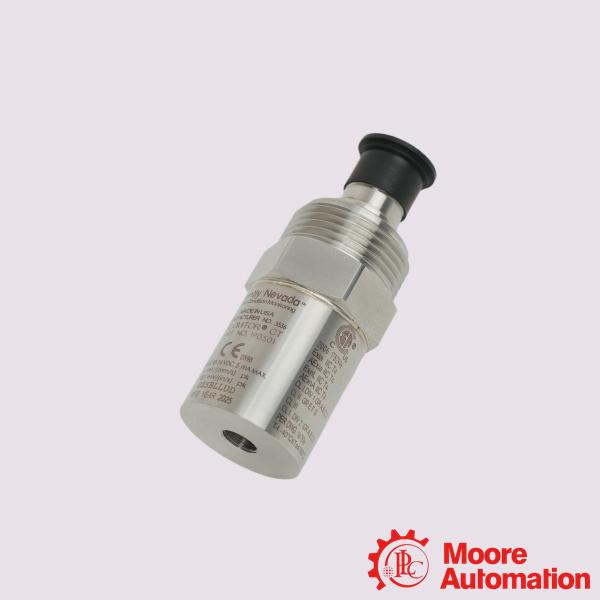

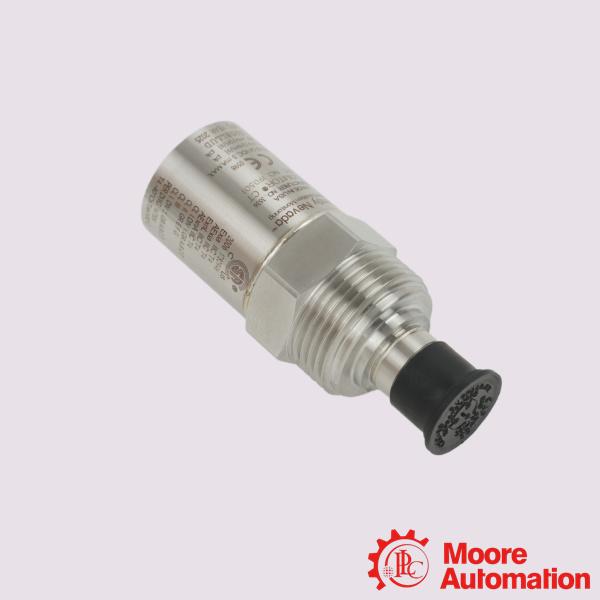

Bently Nevada 190501-23-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-23-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-23-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-23-00-CN Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitoring structural and gearbox vibrations.
Air-Cooled Heat Exchangers: Ensuring fan assemblies are balanced and operating correctly.
Fan Assemblies: Monitoring setups running at or above 90 rpm.
Low-Speed Rotating Equipment: Provides reliable vibration tracking where standard industrial accelerometers lack sensitivity at very low cycles per minute.

Frequently Asked Questions (FAQ)

Q:What is the primary use of the 190501-23-00-CN?
A:It is used to continuously monitor machine case vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that typically operate at 90 rpm or higher. It measures vibration amplitudes generated by fan motors and speed reducers.
Q:What is the frequency range of the Velomitor CT?
A:It is a low-frequency transducer, generally designed to operate accurately between 3.0 Hz to 900 Hz with no degradation of signal.

Q:How should the transducer be installed?
A:The accelerometer must be firmly installed directly on the bearing housing or machine casing. Improper mounting or undertightening can decrease the transducer's amplitude and frequency response, leading to false vibration readings.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-23-00-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.0-in 11.5 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
