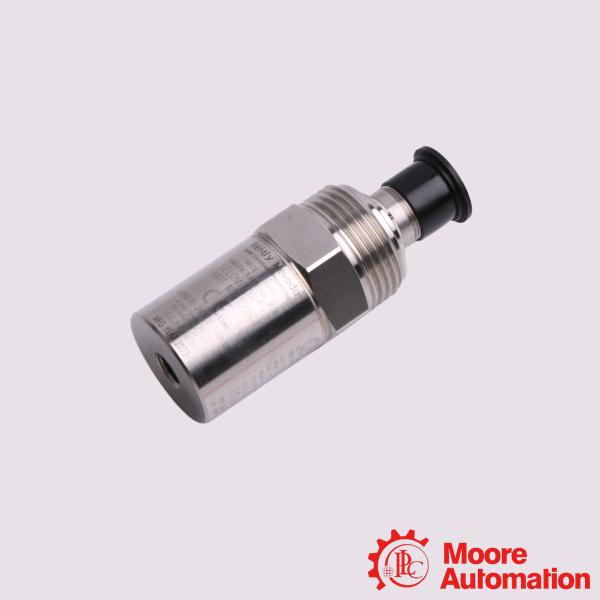

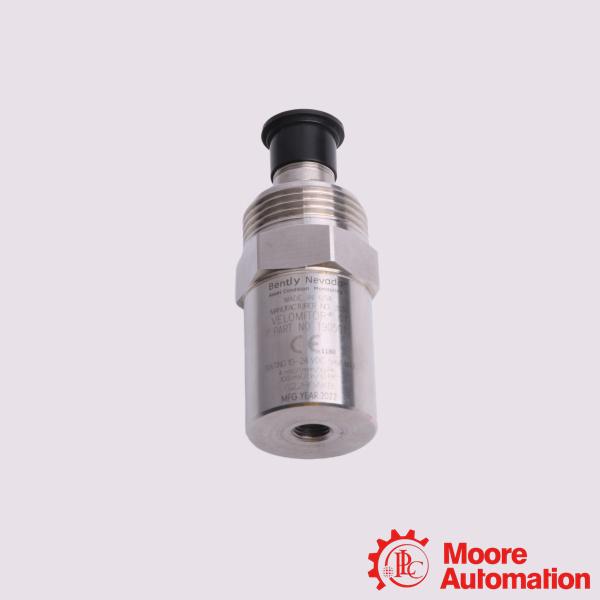

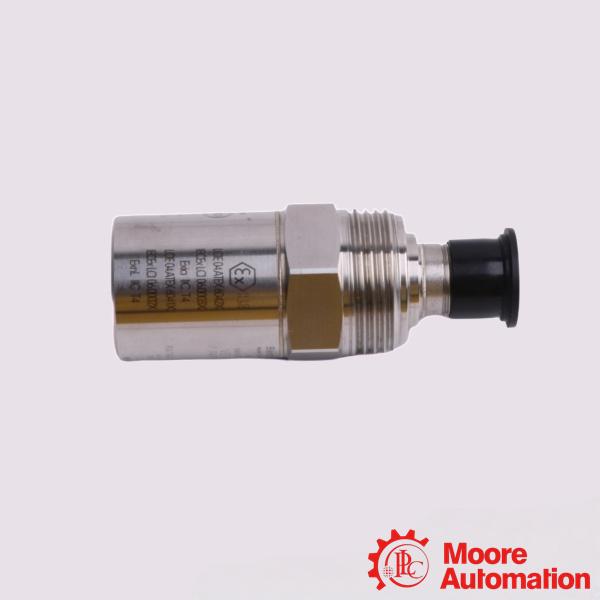

190501-23-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-23-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-23-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-23-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-23-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Petrochemical & Oil Refining: Installed on critical heat-exchanger banks and processing unit cooling loops.
Chemical Processing Plants: Monitored via system racks like the Bently Nevada 3500 Series to keep hazardous vapors from matching with unmonitored mechanical heat or sparks.
Power Generation Facilities: Deployed on water-treatment and steam-condensing cooling tower systems to enforce machinery protection.
Cooling Tower Fan Assemblies: It explicitly measures vibration on fans running as low as 90 RPM (typically 100 to 300 RPM), detecting structural faults before they cause tower failure

Frequently Asked Questions (FAQ)

Q:Can it be installed in hazardous environments?
A:Yes. The 04 suffix ensures multiple multi-agency approvals for hazardous locations. The casing material is built from rugged, corrosion-resistant 316L stainless steel to withstand the wet, corrosive environment of a cooling tower.
Q:What are the cable specifications?
A:The "-99" in the model number indicates a fixed installation without quick-disconnect capability. The maximum continuous cable length is 91.44 meters (300 feet). For longer distances, cable splicing or connectors are required.

Q:What are the mounting thread specifications?
A:The "-23" in the model number indicates a 3/8-24 UNF mounting thread with a thread depth of 8.9 mm (0.35 inches). The sensor body has a 31.8 mm (1.25 inch) hexagonal cross-section.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-23-99-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.0-in 11.5 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Amplitude Linearity	±2% to 63.5 mm/s pk (2.5 in/s pk)
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
