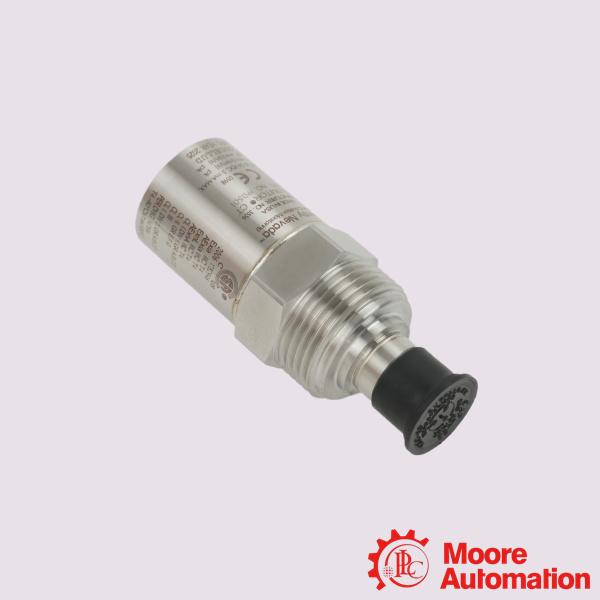

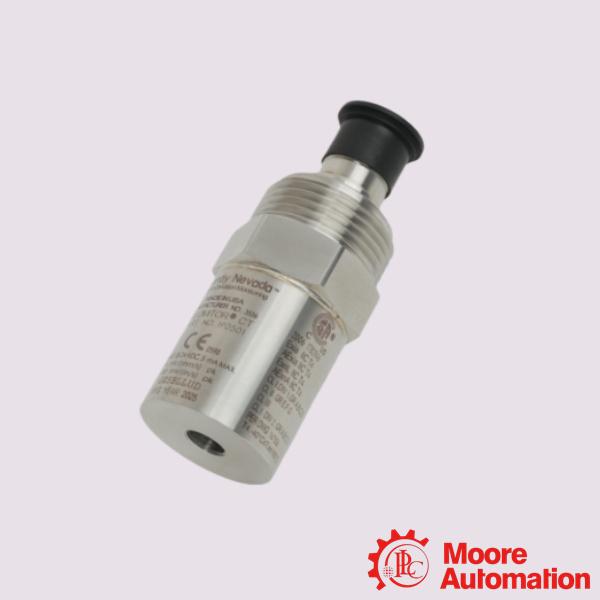

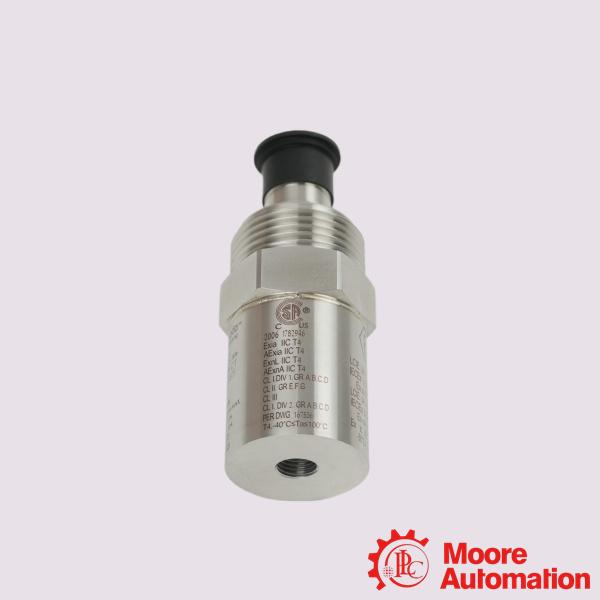

190501-03-99-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-03-99-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-03-99-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-03-99-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-03-99-CN Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Tower: Measures the casing vibration velocity of cooling tower fan assemblies, suitable for low-speed large fans with speeds ≥90 RPM (typically 100–300 RPM).
Air-Cooled Heat Exchanger: Monitors the casing vibration of air cooler fans, detecting faults caused by blade imbalance, bearing wear, etc.
Large Low-Speed Rotating Machinery: Monitors the casing vibration of any low-speed rotating equipment with speeds above 90 RPM.
Fan Motor Monitoring: Simultaneously measures the vibration frequency generated by the fan motor and its reduction gear.

Frequently Asked Questions (FAQ)

Q:What is the maximum cable length? Can it be extended?
A:The maximum continuous cable length is 91.44 meters (300 feet). For longer distances, cable splicing or a connector must be added to the sensor end.
Q:What is the operating temperature range of this model?
A:The sensor body can operate over a wide temperature range, but the calibration parameters guarantee accuracy only within the range of +20°C to +30°C. Use outside this range may result in reading deviations or machine protection failure.

Q:Can this sensor be used in high-speed equipment?
A:Although the frequency response can reach 1,000 Hz (60,000 CPM), the Velomitor CT is designed for low-speed equipment. For high-speed equipment, it is recommended to use the standard Velomitor sensor for better high-frequency performance and dynamic range.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-03-99-CN
Mounting Hardware Option	Adhesive Stud 3/8-in 24
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range.
Transverse Response	Less than 5% of the axial sensitivity.
Amplitude Linearity	±2% to 63.5 mm/s pk (2.5 in/s pk)
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F).
Storage Temperature	-40°C to +100°C (-40°F to +212°F).
Shock Limit	5000 g pk, maximum.
