190501-21-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:

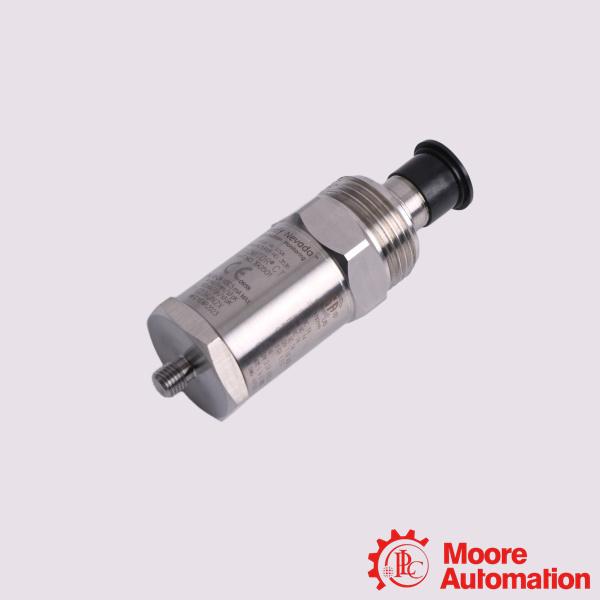

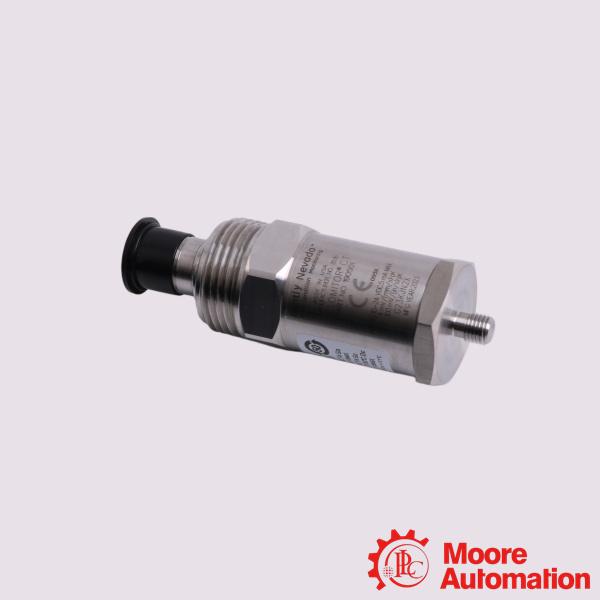

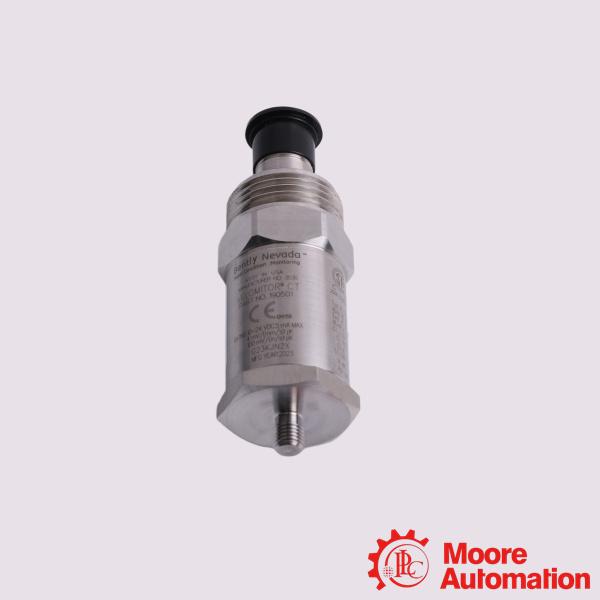

Bently Nevada 190501-21-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-21-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-21-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-21-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Tower Fan Assemblies: Tracking structural and casing vibration on low-speed cooling tower rotors to prevent catastrophic structural failures
Air-Cooled Heat Exchangers (Fin-Fans): Monitoring the large, low-RPM fan blades and assemblies common in petrochemical plants and refineries.
Industrial Speed Reducers & Gearboxes: Capturing low-frequency vibration mechanical anomalies (such as misalignments or gear mesh faults) linked to low-speed output shafts.
Large Fan Motors: Continually tracking rotor and casing vibration transmitted from slow-running drive motors.

Frequently Asked Questions (FAQ)

Q:How do you verify or calibrate this sensor?
A:Because it is a low-frequency sensor, it must be verified using a portable shaker calibrator capable of stable lower-frequency sweeps (such as testing down to 120 or 90 cpm).
Q:What is the maximum recommended cable length?
A:The internal electronics support an unamplified cable run up to a maximum length of 305 meters (1,000 feet) back to the monitoring system.

Q:What torque should be applied during installation?
A:When mounting the base or its adapter to the machine housing, you must apply a mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Over-torquing or improper mating surfaces can introduce high-frequency noise or signal distortion.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-21-99-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/2-in 14 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Amplitude Linearity	±2% to 63.5 mm/s pk (2.5 in/s pk)
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
