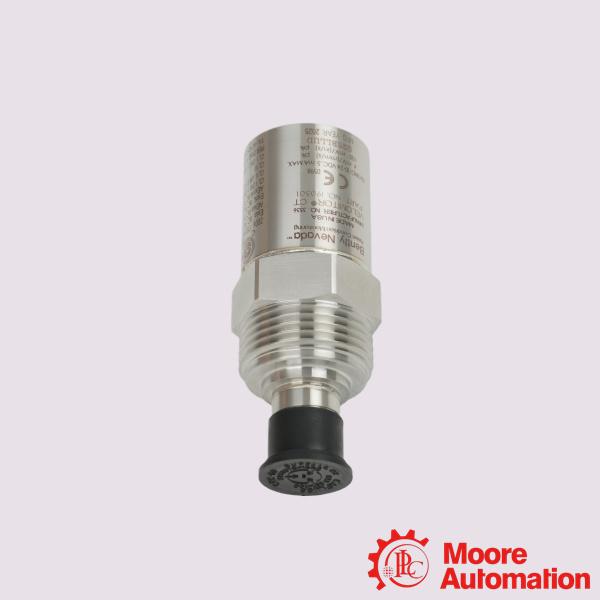

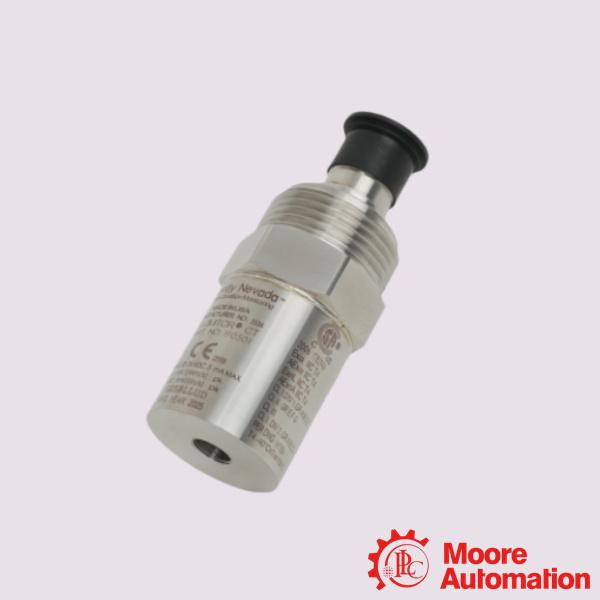

190501-23-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x8.3x3.1cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-23-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-23-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-23-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-23-99-00 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitors fan assemblies and gearboxes on large industrial cooling towers where speeds are typically around 100 to 300 RPM.
Air-Cooled Heat Exchangers : Used heavily in oil & gas, petrochemical, and power generation plants to track vibration on low-speed fin-fan coolers.
Petrochemical Plants: Protects rotating equipment in hazardous and demanding environments.
Process Manufacturing: Helps detect common malfunctions like rotor unbalance, mechanical looseness, and misalignment on heavy-duty, low-speed fans.

Frequently Asked Questions (FAQ)

Q:What is the sensitivity of this sensor?
A:The sensitivity is 4 mV/(mm/s) pk, meaning a peak velocity of 4 millivolts per millimeter per second.
Q:What is the operating temperature range of the sensor?
A:The ambient temperature range is -55°C to +121°C (-67°F to +250°F), within which measurement accuracy is guaranteed.

Q:What conditions are required for using this model in hazardous areas?
A:The 190501-23-99-00 is ATEX/IECEx certified (Ex ia IIC T4 Ga). When used in Zone 0/1, it must be connected to equipment that meets intrinsic safety requirements and use Category A or Category B cables conforming to EN 60079-25. When used in Zone 2, the power supply electrical parameters must not exceed the specified values.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-23-99-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.0-in 11.5 NPT
Connection Option	Unit with included 32-foot cable
Agency Approval Option	No Approvals
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
