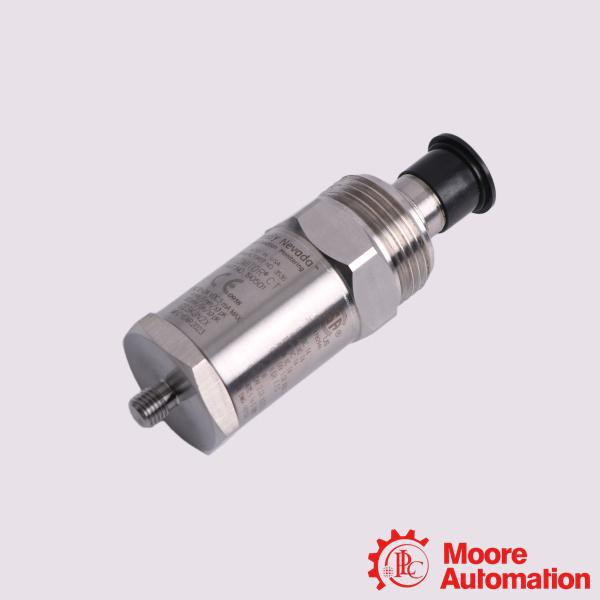

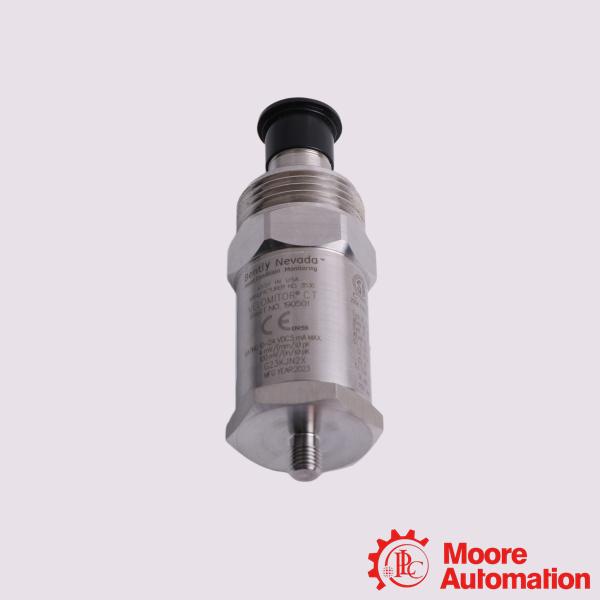

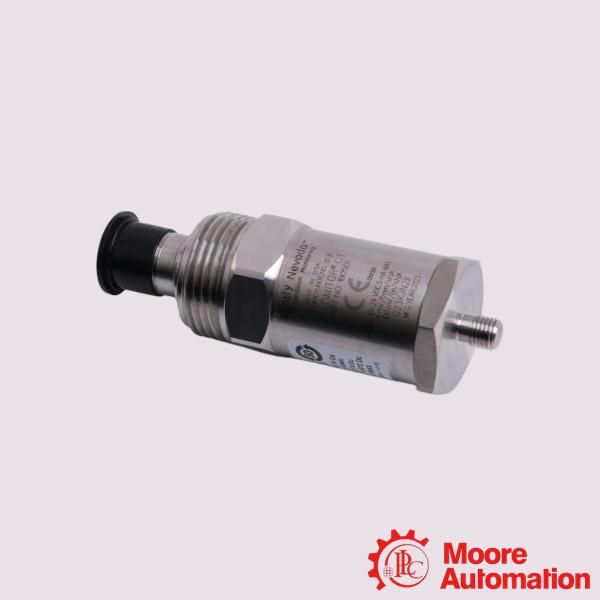

190501-20-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-20-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-20-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-20-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-20-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Power Generation Stations: Used on massive heat-rejection cooling systems to ensure structural integrity and prevent catastrophic fan blade delamination or failure.
Slow-Speed Industrial Pumps: Applied to water and wastewater treatment plants to monitor casing vibrations on massive, low-RPM pump systems.
Petrochemical and Refining Plants: Implemented on critical cooling infrastructure where explosive gas protection is required, leveraging the -04 multiple agency safety approvals option
Cooling Tower Fan Assemblies: Monitored to detect faults like unbalance, misalignment, or mechanical looseness in large industrial cooling towers.

Frequently Asked Questions (FAQ)

Q:What is its frequency response?
A:The device has an adjusted downward range to catch slow-moving fans. It delivers ± 1.0 dB accuracy from 3.0 Hz to 900 Hz and ± 3.0 dB from 1.5 Hz to 1.0 kHz. This allows it to monitor fans running as low as 90 rpm.
Q:Can it be mounted in any orientation?
A:Yes. It can be installed at any mounting angle or orientation without affecting performance

Q:What is the maximum supported cabling length?
A:It supports a maximum cable run up to 305 meters (1,000 feet) back to the monitoring system

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-20-99-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 18 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Amplitude Linearity	±2% to 63.5 mm/s pk (2.5 in/s pk)
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
