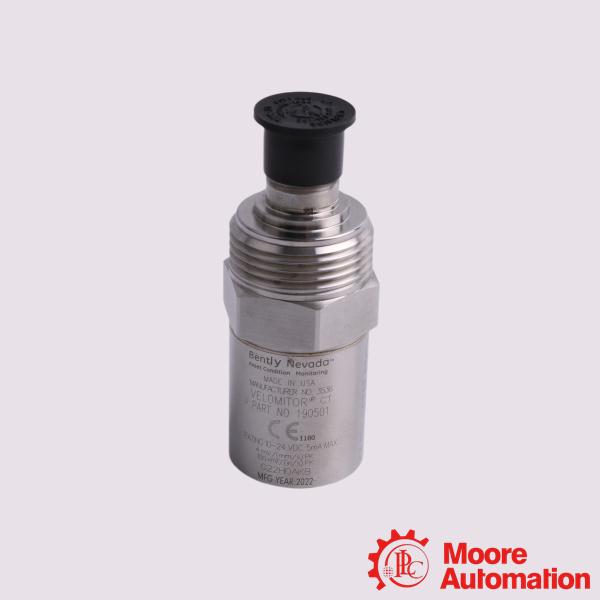

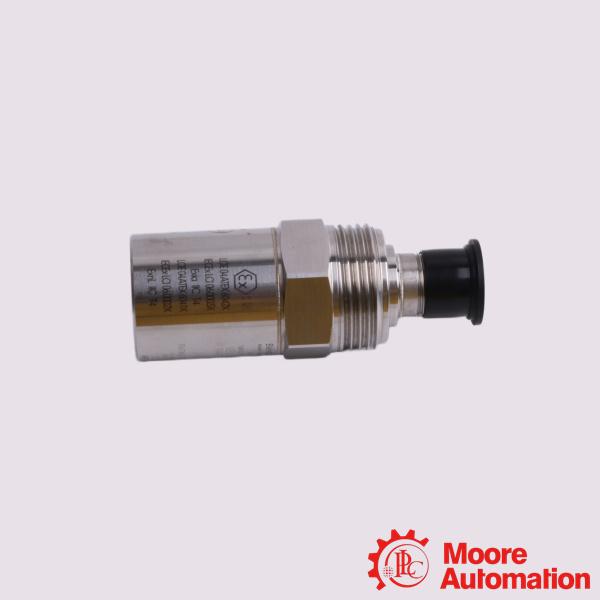

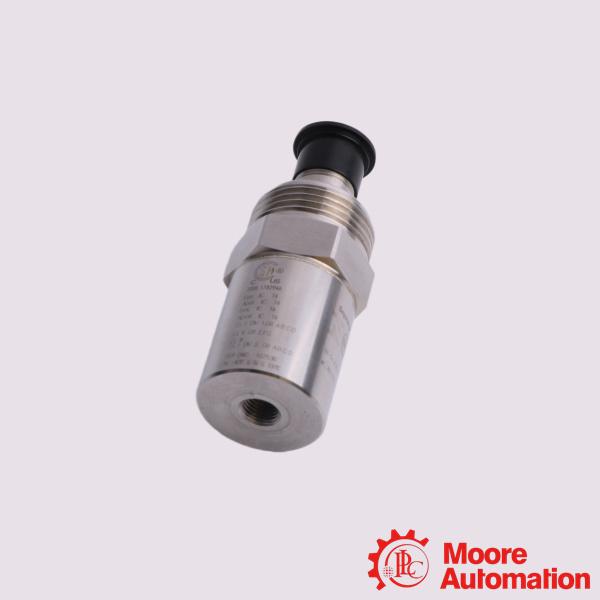

190501-19-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
,8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-19-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-19-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-19-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-19-99-00 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitors slow-moving cooling tower fans, gearboxes, and motors operating down to 90 rpm.
Air-Cooled Heat Exchangers: Tracks vibration on large Fin-Fan units common in refineries and chemical plants.
Paper Mills: Monitors slow-velocity roller bearings and suction roll assemblies.
Water Treatment Plants: Used on large, low-speed wet well pumps, agitators, and mixing equipment.

Frequently Asked Questions (FAQ)

Q:How does a Velomitor differ from a traditional moving-coil velocity sensor?
A:Traditional velocity sensors rely on a moving coil suspended by springs, which suffers from mechanical wear and tear over time. The Velomitor CT is a solid-state, piezoelectric accelerometer with internal integration circuitry that converts acceleration into a clean velocity output, resulting in zero moving parts to wear out.
Q:What does "CT" stand for in the Velomitor CT?
A:CT stands for Cooling Tower. While standard velocity sensors are tuned for higher speeds, the 190501 Velomitor CT is specifically designed to handle the low-frequency vibrations generated by slow-moving cooling tower fans and air-cooled heat exchangers (ACHEs).

Q:What is the maximum vibration amplitude it can measure?
A:The sensor has a peak velocity range of 63.5 mm/s pk (2.5 in/s pk). High-frequency vibrations exceeding 10g peak above 1 kHz can reduce this range.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-19-99-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/4-in 18 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
