190501-19-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:

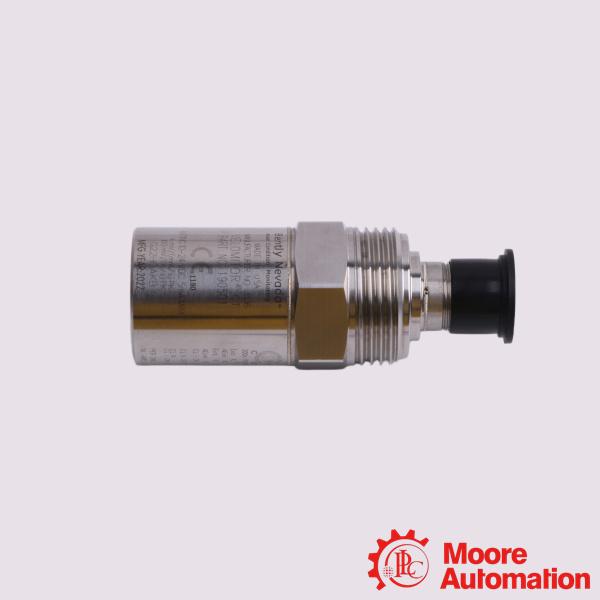

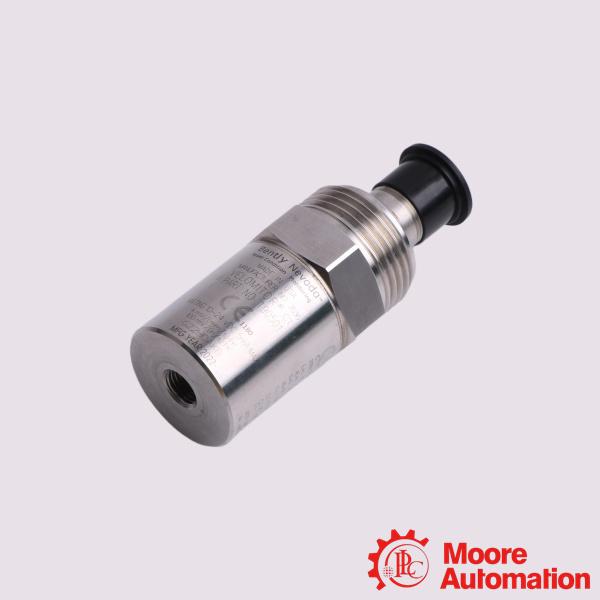

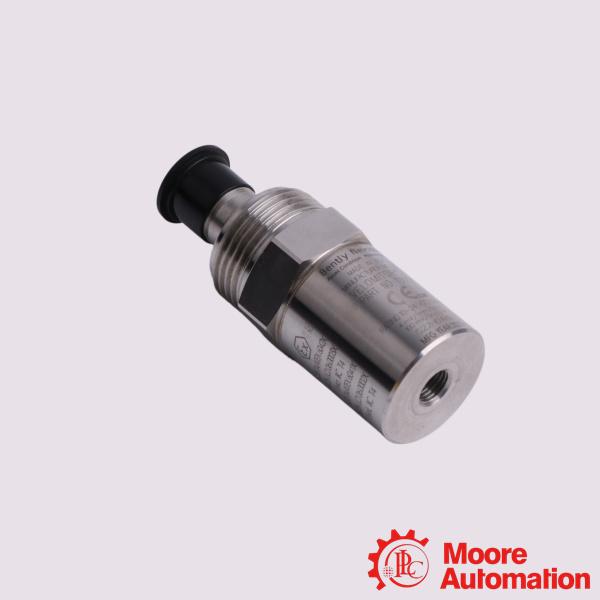

Bently Nevada 190501-19-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-19-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-19-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-19-99-01 is the Bently Nevada Velomitor CT speed sensor. The "19" indicates that the electrical interface option is an integrally armored cable with a quick-disconnect connector. This sensor uses piezoelectric velocity sensing technology and is designed for low-speed rotating equipment such as cooling tower and air-cooled heat exchanger fans. It is suitable for speeds of 90 rpm (1.5 Hz) and above, and can measure the vibration frequency generated by the fan body, motor, and reduction gears. This model features a quick-disconnect function, allowing disassembly without rotating the sensor while maintaining the cable connection for easy field maintenance. Standard stud mounting hardware is included for field fixation.

Application:

Power & Petrochemical Plants: Protects critical structural assemblies from fatigue.
Water Treatment Plants: Safeguards large pumps and water aeration fans.
Air-Cooled Heat Exchangers: Tracks vibration on Fin-Fan air coolers.
Cooling Towers: Monitors large induced-draft and forced-draft fans.Air-Cooled Heat Exchangers: Tracks vibration on Fin-Fan air coolers.

Frequently Asked Questions (FAQ)

Q:What does the 190501 Velomitor CT measure?
A:It measures casing velocity in applications where low-frequency vibration monitoring is critical. It is built to accurately capture rotor vibrations that transfer to the machine casing.
Q:Can the integral cable be extended?
A:Yes, the maximum allowable cable length between the Velomitor CT and the monitoring system is 305 m (1,000 ft).

Q:Where is this sensor usually mounted?
A:It must be securely installed on the bearing housing or machine casing. Improper installation can reduce frequency response and produce invalid data. It requires a specific torque, typically around 4.5 N-m ± 0.6 N-m.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-19-99-01
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/4-in 18 NPT
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
