190501-19-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

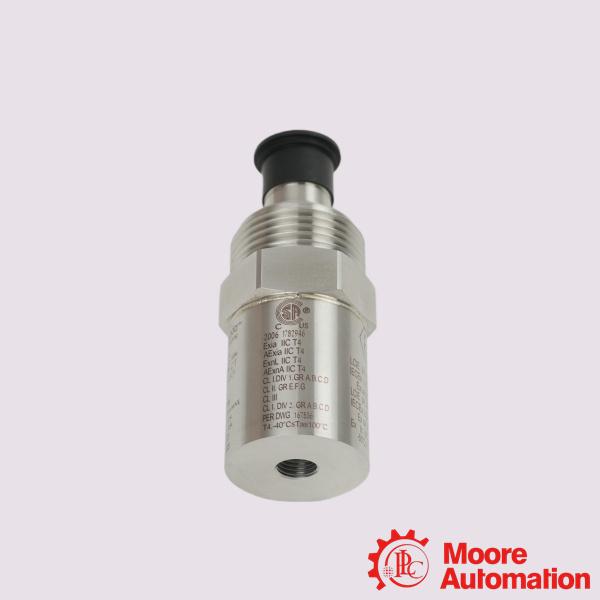

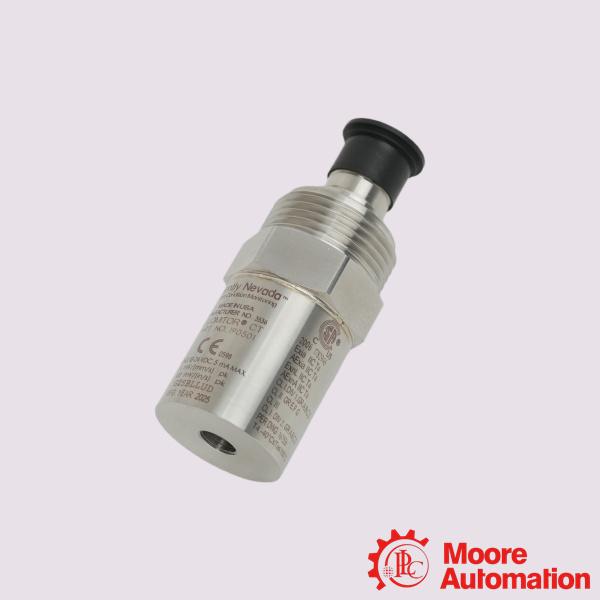

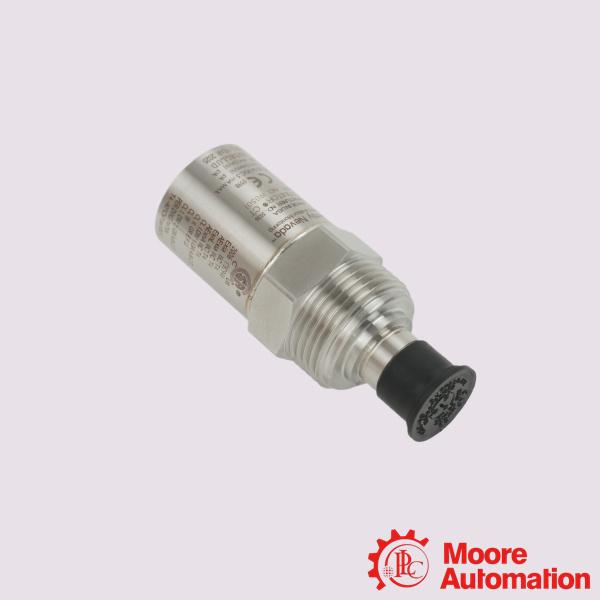

Bently Nevada 190501-19-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-19-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-19-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-19-00-CN is a versatile and precise sensor designed for industrial applications. Offering reliable measurement capabilities and robust construction, it’s approved for use in hazardous environments. This sensor is ideal for level measurement in various industries, including chemical processing, oil and gas, and manufacturing.

Application:

Paper & Pulp Machinery: Monitoring wet-end machinery sections that rotate at low speeds and endure constant moisture.
Industrial Water Pumps: Assessing structural vibration on large vertical or horizontal water pumps.
Low-Speed Gearboxes: Detecting imbalances, misalignment, and structural looseness in speed reducers running as low as 90 rpm.
Air-Cooled Heat Exchangers (Fin-Fans): Tracking mechanical defects in air-cooler fan assemblies used in refineries and chemical plants.

Frequently Asked Questions (FAQ)

Q:How does it differ from the standard 330500 Velomitor?
A:The standard 330500 Velomitor monitors machinery running above 240 rpm (4.0 Hz). The 190501 CT variant features a lowered frequency response to track slow-moving fans running down to 90 rpm (1.5 Hz).
Q:What is its core vibration measurement capability?
A:It tracks casing vibration velocity with a standard sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%.

Q:Can it withstand water spraying on a cooling deck?
A:Yes. The body is built from 316L stainless steel and is designed for 100% condensing, non-submerged humidity limits. It cannot be fully submerged under water.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-19-00-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/4-in 18 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
