190501-18-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:

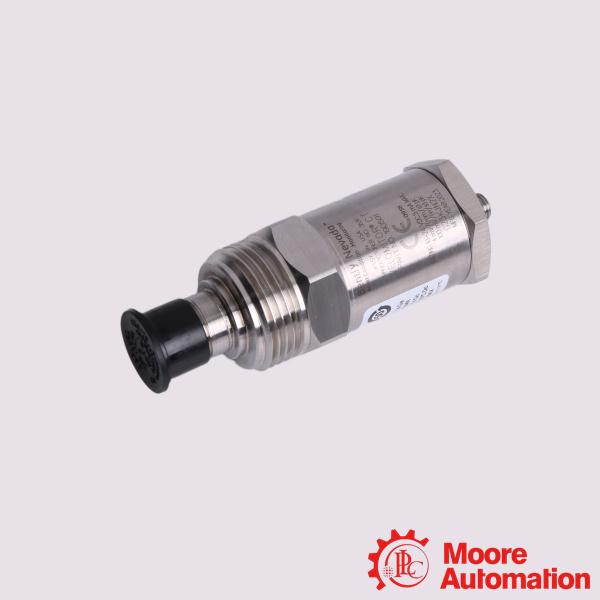

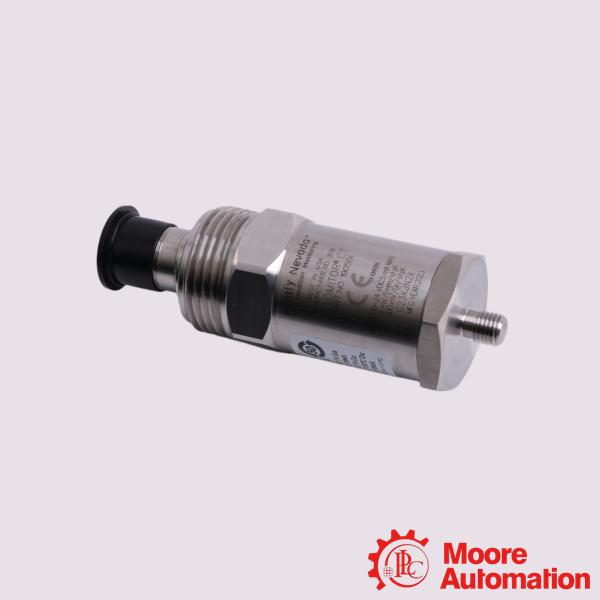

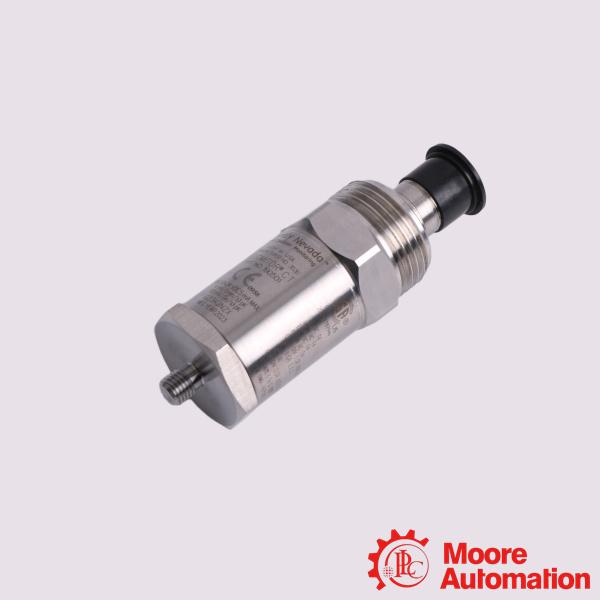

Bently Nevada 190501-18-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-18-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-18-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-18-99-00 is a Bently Nevada Velomitor CT speed sensor. This sensor utilizes piezoelectric velocity sensing technology and is specifically designed for low-speed rotating equipment such as cooling tower and air-cooled heat exchanger fans. It is suitable for speeds of 90 rpm (1.5 Hz) and above, and can measure the vibration frequency generated by the fan body, motor, and reduction gears.

Application:

Industrial Cooling Towers: Monitoring structural casing and gearboxes of large cooling fans used in petrochemical plants, oil refineries, and power generation facilities.
Air-Cooled Heat Exchangers: Tracking the lower-frequency mechanical imbalances, structural misalignments, or motor defects common in heavy industrial HVAC and process-cooling fan assemblies.
Slow-Speed Industrial Fans & Blowers: Defending any general-purpose large industrial draft fan operating down to 90 RPM.
Low-Speed Rotating Machinery Housings: Serving as an overall machinery protection sensor when coupled with diagnostic systems like the Bently Nevada 3500 series.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this sensor?
A:This sensor is a low-frequency piezo-velocity transducer designed to measure casing vibration velocity. It is explicitly optimized for cooling tower fans and air-cooled heat-exchanger fan assemblies that operate at slow speeds down to 90 RPM.
Q:Can it be used in explosive or hazardous environments?
A:No. The "-00" suffix at the end of this specific part number designates that this unit has no hazardous area agency certifications. If you require ATEX, IECEx, or CSA intrinsic safety approvals, you must source variants ending in options like -01, -02, or -CN.

Q:What type of cabling does it use?
A:The sensor features a twisted, shielded pair cable with a yellow Teflon jacket (20 AWG) that is splash-proof and completely isolated, terminated with a blunt cut at the monitor end.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-18-99-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/2-in 13
Connection Option	Unit with included 32-foot cable
Agency Approval Option	No Approvals
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
