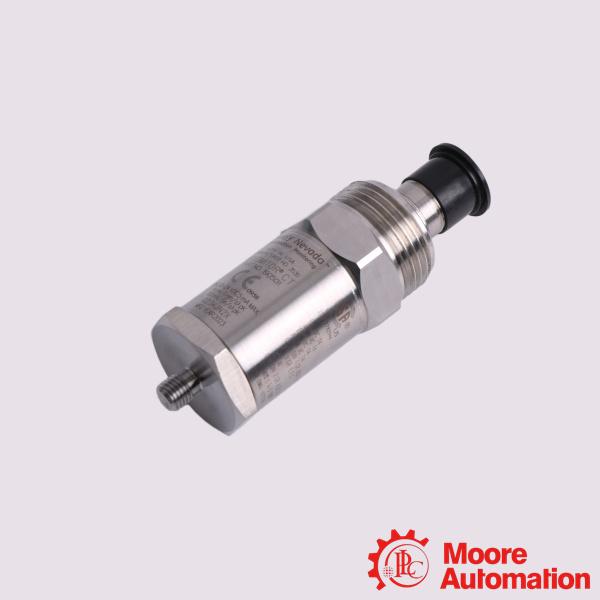

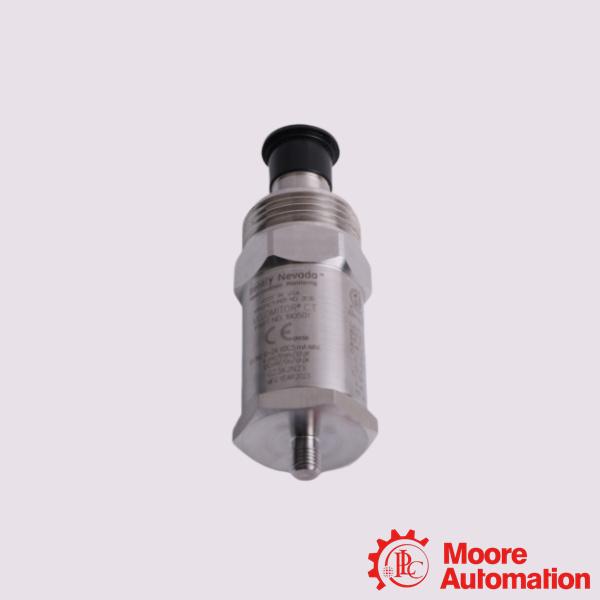

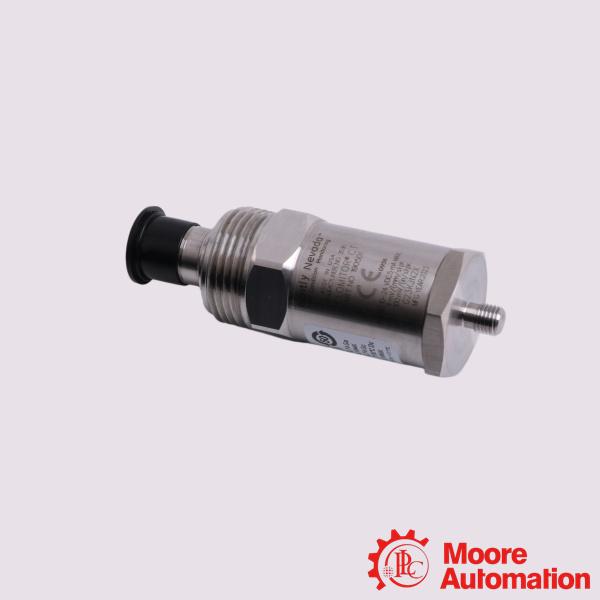

190501-18-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-18-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-18-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-18-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-18-00-CN refers to a specific variant of the Bently Nevada Velomitor CT (Cooling Tower) Velocity Transducer. It is designed for low-frequency vibration monitoring and measures casing velocity in industrial machinery.The "-18-00-CN" designation specifies the unit's measurement range and certification requirements, with the suffix typically denoting approvals tailored for the Chinese market.

Application:

Industrial Cooling Towers: Used across power plants, petrochemical facilities, and commercial HVAC infrastructure to continuously check for fan structural defects
Air-Cooled Heat Exchangers:Deployed heavily in oil refineries and gas processing plants where slow-spinning fan assemblies manage ambient process cooling.
Low-Speed Vent Fans: Installed on critical ventilation equipment in wastewater treatment, mining, and manufacturing facilities where rotational speeds range between 100 to 300 RPM.
Rotor and Blade Protection: Detects early-stage mechanical unbalance, blade tracking errors, and fan aerodynamic asymmetry.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this transducer?
A:It is explicitly designed for low-speed industrial machinery, most notably cooling tower fans rotating as low as 90 RPM. While standard velocity sensors cannot accurately track slow rotations, the Velomitor CT tracks low-frequency structural casing vibrations down to 3.0 Hz.
Q:What does the "-CN" suffix mean for compliance?
A:The "-CN" suffix indicates country-specific hazardous area approvals. This modification guarantees compliance with regulatory metrology, EMC, and explosion-proof mandates required for deployment within industrial zones in China.

Q:How do I mount this specific sensor?
A:The -18 option dictates that the unit must be screwed onto the machine framework using a 3/4-14 NPT thread connection. Proper mounting torque must be applied per the Bently Nevada 190501 Datasheet to ensure the sensor face makes precise contact without binding. Improperly torqued sensors yield invalid or attenuated vibration data.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-18-00-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/2-in 13
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
