190501-16-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:

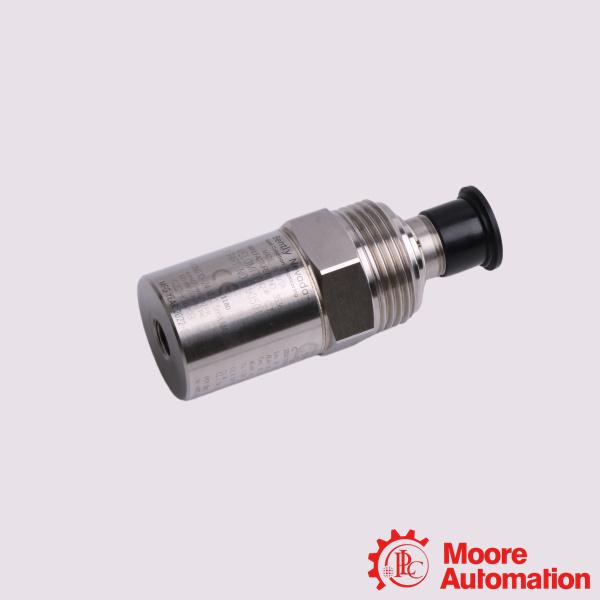

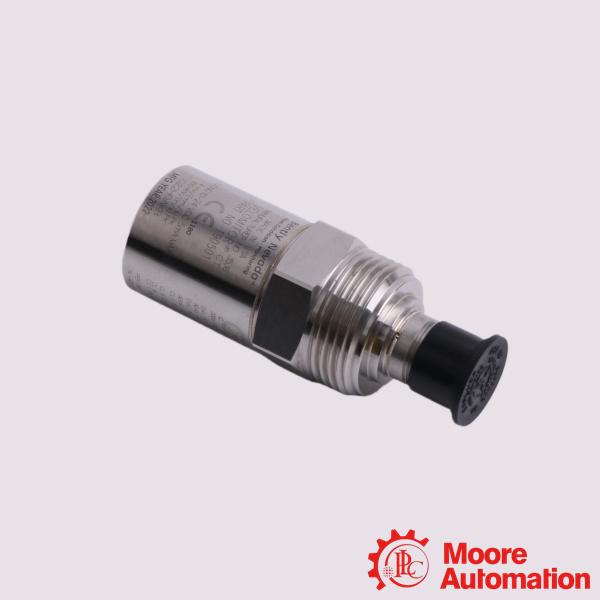

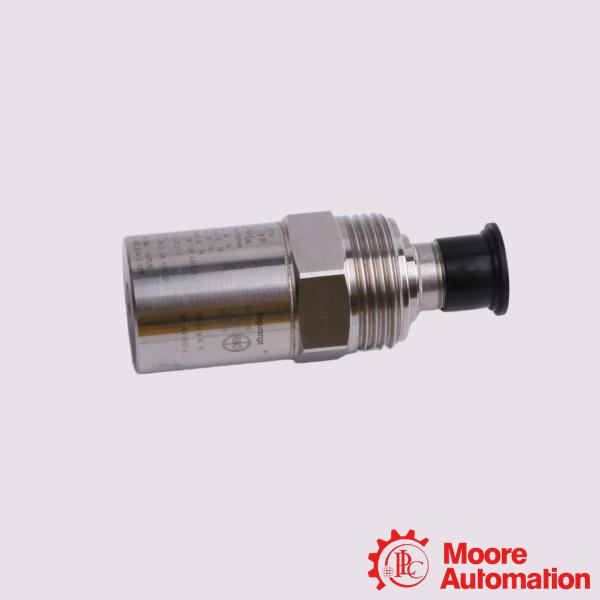

Bently Nevada 190501-16-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-16-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-16-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-16-99-00 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitors casing vibration on heavy industrial cooling tower fan systems.
Air-Cooled Heat Exchangers : Used on large fan assemblies within chemical plants and refineries.
Industrial Ventilation: Tracks structural integrity in massive HVAC/exhaust fans.
Gearbox and Motor Powertrains: Measures vibration frequencies simultaneously generated by the driving fan motor and the speed reducer (gearbox).

Frequently Asked Questions (FAQ)

Q:What is the primary application of this sensor?
A:It is specifically engineered for cooling towers and air-cooled heat exchangers. It excels at monitoring low-speed fan assemblies operating at or above 90 RPM, tracking fan motor imbalances, and detecting gear reducer degradation.
Q:How do you mount and torque the device?
A:It requires a 33 mm (1.3 in) diameter flat mounting surface. Use the included 3/8-in 24 adapter stud and tighten the transducer to a strict mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) to guarantee accurate signal transmission.

Q:Can this sensor be calibrated in the field?
A:Yes. Field validation requires a portable shaker system capable of executing low-frequency sweeps at a target amplitude of 1 in/s. The measured voltage output must match the 100 mV/in/s tolerance profile before uploading to a verification template.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-16-99-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 24
Connection Option	Unit with included 32-foot cable
Agency Approval Option	No Approvals
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
