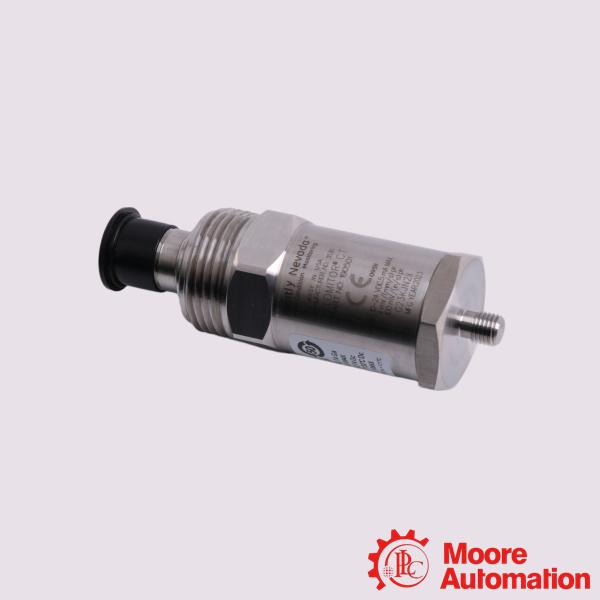

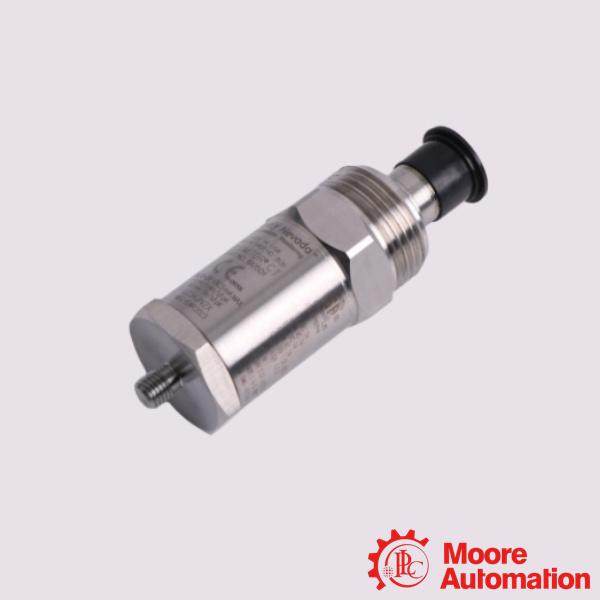

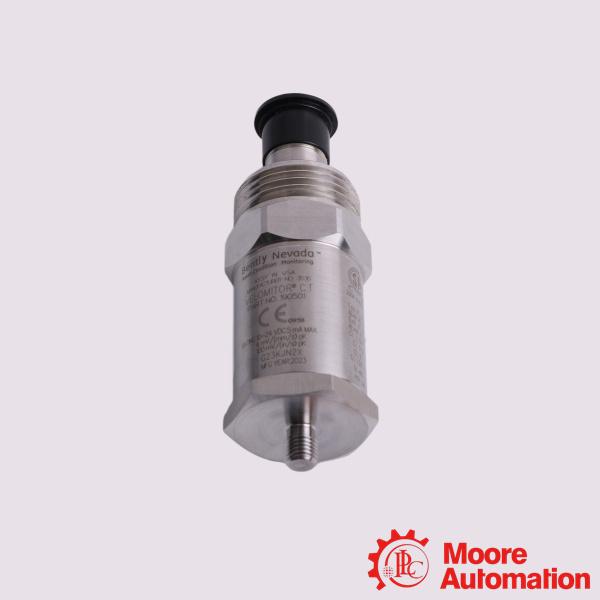

190501-17-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-17-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-17-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-17-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-17-00-CN Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its
design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitored on large cooling tower fans used across power generation and chemical manufacturing plants to prevent catastrophic blade or gearbox failures.
Air-Cooled Heat Exchangers: Measures structural and casing vibration on low-velocity fan assemblies typical in upstream oil refineries and downstream petrochemical infrastructure.
Industrial Water & Fluid Pumps: Tracks low-frequency imbalance, misalignment, or cavitation in large-scale municipal, agricultural, or power plant circulating water pumps.
Large HVAC Blowers: Deployed on massive industrial air-handling systems requiring lower frequency thresholds than standard vibration sensors.

Frequently Asked Questions (FAQ)

Q:What is the primary application of the Velomitor CT?
A:It is a low-frequency piezo-velocity sensor designed to measure casing vibration velocity. It specifically monitors low-speed cooling tower fans and air-cooled heat exchangers operating at or above 90 RPM.
Q:What does the "CN" suffix mean for my installation?
A:The "CN" suffix means the sensor includes country-specific regulatory approvals for China. It certifies that the unit complies with local hazardous area, electrical safety, or RoHS compliance rules, allowing it to be legally installed in hazardous industrial zones within that region.

Q:How tightly should this sensor be mounted?
A:To prevent distorted data, the transducer must be torqued precisely to 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) on a clean, flat mounting surface of at least 33 mm (1.3 inches) in diameter. Improper torque or an uneven surface can significantly decrease frequency response or create false vibration signals.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-17-00-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 16
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
