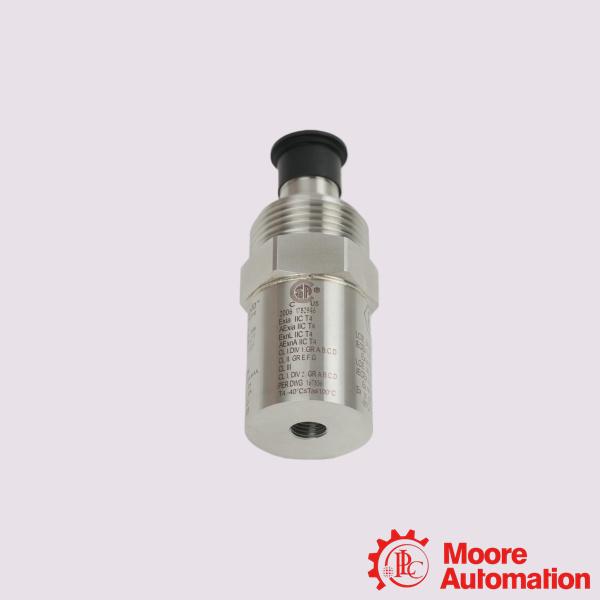

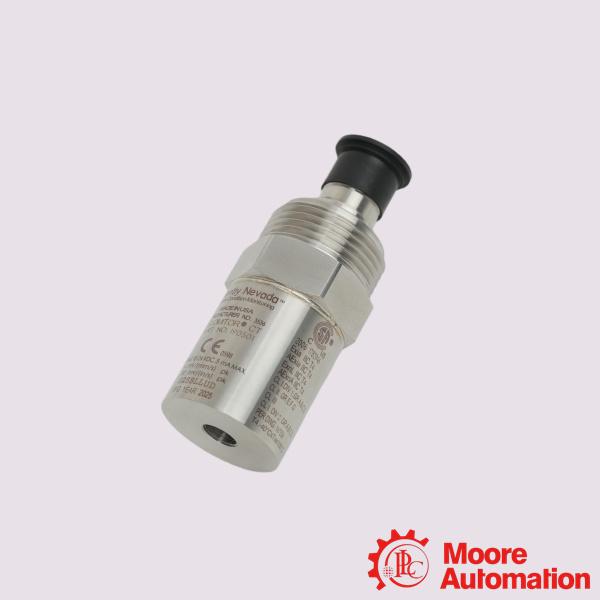

190501-16-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-16-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-16-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-16-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-16-00-01 is a specific part number configuration for the Velomitor CT Velocity Transducer, a low-frequency sensor designed primarily for monitoring casing vibration on cooling towers and air-cooled heat exchangers.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

Application:

Water & Wastewater Treatment: Implemented on low-RPM aerators, heavy-duty pumps, and secondary treatment blowers.
Pulp, Paper, and Sugar Production: Tracks structural vibrations on large, low-frequency processing drums, pulpers, and wet-end machinery.
Mining & Metal Mills: Monitors slow-spinning components on conveyor drive systems, crushers, and ventilation fans.
Cooling Tower Fan Assemblies: The sensor monitors slow-turning cooling tower fans to track structural casing stress and imbalances

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of the Velomitor CT?
A:It is specifically engineered to measure low-frequency casing vibration velocity on slow-moving fan assemblies operating at or above 90 RPM. This makes it ideal for cooling tower fans and air-cooled heat exchangers, picking up malfunctions like unbalance or misalignment originating at the rotor.
Q:Does this configuration require wiring changes during installation?
A:No. It utilizes a standard 2-pin MIL-C-5015 top connector. Pin A goes positive relative to Pin B when the casing velocity moves from the base toward the top of the sensor. It is compatible with existing 3500-series or 1900-series monitoring racks without field re-wiring.

Q:How far away can the transducer be cabled from the monitor?
A:The sensor can support a maximum continuous cable length of up to 305 meters (1,000 feet) to your junction box or machinery protection system without losing signal integrity.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-16-00-01
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 24
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
