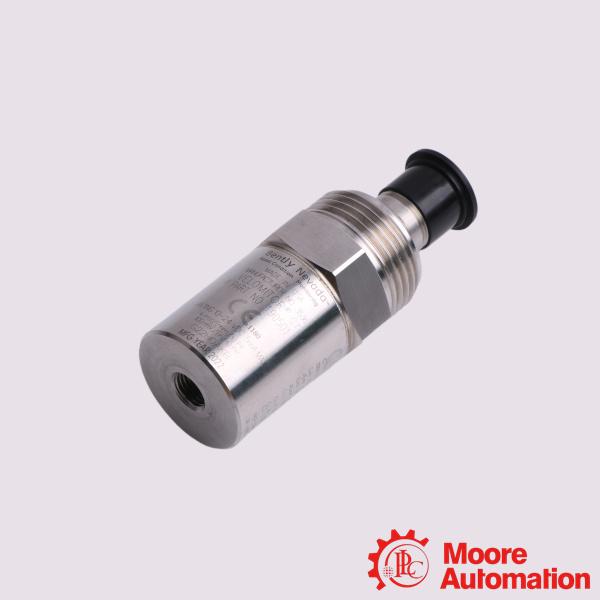

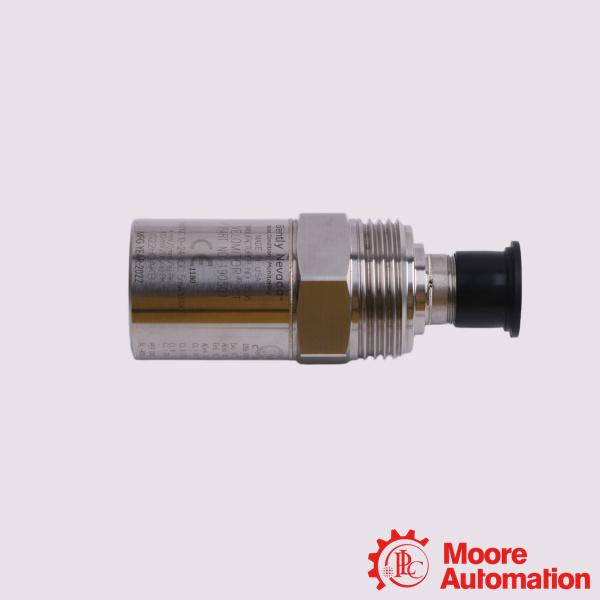

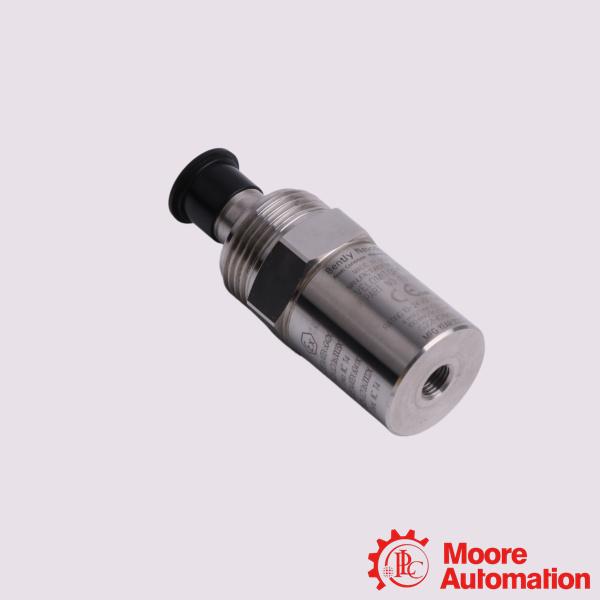

190501-16-00-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-16-00-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-16-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-16-00-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-16-00-00 belongs to the 190501 Velomitor CT series and is a dedicated low-frequency piezoelectric speed sensor primarily used to measure the vibration of the casing of low-speed rotating machinery at speeds not lower than 90 RPM. The Velomitor CT speed sensor is a low-frequency version of the standard Velomitor piezoelectric speed sensor, which typically operates above 90 rpm (typically ranging from 100 to 300 rpm). This sensor can measure not only the vibration amplitude at these speeds but also the vibration frequency generated by fan motors and gearboxes.

Application:

Power Generation: Monitors cooling towers in coal, combined-cycle gas, and nuclear power plants.
Petroleum Refining & Petrochemical: Protects large critical fin-fan banks and process cooling loops.
Chemical & Fertilizer Production: Tracks critical slow-speed mechanical components handling thermal rejection.
Pulp & Paper, Steel, and Mining: Deployed on heavy-duty ventilating and structural heat-rejection infrastructure.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this transducer?
A:It is engineered specifically to measure casing vibration velocity on cooling towers and air-cooled heat exchangers. It is ideal for fan assemblies operating at low speeds at or above 90 RPM (typically 100 to 300 RPM).
Q:What is the maximum cable length supported?
A:The sensor supports a maximum continuous cable run of up to 305 metres (1,000 feet) without any signal degradation. Note that the continuous raw cable length straight from the factory maxes out at 300 feet, requiring splicing or an inline connector for longer installations.

Q:What is the recommended mounting torque?
A:It must be torqued to 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Proper torque is critical; under-tightening or over-tightening alters the sensor's frequency response and introduces measurement errors.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-16-00-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 24
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
