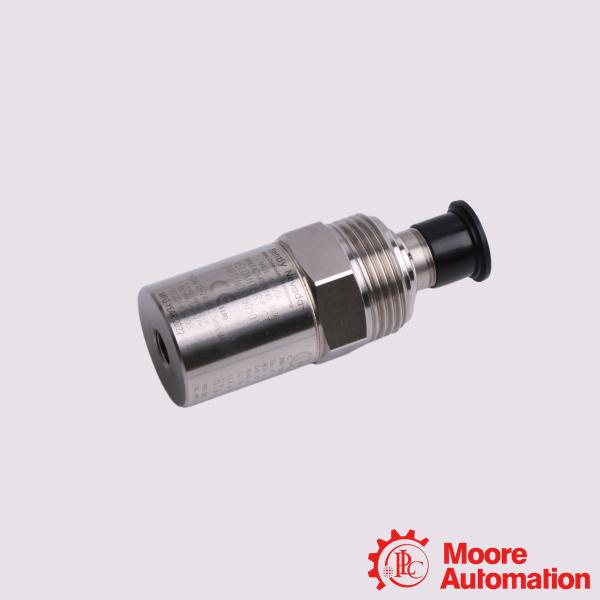

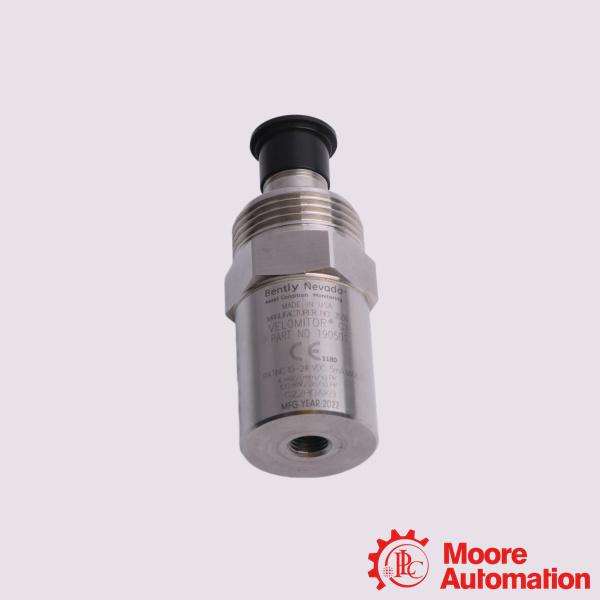

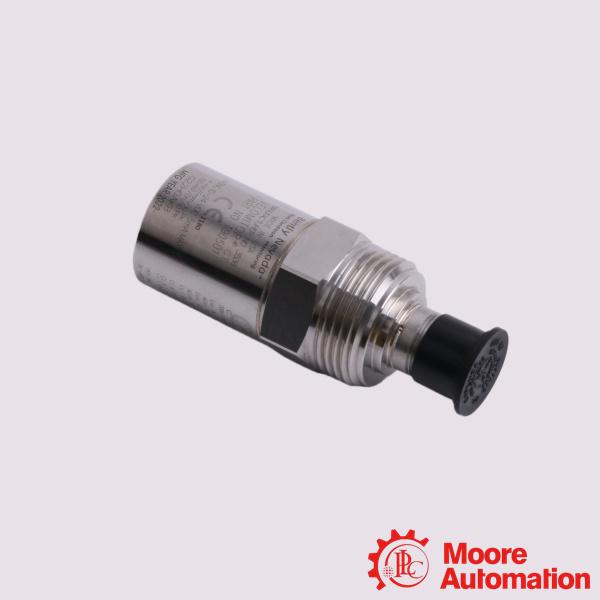

190501-15-99-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-15-99-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-15-99-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-15-99-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-15-99-CN Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas Refineries: Hydrocarbon processing areas requiring strict explosion-proof compliance.
Petrochemical Plants: Monitoring critical heat dissipation and cooling equipment.
Power Generation Facilities: Tracking main cooling tower structural and rotational health.
Chemical & Heavy Manufacturing: Industrial processes relying on continuous, automated low-speed ventilation.

Frequently Asked Questions (FAQ)

Q:Can I use standard Velomitor cables with this model?
A:Because this unit uses the 99 option (integrated cable), you do not need a separate interconnecting cable for the sensor head. If you need to extend the run up to its maximum capacity of 305 meters (1,000 feet), you must use Bently Nevada approved extension cabling and junction boxes to preserve signal integrity and hazardous area certifications.
Q:Which monitoring systems support the 190501?
A:It connects directly to the Bently Nevada 3500 Monitoring System via a 3500/70M Velocity Monitor or a 3500/42M Proximitor Seismic Monitor configured for velocity inputs. For newer Orbit 60 Systems, a PAV module is recommended.

Q:What is the proper mounting torque?
A:When installing the mounting stud, the transducer must be torqued to 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Incorrect torque or a non-flat mounting surface will significantly degrade the low-frequency response and generate false vibration data.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-15-99-CN
Mounting Hardware Option	Adapter, 3/8-in 24 to 5/16-in 18
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
