Product Description:

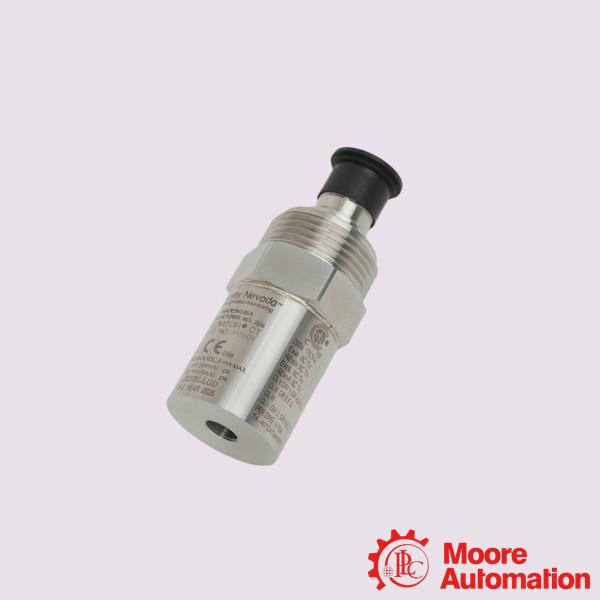

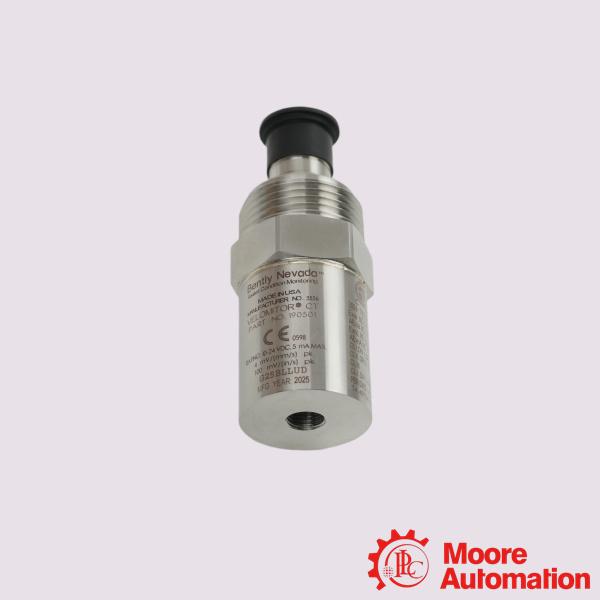

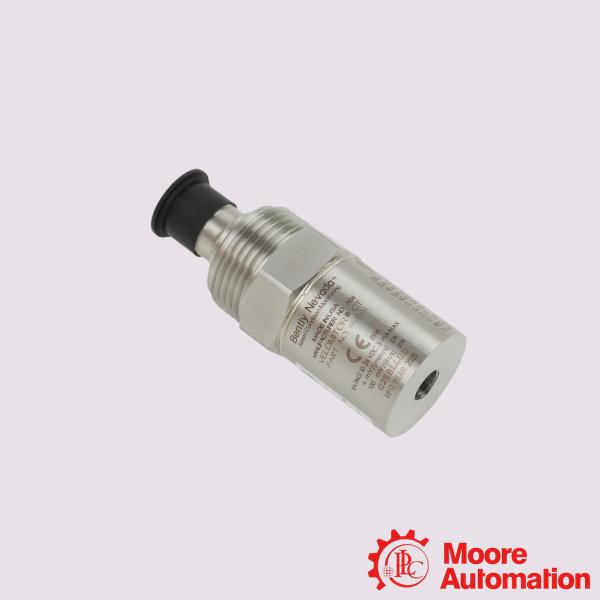

The Bently Nevada 190501-15-00-01 is a specific configuration of the Velomitor CT (Cooling Tower) Velocity Transducer, an industrial sensor designed by Bently Nevada to measure low-frequency casing vibrationThe Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).  The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer

Frequently Asked Questions (FAQ)

Q:Is it safe for hazardous environments?
A:Yes. The 01 approval code designates certification for explosion-proof and intrinsically safe installations across various global standards (ATEX, IECEx, and EAC) depending on the specific product lifecycle region. Always verify local hazardous area drawings before wiring to a monitor barrier.
Q:How should the sensor be mounted?
A:The "15" option includes a 3/8-in 24 to 5/16-in 18 stud adapter. Ensure the mounting surface is flat, clean, and at least 33 mm (1.3 in) in diameter. Tighten the sensor to the recommended installation torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Improper torque or an uneven surface will distort high-frequency transmission and provide invalid data.

Q:What cable and mating connector do I need?
A:The sensor uses a standard 2-pin MIL-C-5015 top connector. It is typically paired with a twisted, shielded pair cable (20 AWG) with a splash-proof premium connector boot to protect against water in cooling towers. The maximum recommended cable length is 305 meters (1,000 feet).
