in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
8.5x3.5x3cmWeight:
0.32kgCountry of Origin: :
USADescription:

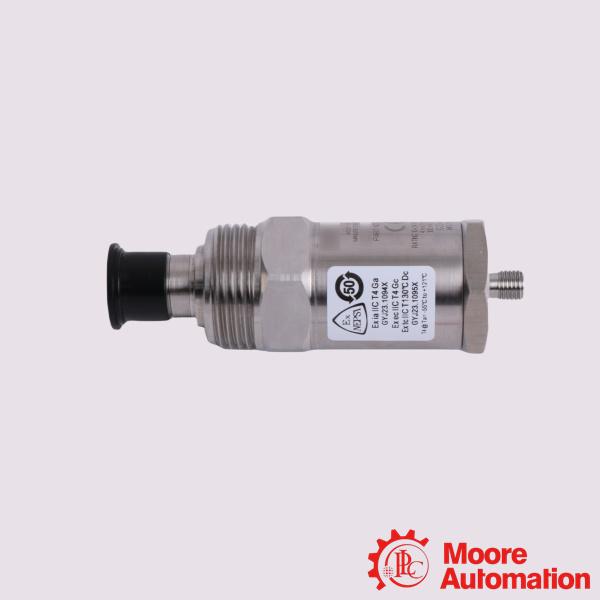

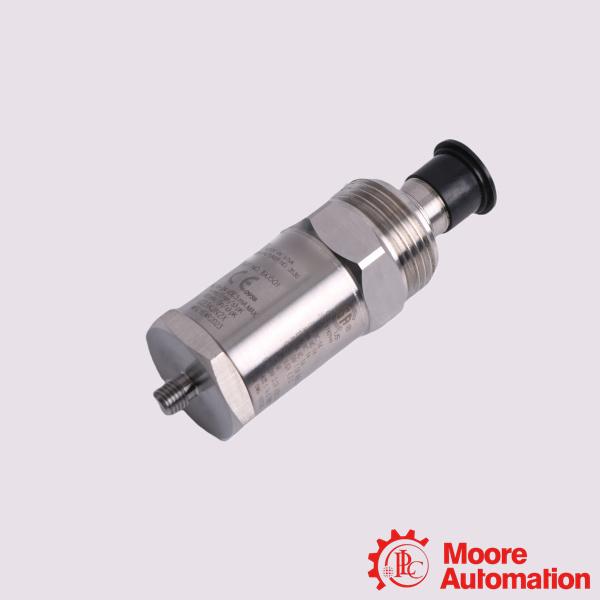

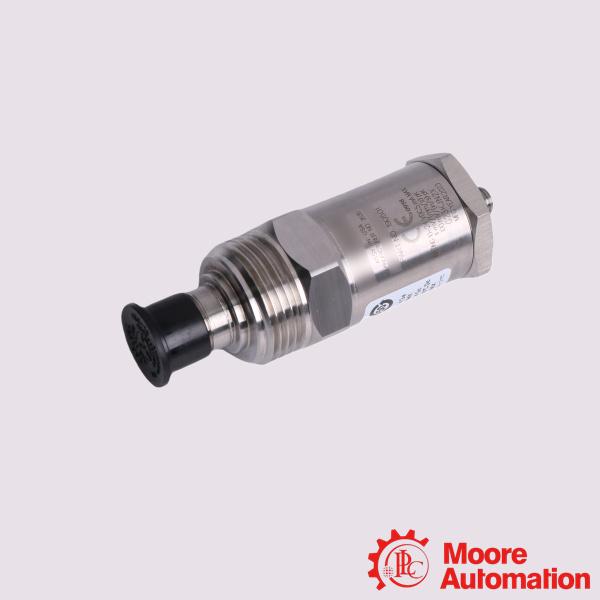

Bently Nevada 190501-15-00-00 Velomitor CT Velocity Transducer
| Mfr. Part Number: |
190501-15-00-00 |
| Manufacturer: |
Bently Nevada |
| Description: | Bently Nevada 190501-15-00-00 Velomitor CT Velocity Transducer |
| Full Description: | The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 190501-15-00-00 is a specific part number configuration for the Bently Nevada Velomitor CT Velocity Transducer, To track casing vibration on low-speed cooling tower and heat-exchanger fan assemblies operating at or above 90 RPM The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration
frequencies generated by the fan motor and speed reducer.
Application:
Water Treatment & Power Generation: Protecting slow-speed water pumps, circulating fans, and hydro-associated rotating assets.
Industrial Vent Fans & Blowers: Deployed on massive slow-turning ventilation systems operating at or above 90 RPM.
Air-Cooled Heat Exchangers (Fin-Fans): Monitoring external structural casing of large air cooler arrays common in arid manufacturing climates.
Cooling Tower Fan Assemblies: Tracking structural case vibrations on slow-speed wet cooling tower fans to prevent catastrophic structural collapses or blade cracking.
Frequently Asked Questions (FAQ)
Q:How does it differ from a standard Velomitor?
A:It is a specialty low-frequency variant. Standard vibration sensors can be blind to the low-frequency movements of slow fan blades. The 190501 model extends its frequency range down to 1.5 Hz (90 CPM) to catch imbalances or misalignments at slow operating speeds
Q:What cable and mating connector should be used?
A:It uses a standard MIL-C-5015 top-mount 2-pin connector. This typically pairs with a shielded, twisted-pair cable (like 20 AWG Teflon-jacketed cables). The system can support total cable runs up to 305 meters (1,000 feet) without degrading signal quality.
Q:WCan it be mounted horizontally or upside down?
A:Yes. The transducer can be installed in any physical orientation on the machinery housing. However, the housing surface must be smooth, flat (33 mm minimum diameter), and torqued carefully to 4.5 N-m (40 in-lbf) to maintain proper frequency conduction.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：190501-15-00-00 |
|
Mounting Hardware Option |
Adapter, 3/8-in 24 to 5/16-in 18 |
|
Connection Option |
MIL-C-5015 connection interface |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Temperature Sensitivity |
-8% to +5% typical over the operating temperature range |
|
Transverse Response |
Less than 5% of the axial sensitivity |
|
Output Bias Voltage |
10.1 Vdc ± 1.0 Vdc |
|
Dynamic Output Impedance |
<400 Ω typical |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature |
-40°C to +100°C (-40°F to +212°F) |
|
Agency Approval Option |
No Approvals |
|
