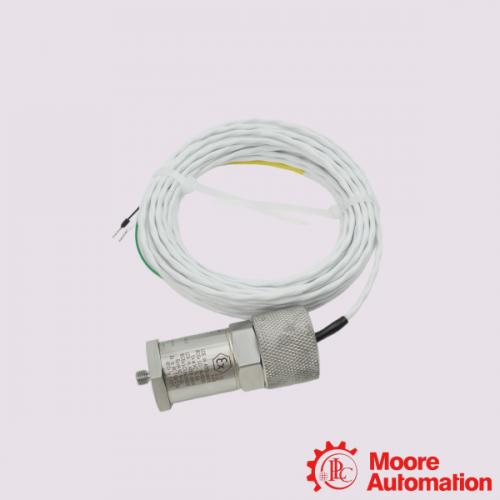

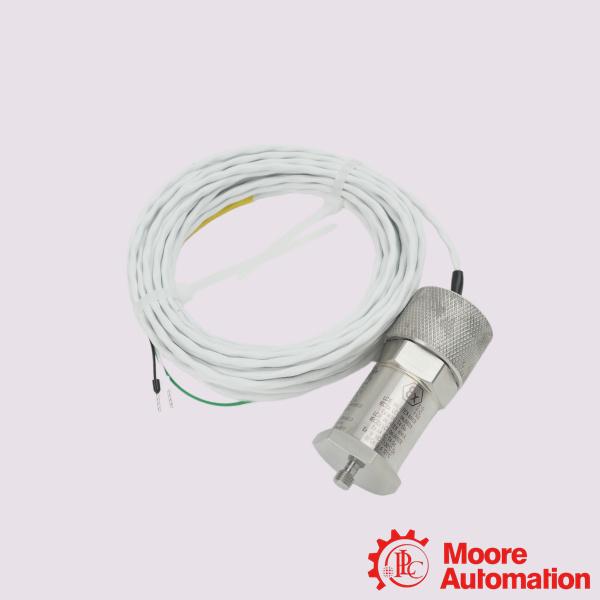

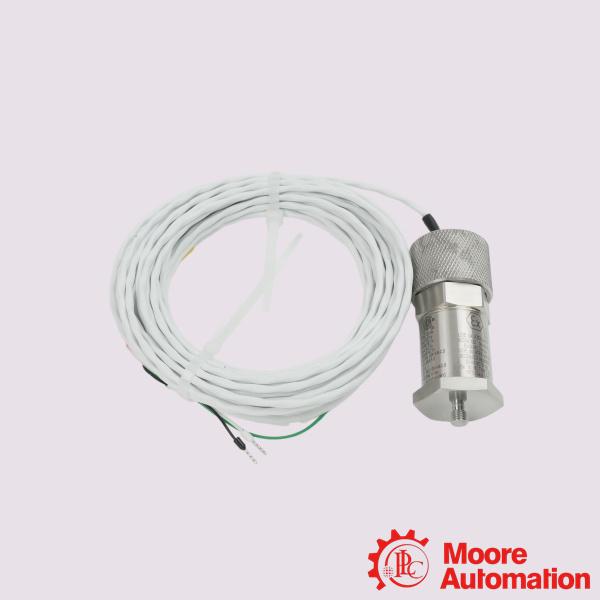

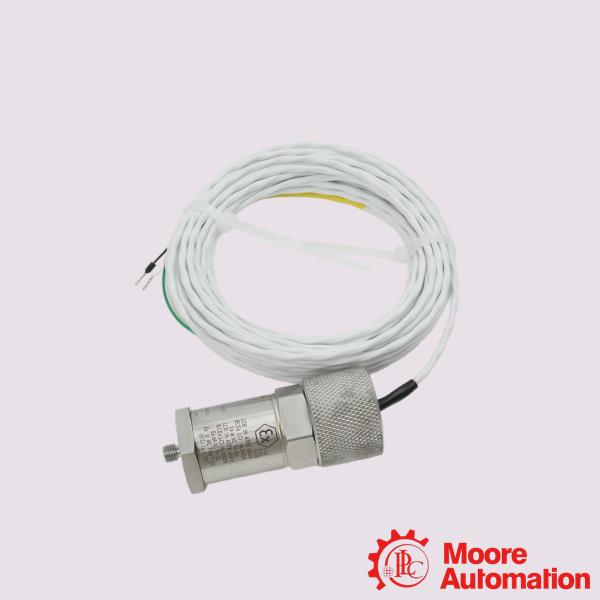

190501-12-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
20x15x4cm
Weight:
0.75kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-12-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-12-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-12-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-12-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Petrochemical and Oil & Gas Refineries: Deployed in harsh, hazardous plant environments requiring certified explosion-proof equipment (per its 04 CSA approval option).
Industrial Fan Motors & Speed Reducers: Tracks imbalances and misalignments originating from the driver motors and gearboxes linked to cooling equipment.
Power Generation Plants: Monitors large-scale utility water-cooling systems critical for keeping steam turbines running efficiently.
Air-Cooled Heat Exchangers (Fin-Fans): Monitors large aerial coolers used in heavy processing plants where low-frequency structural resonance can cause blade or structural failure.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of this sensor?
A:It measures low-frequency casing vibration velocity. It is specifically optimized for cooling towers and air-cooled heat-exchanger fan assemblies operating at low speeds.
Q:What machinery speeds can it track?
A:It monitors fans running at or above 90 RPM (with 100 to 300 RPM being typical). Standard velocity sensors cannot reliably capture these ultra-low frequencies.

Q:What does the "-99" connection option mean for installation?
A:The -99 option means the sensor is shipped with a 32-foot molded, integrated cable. This provides extra protection against moisture and environmental contaminants in harsh cooling tower conditions compared to using a detachable top connector

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-12-99-04
Mounting Hardware Option	Plate Stud 3/8-in 24 to M8x1
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
