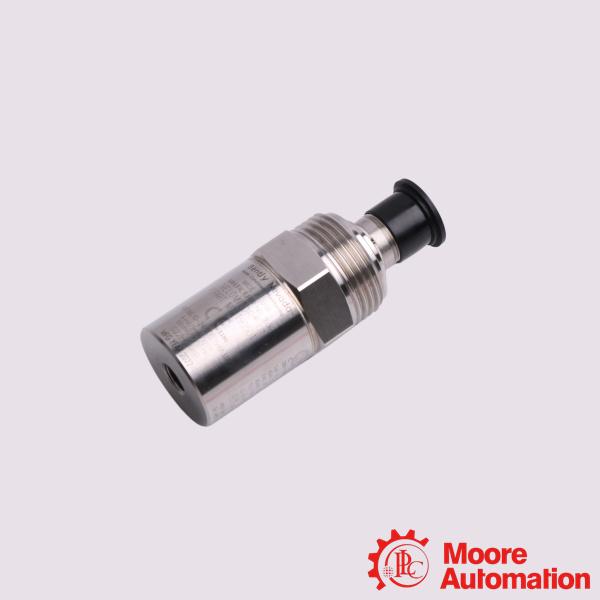

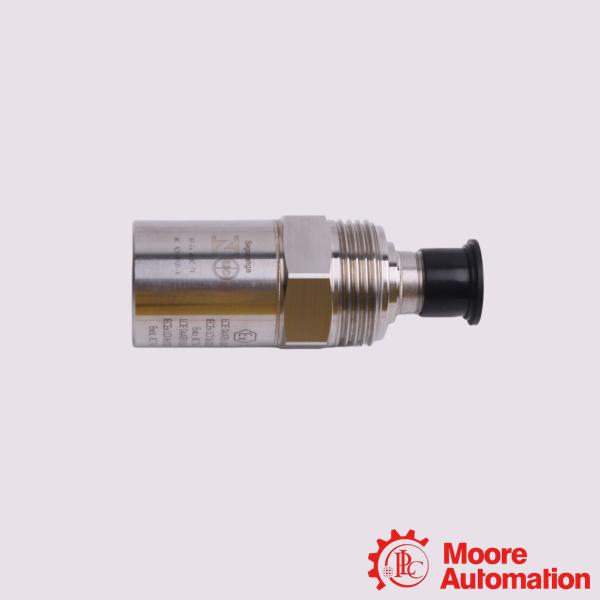

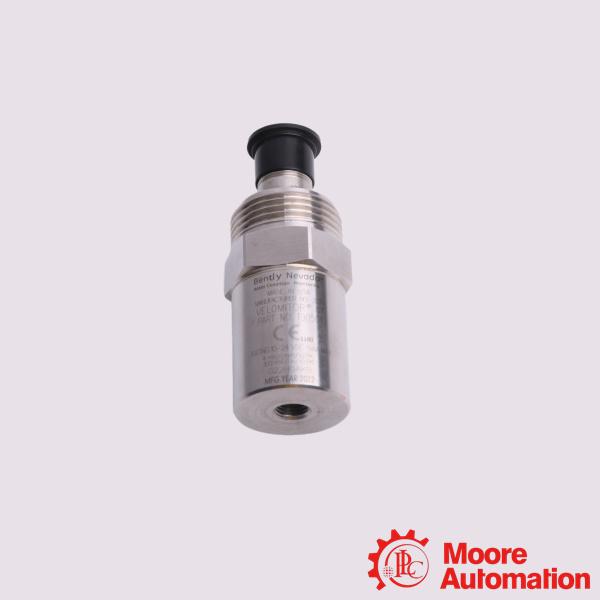

190501-10-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-10-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-10-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-10-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-10-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Petrochemical & Oil Refining: Monitoring large industrial cooling tower fans that prevent system overheating.
Power Generation: Tracking air-cooled condensers (ACC) and structural casing vibrations on massive low-speed heat-exchanger fan assemblies.
Chemical Processing: Machinery protection systems for large-scale ventilation, cooling systems, and speed reducers.
Cooling Towers: Monitors low-speed driving units.Used extensively across oil refineries, petrochemical plants, and power generation facilities to monitor structural vibration on massive cooling tower fan decks

Frequently Asked Questions (FAQ)

Q:What is the electrical sensitivity of this sensor?
A:The transducer outputs an electrical signal with a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%.
Q:Can this sensor be used in wet or hazardous conditions?
A:Yes. The unit features a 316L stainless steel housing and comes standard with a sealed, splash-proof cable connection interface. The -04 agency option provides safety certifications for deployment in hazardous industrial zones.

Q:What makes the "CT" version different from a standard Velomitor?
A:The CT (Cooling Tower) variant has a downward-extended frequency response range compared to standard vibration sensors. It effectively measures frequencies from 3.0 Hz to 900 Hz (±1.0 dB) or 1.5 Hz to 1.0 kHz (±3.0 dB). This design specifically tracks casing vibration velocity on slow-moving fans operating at low speeds.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-10-99-04
Mounting Hardware Option	Plate Stud M6x1 to M6x1with 3/8- in 24 adapter
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
