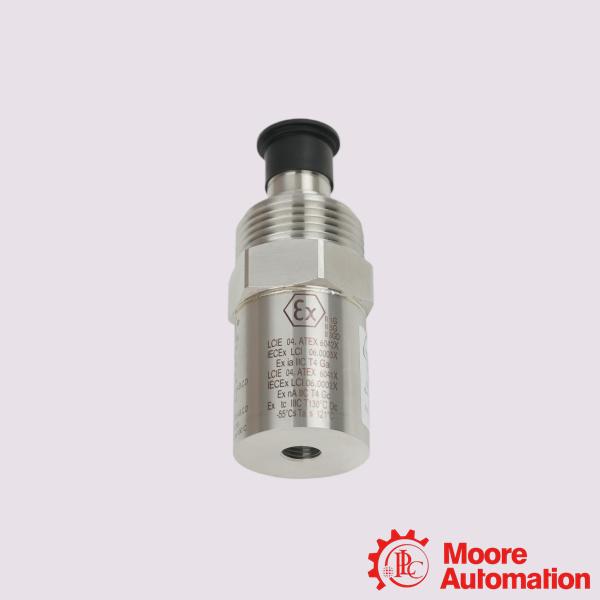

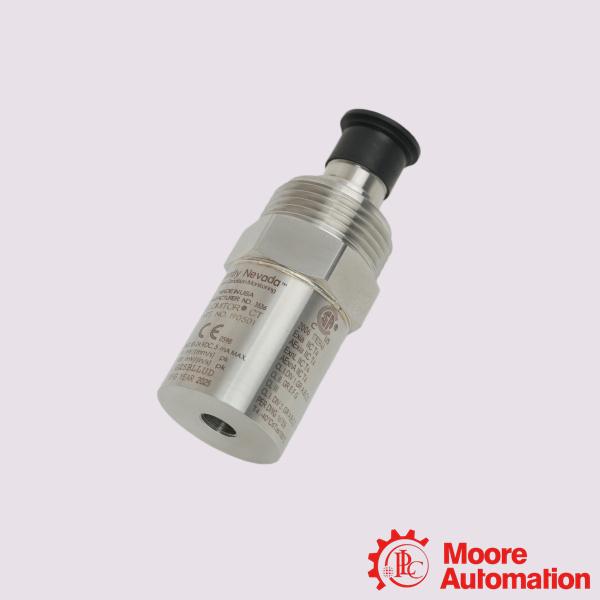

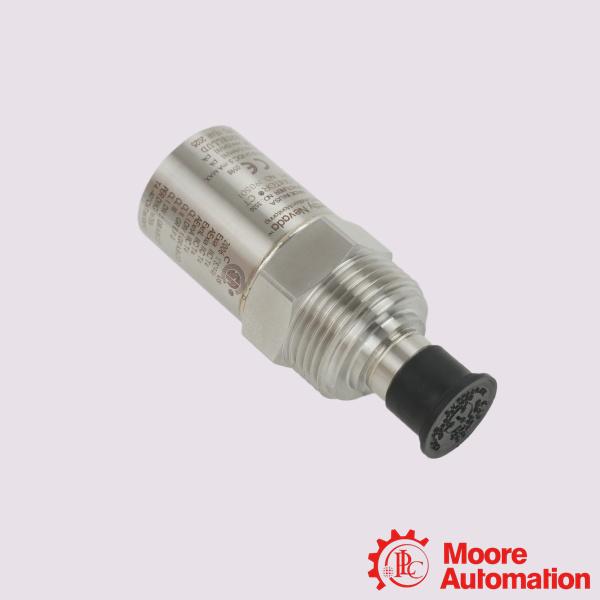

190501-14-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-14-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-14-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-14-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-14-99-04 Velomitor CT Velocity Transducer is a low frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Towers: Monitoring large, low-speed fan assemblies in chemical plants, refineries, and HVAC units running as low as 90 RPM.
Air-Cooled Heat Exchangers (Fin-Fans): Tracking severe vibration spikes caused by structural looseness or blade pitch errors.
Industrial Gearboxes & Speed Reducers: Detecting low-frequency gear mesh and bearing faults within heavy reduction drive trains.
Large Industrial Motors: Capturing casing vibration signatures to flag rotor unbalance or shaft misalignment before catastrophic damage occurs.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this sensor?
A:This transducer is designed to measure low-frequency casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies. It handles machines running at or above 90 rpm (typically 100 to 300 rpm). It captures malfunctions like unbalance, misalignment, and mechanical looseness from the rotor, motor, and speed reducer.
Q:What torque should be used during installation?
A:When mounting this transducer, it should be tightened to a torque specification of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Correct torque ensures a flat, solid mechanical connection, preventing signal attenuation or false high-frequency noise.

Q:Which machinery monitoring modules are compatible?
A:It interfaces seamlessly with industry-standard Bently Nevada monitoring systems. This includes the 3500/70M Velocity Monitor or the newer Orbit 60 Series Dynamic Input Modules (using a PAV module configuration).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-14-99-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/4-in 20
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
