190501-09-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

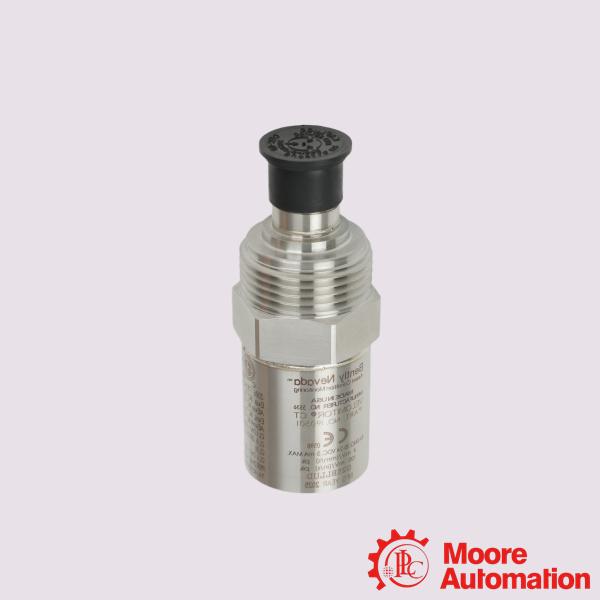

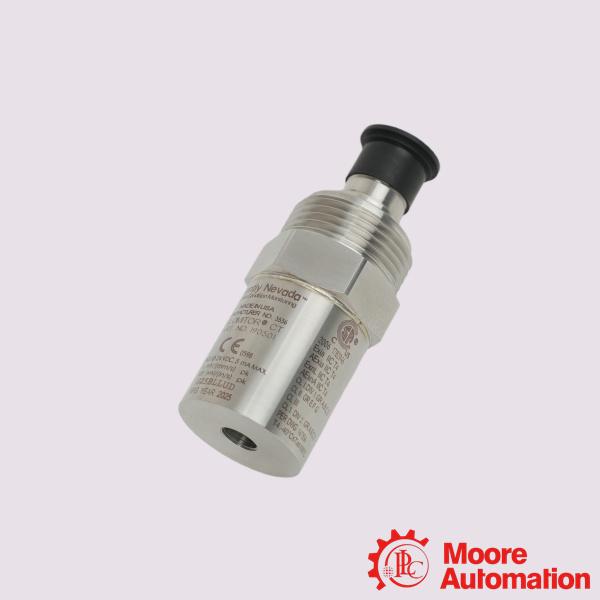

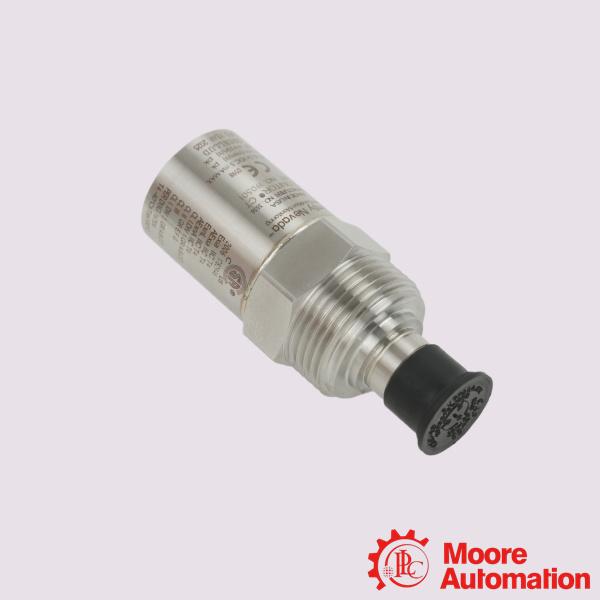

Bently Nevada 190501-09-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-09-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-09-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-09-00-CN is a Velomitor CT low-frequency piezoelectric velocity sensor from Bently Nevada, designed specifically for measuring the vibration velocity of the casing of cooling towers and air-cooled heat exchanger fan assemblies. Optimized for low-speed rotating machinery operating at 90 RPM and above (typically 100–300 RPM), this sensor accurately measures vibration amplitude under these low-frequency conditions and effectively captures vibration signals generated by fan motors and their speed multiples.

Application:

Power Generation Facilities: Deployed on main cooling tower fan assemblies to guarantee uninterrupted heat rejection cycles.
Petrochemical & Chemical Plants: Implemented to track health metrics on heat-exchanger assemblies in highly corrosive and volatile process areas.
Oil & Gas Refineries: Used on large cooling infrastructure and processing fans where explosive vapors require explosion-proof or intrinsically safe certifications
Food & Beverage Production: Utilized in heavy-duty utility and refrigeration cooling setups requiring strict environmental compliance.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of this sensor?
A:It measures casing vibration velocity on low-speed rotating equipment. It is optimized for cooling tower and air-cooled heat-exchanger fan assemblies operating at or above 90 RPM.
Q:What are the torque specs for installing this sensor?
A:When mounting the transducer, use a mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Incorrect torque can degrade the frequency response or create false vibration signals.

Q:What material is the case made of?
A:The outer casing is constructed from rugged 316L stainless steel to withstand corrosive, high-moisture environments typical of cooling towers.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-09-00-CN
Mounting Hardware Option	Plate Stud 3/8-in 24 to 1/4-in NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
