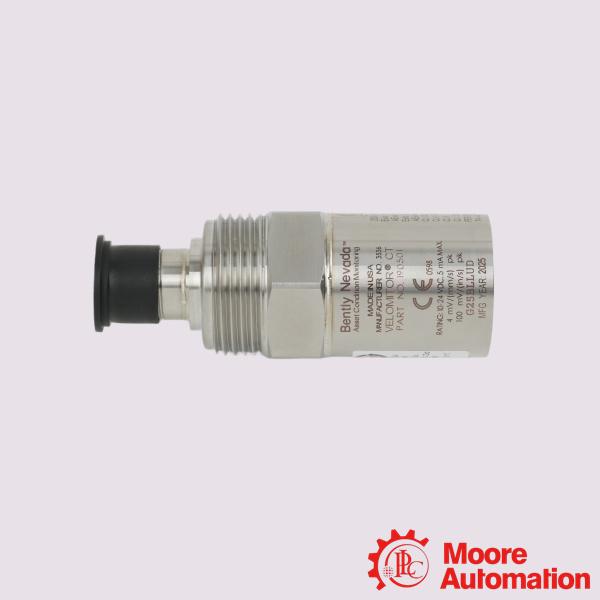

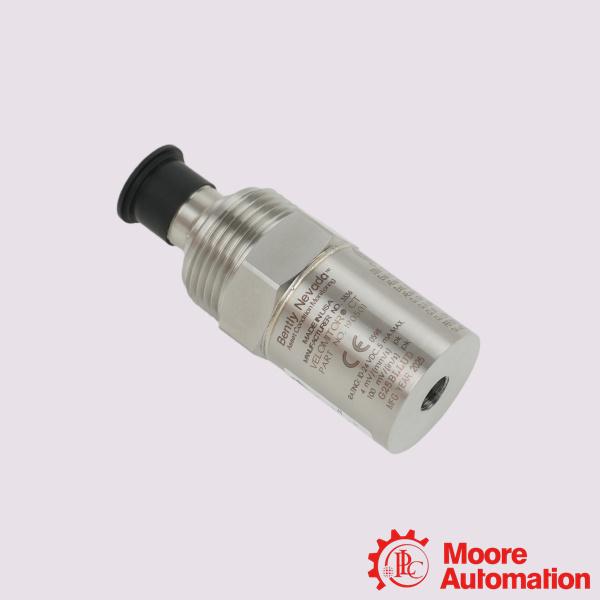

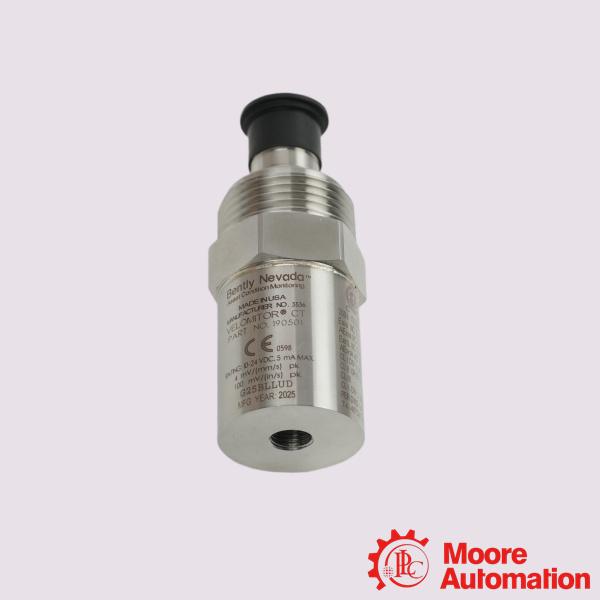

190501-08-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-08-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-08-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-08-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-08-99-01 Velomitor CT Velocity Transducer is a low-frequency piezoelectric velocity sensor designed specifically for cooling towers and air-cooled heat exchanger fan assemblies. This sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor, optimized for measuring the vibration velocity of the casing of low-speed rotating equipment at speeds of 90 RPM and above (typical operating range 100–300 RPM).

Application:

Power Generation: Monitoring main cooling tower structures that dissipate waste heat from steam turbines.
Oil & Gas: Protecting fin-fan cooling banks used to condense process fluids.
Chemical & Fertilizer Plants: Ensuring continuous operation of critical process cooling infrastructure.
Pulp & Paper / Heavy Manufacturing: Managing localized utility and mechanical draft fans.

Frequently Asked Questions (FAQ)

Q:What makes the "CT" version different from a standard Velomitor?
A:The CT version is tailored for lower frequencies. While a standard Velomitor typically tracks down to 10 Hz, the 190501 Velomitor CT safely measures down to 1.5 Hz or 3.0 Hz. This makes it ideal for fan assemblies running between 100 and 300 rpm
Q:Is this sensor pin-compatible with older systems?
A:Yes. It features a standard 2-pin MIL-C-5015 top connector. It seamlessly interfaces with standard Bently Nevada Machinery Condition Monitoring systems like the 3500/42M or 1900/27 monitors without requiring extensive reconfiguration.

Q:How should the transducer be oriented during installation?
A:It can be mounted in any orientation without affecting its accuracy. However, ensure the physical surface is flat and clean, as poor physical coupling causes high-frequency signal distortion.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-08-99-01
Mounting Hardware Option	Plate Stud 3/8-in 24 to 1/2-in 20
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
