190501-05-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

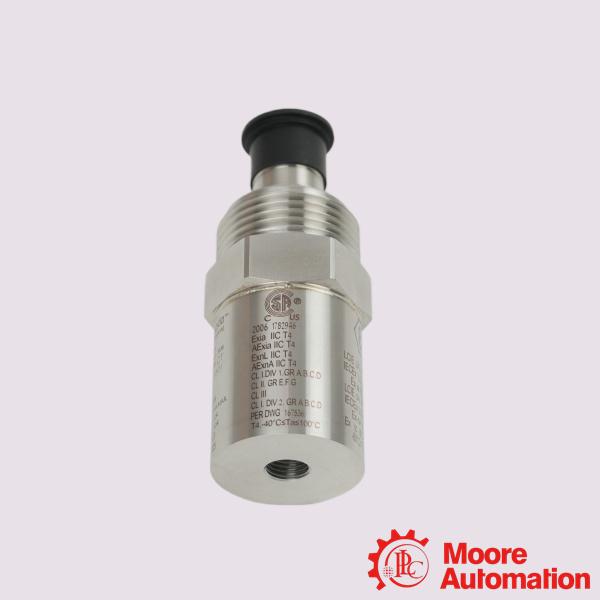

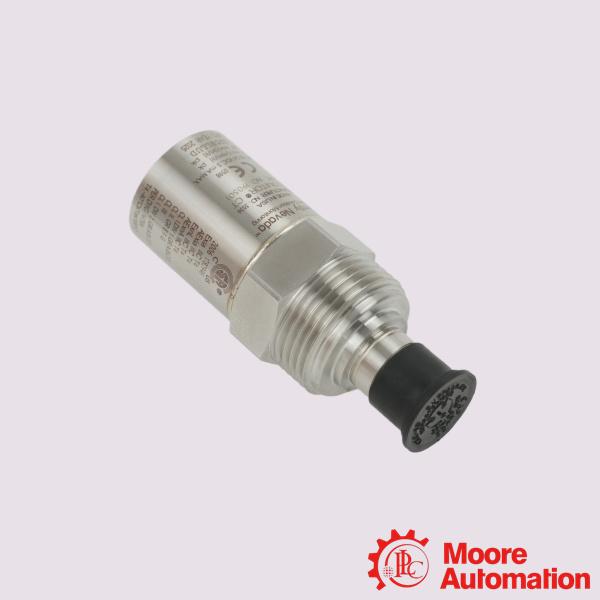

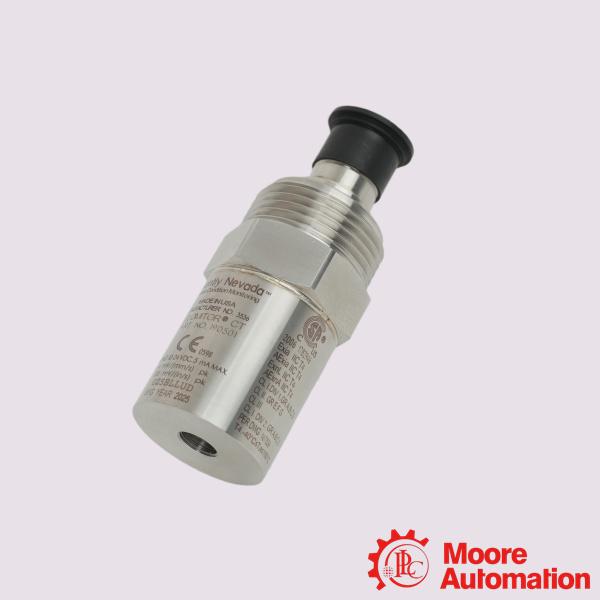

Bently Nevada 190501-05-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-05-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-05-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The part number 190501-05-99-01 refers to the Bently Nevada Velomitor CT (Cooling Tower) Velocity Transducer. This specialized, low-frequency piezo-velocity sensor is engineered to monitor machinery casing vibration.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Tower Fans: Monitors large, slow-moving fan blades to identify unbalance or structural anomalies.
Air-Cooled Heat Exchangers (ACHE): Tracks casing vibrations on extensive fan assemblies used in steam condensing systems.
Slurry & Processing Cooling Towers: Measures casing velocity to identify mechanical misalignment and bearing wear.
Speed Reducers & Gearboxes: Captures low-frequency vibration frequencies generated by fan drive reduction gears.

Frequently Asked Questions (FAQ)

Q:Which machinery monitoring systems are compatible with it?
A:It interfaces seamlessly with Bently Nevada monitoring platforms like the 3500 series (via the 3500/70M monitor module) or the Orbit 60 series (using a PAV module).
Q:Is this device safe for explosive environments?
A:Yes. The "-01" indicator guarantees CSA/NRTL/C hazardous area ratings, classifying it as intrinsically safe for Class I, Division 1, Groups A, B, C, and D environments when connected through appropriate safety barriers.

Q:Can it be mounted in any direction?
A:Yes. The 190501 sensor can be installed in any orientation (vertical, horizontal, or inclined) without losing accuracy.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-05-99-01
Mounting Hardware Option	Adhesive Stud M6x1 with 3/8-24 adapter
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
