190501-04-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:

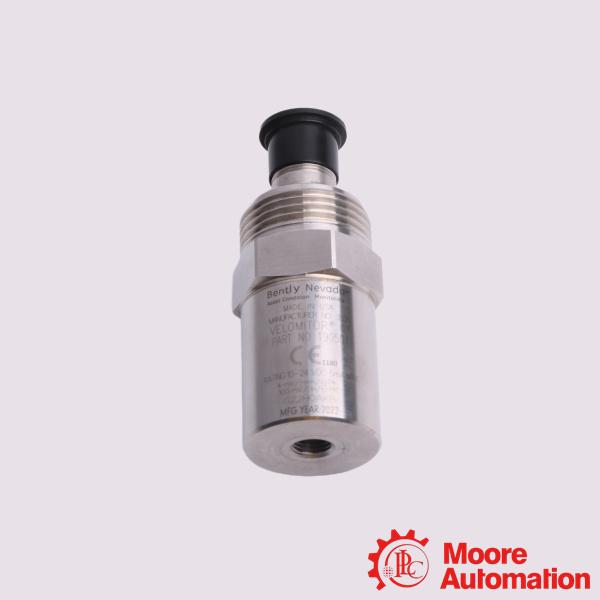

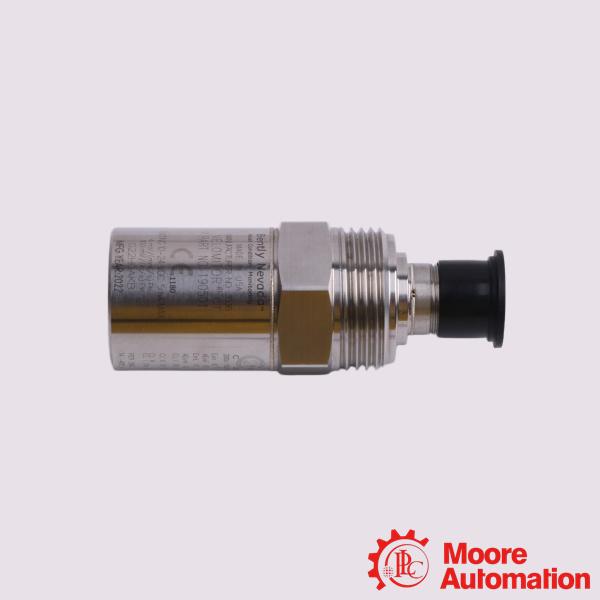

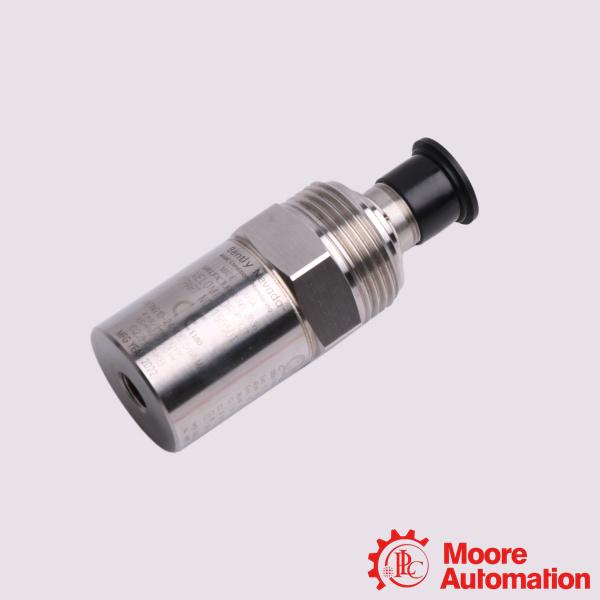

Bently Nevada 190501-04-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-04-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-04-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-04-99-01 is a part number configuration for the Velomitor CT (Cooling Tower) Velocity Transducer. This specialized, low-frequency sensor is designed primarily to monitor casing vibration velocity on slow-speed, rotating industrial machinery.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity oncooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Cooling Tower Fan Assemblies: The sensor is explicitly designed to measure casing vibration velocity on cooling tower fans. It tracks mechanical faults in the fan blade assemblies, drive shafts, and related structural foundations.
Air-Cooled Heat Exchangers (Fin-Fans): Widely used across industrial processing facilities to monitor low-speed fan assemblies responsible for heavy-duty process cooling.
Industrial Water Treatment: Employed on low-speed water circulation pumps, aerators, and large mixing agitators.
Power Generation Plants: Monitoring induced draft (ID) and forced draft (FD) fans, as well as main cooling infrastructure elements.

Frequently Asked Questions (FAQ)

Q:Why choose the Velomitor "CT" over a standard Velomitor?
A:Standard piezo-velocity sensors lack the low-end performance needed for slow-moving equipment. The CT version optimizes solid-state electronics to track low-frequency hazards like cooling tower fan imbalance, gearbox issues, and structural looseness.
Q:Is it cross-compatible with existing monitoring systems?
A:Yes. The transducer integrates seamlessly into standard machinery monitoring platforms. This includes the Bently Nevada 3500/42M or 1900/65A monitors without forcing system re-calibration.

Q: How is this sensor grounded?
A:The internal electronics of the Velomitor CT are completely isolated from the outer case. This minimizes ground-loop noise when mounted directly to metal machinery housings.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-04-99-01
Mounting Hardware Option	Stud M6x1 with 3/8-in 24 adapter
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
