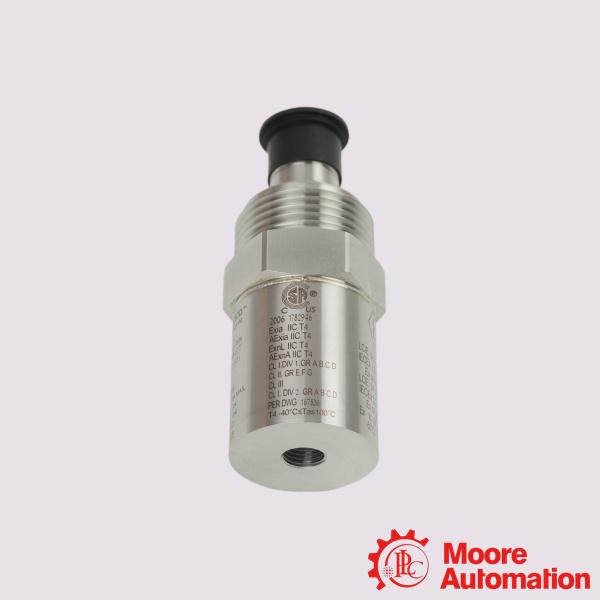

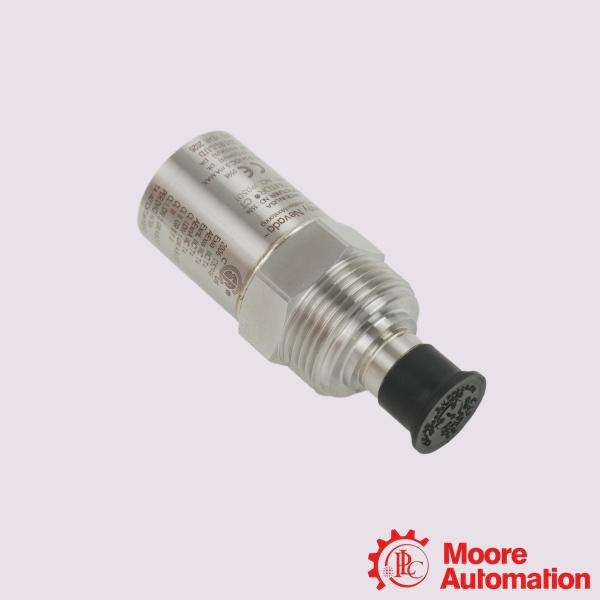

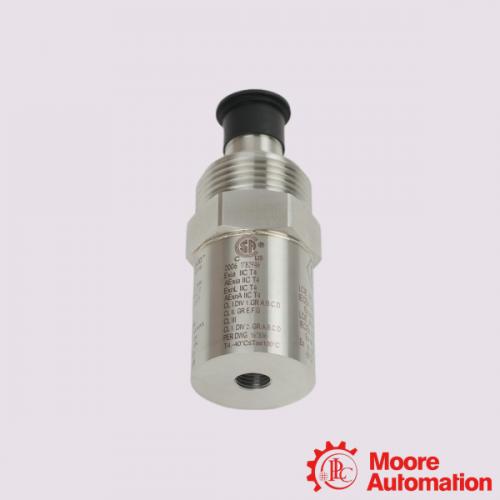

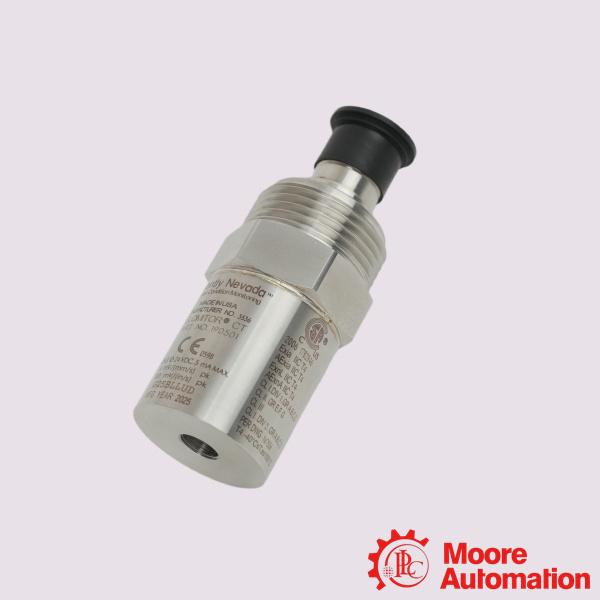

190501-06-99-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-06-99-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-06-99-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-06-99-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-06-99-01 is a specialized Velomitor CT (Cooling Tower) Velocity Transducer manufactured by Bently Nevada. It is specifically engineered to measure low-frequency casing vibration on slow-speed machinery.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Condenser Cooling Fans: Protecting slow-speed induced-draft and forced-draft fans in thermal power plants.
Fin-Fan Coolers: Condition monitoring for overhead condenser air coolers used in refining and chemical processing.
Fan Assemblies: Monitoring severe imbalances, structural loosening, or aerodynamic issues on large, low-speed fan blades.
Fan Motors: Tracking structural and bearing vibrations transmitted through the motor housing.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this transducer?
A:It is optimized for cooling towers and air-cooled heat exchangers. It explicitly tracks low-speed fan assemblies operating between 100 to 300 rpm (capable down to 90 rpm). It simultaneously captures vibrations originating from the fan blades, gearboxes, and electric drive motors.
Q:Can I extend the integrated cable if 32 feet is too short?
A:Yes. According to the Bently Nevada 190501 Datasheet, you can extend the field wiring up to a maximum length of 305 metres (1,000 feet) using part number 02173006 twisted-shielded cable with zero signal degradation. Extensions must be properly spliced or routed via an intermediate junction terminal.

Q:Is it cross-compatible with older Velomitor systems?
A:Yes. It is natively compatible with standard machinery protection systems such as the Bently Nevada 3500 series and the 1900/27 monitors. Because it shares the identical 100 mV/in/s scale factor, it can act as a direct replacement without requiring firmware reconfiguration or scaling changes inside your monitoring software.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-06-99-01
Mounting Hardware Option	Stud 3/8-in 24 to 1/4-in 28
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Base Strain Sensitivity	0.43 mm/s/μstrain (0.017 in/s/μstrain)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
