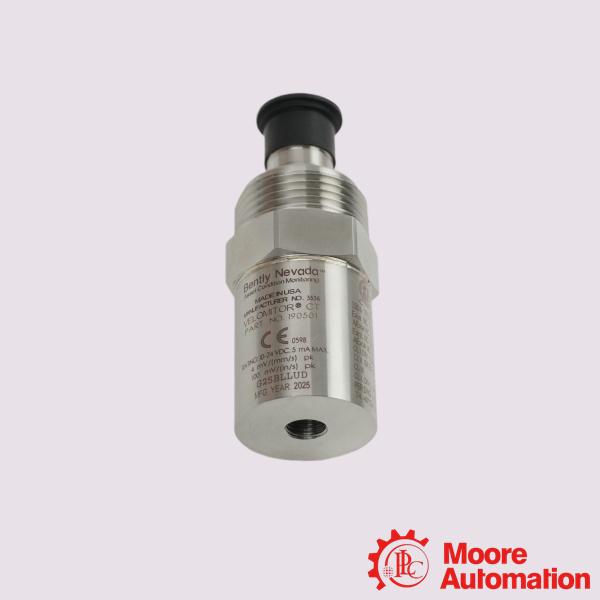

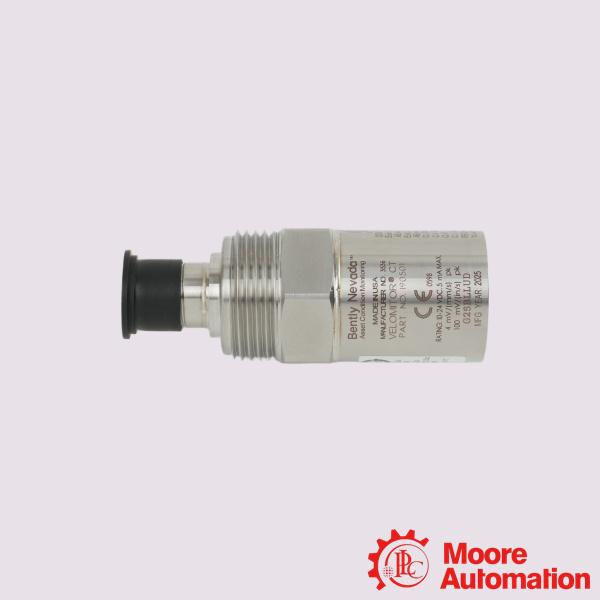

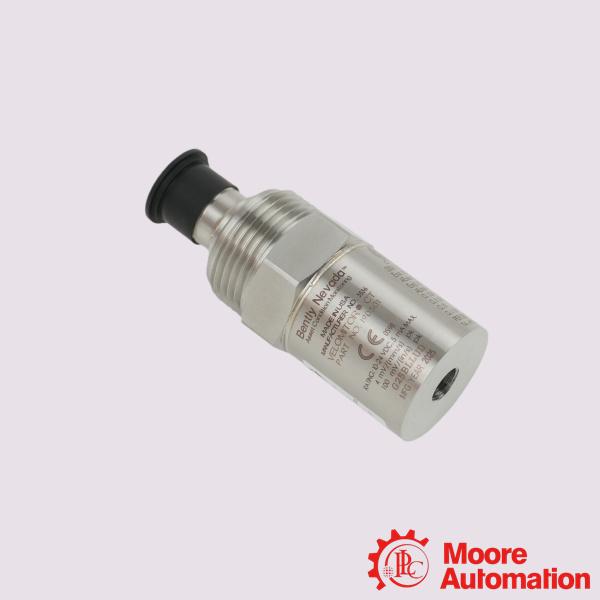

190501-05-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-05-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-05-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-05-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-05-99-00 is a specific configuration of the Velomitor CT (Cooling Tower) Velocity Transducer, engineered primarily for low-frequency machinery vibration monitoring in wet, harsh industrial environments.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on
cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Oil & Gas (Refining and Petrochemical): Protecting crucial heat-rejection systems in aggressive environments.
Power Generation: Ensuring the mechanical health of cooling components in thermal, combined-cycle, and nuclear power plants.
Chemical Processing & Fertilizer Plants: Preventing unexpected failures on large fan systems subjected to continuous corrosive duty.
Heavy Manufacturing: Supporting asset health programs in steel mills, mining operations, and pulp/paper plants.

Frequently Asked Questions (FAQ)

Q:What is the primary application for this transducer?
A:It is designed for monitoring low-speed machinery operating at or above 90 RPM. Its most common applications include cooling tower fans and air-cooled heat-exchanger fan assemblies. It captures vibrations from the fan blade assembly, motor, and speed reducer.
Q:How does the "CT" version differ from a standard Velomitor?
A:The standard Velomitor (such as the 330500) is optimized for higher-speed machinery. The Velomitor CT features a specialized internal core designed to track lower frequency ranges (down to 1.5 Hz), making it sensitive enough to detect issues in slow-turning fan rotors.

Q:Can the included cable be extended?
A:Yes. While this exact configuration comes with a 32-foot cable, the internal electronics support a maximum cable length of 305 meters (1,000 feet) without any signal degradation.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-05-99-00
Mounting Hardware Option	Adhesive Stud M6x1 with 3/8-24 adapter
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%.
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
