190501-05-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:

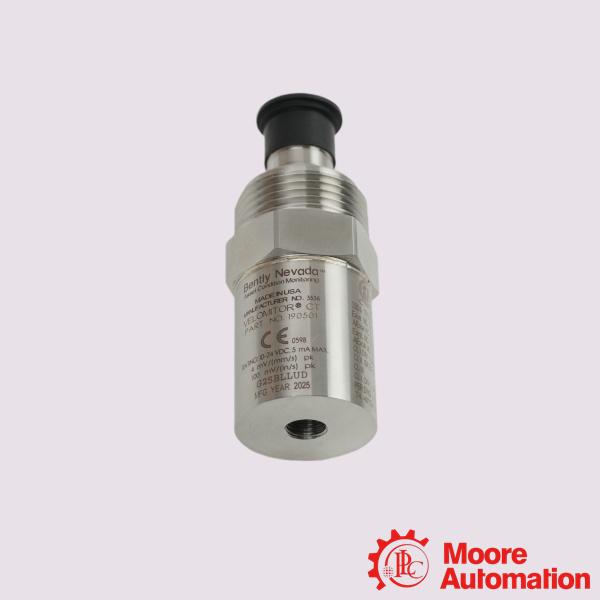

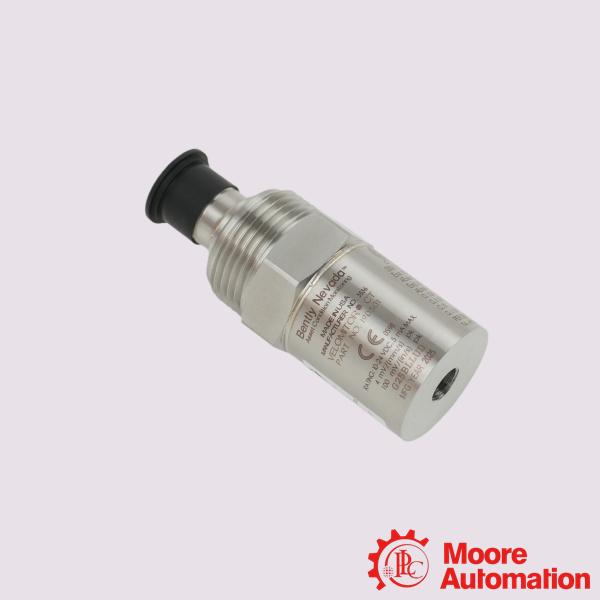

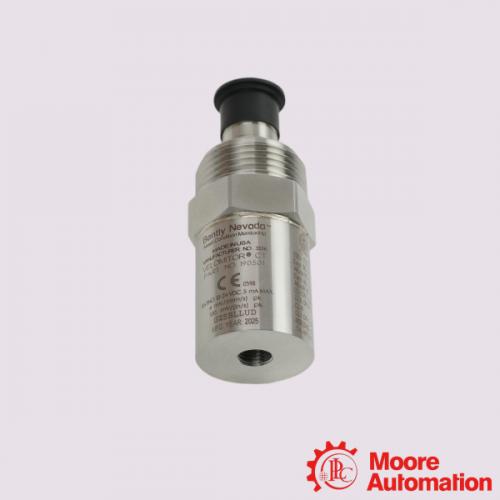

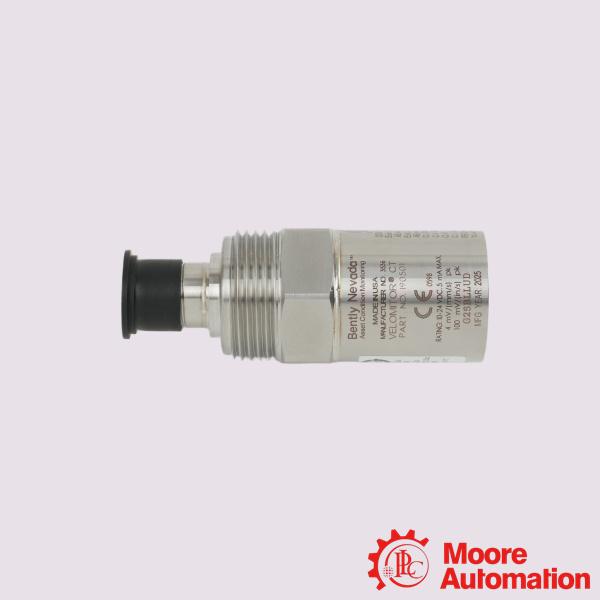

Bently Nevada 190501-05-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-05-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-05-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-05-00-01 is a specialized, low-frequency Velomitor CT (Cooling Tower) Velocity Transducer used to track machinery casing vibration.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Power Generation: Used in both thermal and nuclear plant cooling towers to maintain uptime.
Water & Wastewater Processing: Deployed on massive slow-moving aerators and high-volume fluid pumps.
Petrochemical & Refining: Essential for large fin-fans and cooling towers managing volatile chemical processes.
Gearbox Degradation: Monitoring mechanical stress frequencies passing into the casing.

Frequently Asked Questions (FAQ)

Q:What monitoring systems are compatible with this transducer?
A:It interfaces directly with the Bently Nevada 3500 Series Machinery Protection System via compatible velocity input modules. It can also be integrated into legacy 3300 series monitors or connected to distributed control systems (DCS) through vibration transmitters.
Q:How should the device be oriented and mounted?
A:The transducer can be mounted in any physical orientation without affecting performance. Because the "-05" suffix omits a factory stud, you must supply your own mounting hardware or plate matching the internal base threads. Always torque the installation base to 4.5 N-m ± 0.6 N-m (40 in-lbf) to ensure accurate vibration transmission across the casing.

Q:How should this sensor be physically installed?
A:You must mount it firmly on the machine casing using the specified adhesive stud. Ensure the casing surface is perfectly clean and flat to avoid false low-frequency noise.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-05-00-01
Mounting Hardware Option	Adhesive Stud M6x1 with 3/8-24 adapter
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
