190501-01-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
20x15x4cm
Weight:
0.75kg
Country of Origin: :
USA
Description:

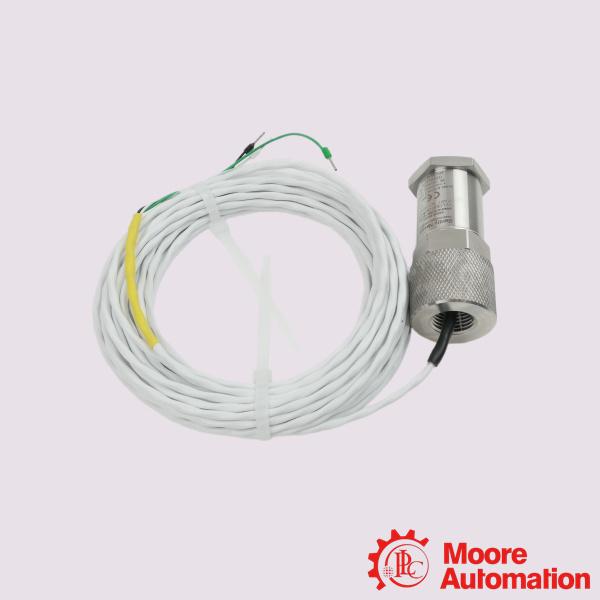

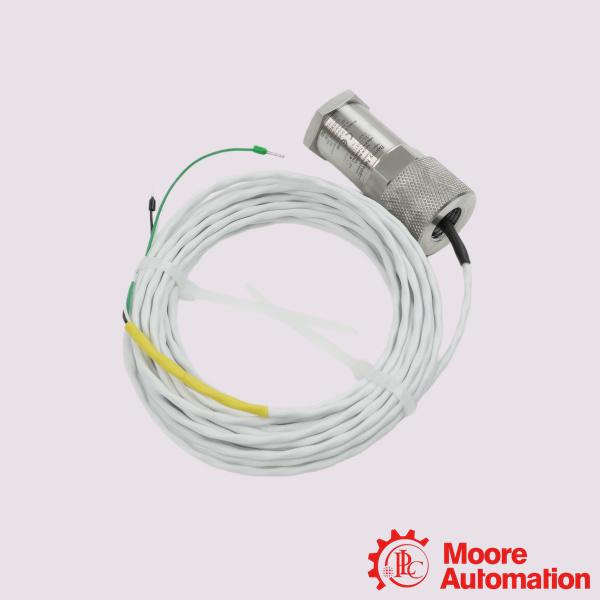

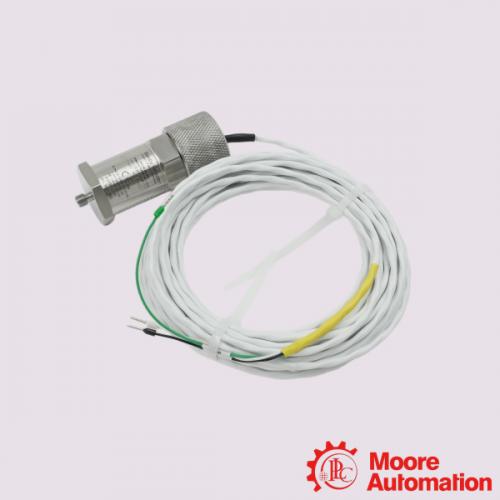

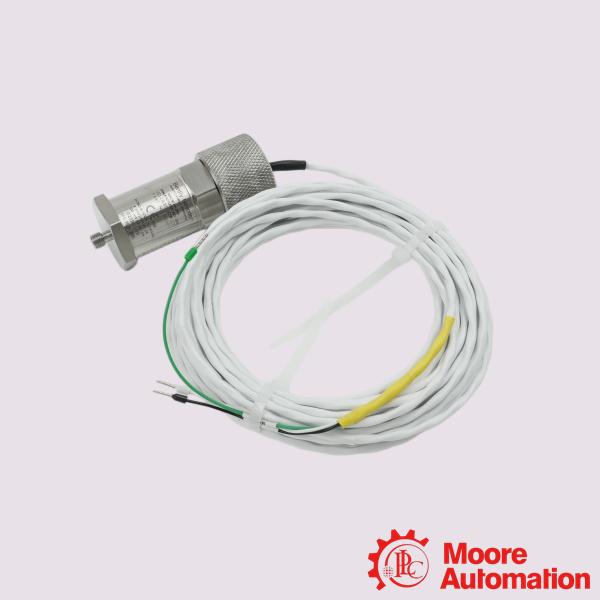

Bently Nevada 190501-01-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-01-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-01-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-01-99-00 is a Velomitor CT (Cooling Tower) Velocity Transducer, engineered specifically to measure low-frequency casing vibration velocity on slow-speed industrial fans and heat exchangers. The Velomitor CT is a low-frequency variant of our standard Velomitor Piezo-velocity Sensor. It is purpose-built to measure casing vibration velocity on fan assemblies for cooling towers and air-cooled heat exchangers operating at or above 90 rpm (typically 100 to 300 rpm). The Velomitor CT Transducer is capable of measuring vibration amplitudes at these low frequencies, as well as the vibration frequencies produced by the fan motor and speed reducer.

Application:

Power Generation: Used on cooling towers for Coal-Fired Plants and Combined-Cycle Gas Plants.
Oil & Gas: Installed in Petroleum Refining and petrochemical plants on fin-fan units to ensure heat dissipation.
Chemical & Fertilizer Processing: Shielded by its 316L stainless steel case to withstand corrosive ambient steam and vapors.
Pulp, Paper, & Metals Manufacturing: Applied to heavy-duty plant utilities keeping primary process loops cool.

Frequently Asked Questions (FAQ)

Q:What mounting torque should be applied?
A:When seating the 3/8-24 thread stud onto the milled casing surface, the recommended torque limit is 4.5 N·m (40 in·lb) maximum. Ensure the mounting location is flat, clean, and entirely free of debris to avoid signal dampening.
Q:Does it require calibration adjustment if replacing a traditional Velomitor?
A:No calibration is needed if swapping out a failed Velomitor CT of similar electronic sensitivity. However, if you are upgrading from a standard 330500 Velomitor (which cuts off at 4.5 Hz), verify that your monitor configuration file accepts the lower 1.5 Hz filter threshold to accurately log lower RPM faults.

Q:Is this sensor compatible with my existing Bently Nevada monitors?
A:Yes. The 100 mV/in/s sensitivity profile directly pairs with standard machinery protection monitors. It interfaces perfectly with the Bently Nevada 3500 System via the 3500/42M or 3500/46M monitor cards, as well as the distributed 1900/65A monitors.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-01-99-00
Mounting Hardware Option	Stud 3/8-in 24 to 3/8-in 24
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
