190501-02-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.5x3.5x3cm
Weight:
0.32kg
Country of Origin: :
USA
Description:

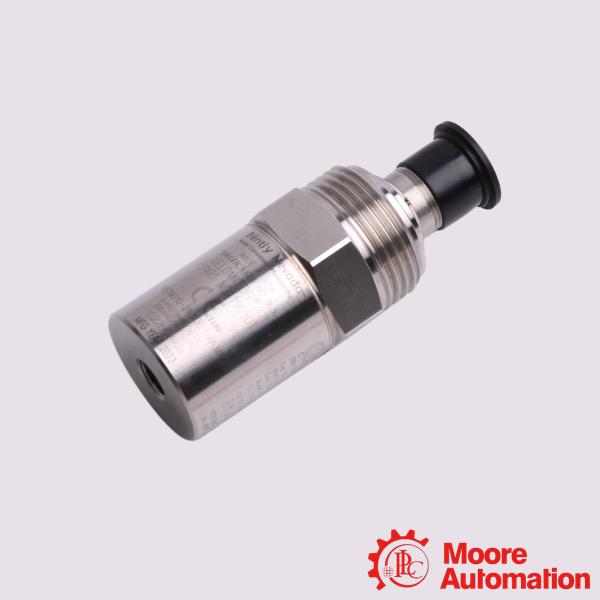

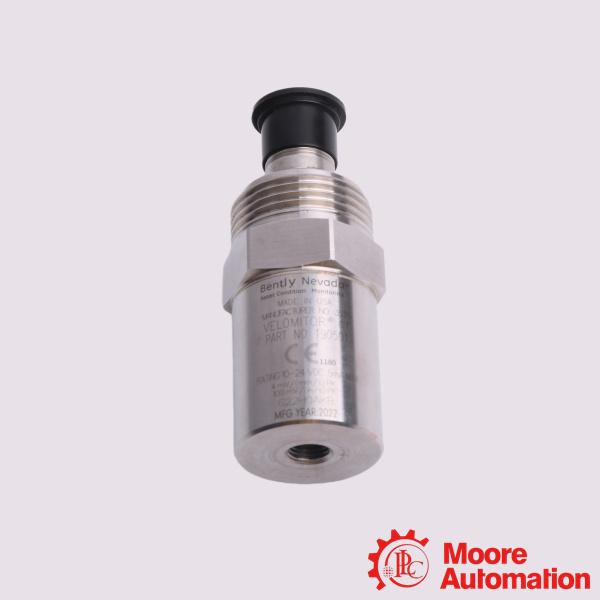

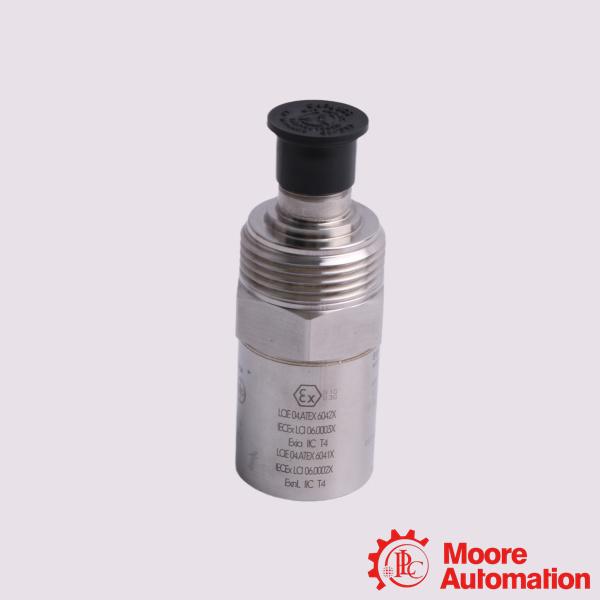

Bently Nevada 190501-02-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-02-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-02-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-02-00-01 is a Velomitor CT (cooling tower) velocity sensor designed for low-frequency vibration monitoring of cooling towers and air-cooled heat exchanger fan assemblies. The Velomitor CT velocity sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor. It is specifically designed for measuring the casing vibration velocity of cooling towers and air-cooled heat exchanger fan assemblies operating at speeds not less than 90 rpm (typically 100–300 rpm). This sensor can detect not only the vibration amplitude corresponding to the above speeds but also the vibration frequency generated by the fan motor and reducer.

Application:

Power Generation Facilities: Used on critical heat removal equipment like cooling tower fans in coal-fired, combined-cycle, and hydroelectric plants.
Petrochemical & Petroleum Refining: Monitors large air-cooled heat exchangers (fin-fans) handling volatile chemical processing streams.
Oil & Gas Processing: Essential for offshore production platforms and gas processing plants where cooling towers manage thermal loads.
Heavy Manufacturing: Deployed across pulp & paper mills, steel/metal plants, and mining operations to monitor industrial ventilation and wastewater treatment fans.

Frequently Asked Questions (FAQ)

Q:What is the polarity of the pins?
A:The electrical system uses a 2-pin top connector. Pin A goes positive relative to Pin B when the measured machine vibration moves axially from the base toward the top of the transducer.
Q:Can I use a long cable run with this transducer?
A:Yes. The maximum continuous length of standard cable without signal degradation is 305 meters (1,000 feet). However, the factory maximum continuous unspliced spool is 91.44 meters (300 feet); longer runs require an inline connector or field splice.

Q:How do you verify or calibrate this device in the field?
A:Because it functions at low frequencies, standard portable shakers may not accurately test its low-end range. You can use field calibration tools like the Model 9210D Low-Frequency Portable Vibration Calibrator to conduct loop checks down to running speeds as low as 42 CPM to verify alerts and alarms.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-02-00-01
Mounting Hardware Option	Stud 3/8-in 24 to 1/2-in 20
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
