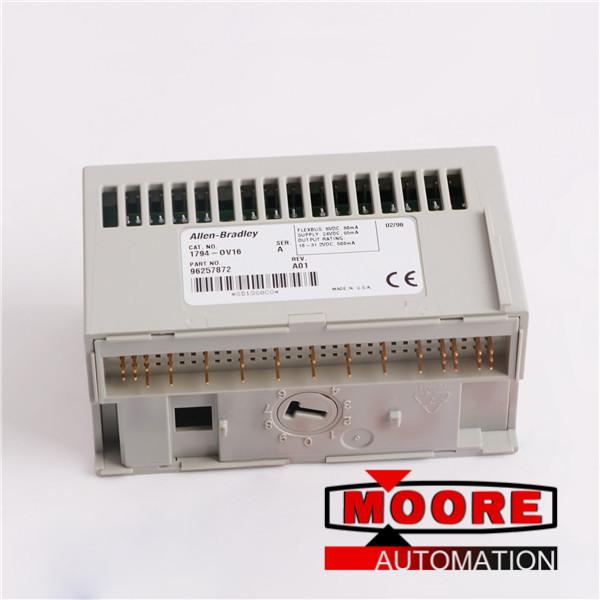

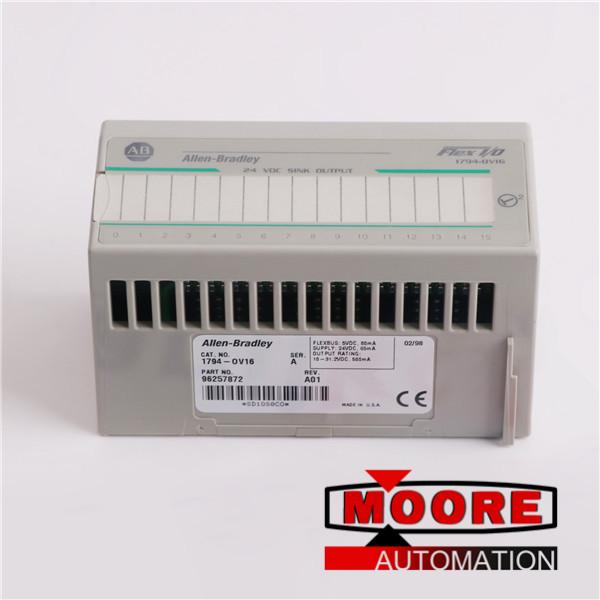

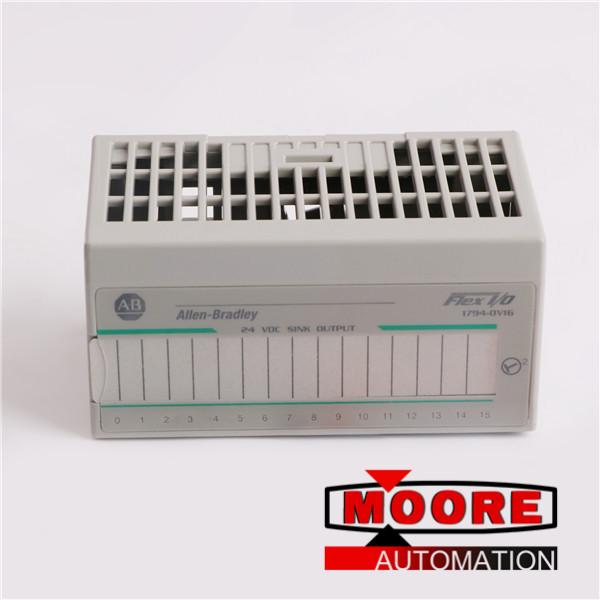

1794OV16 AB | 1794-OV16 Flex I/O Module

in stock#

Brand/ Manufacturer:
Dimensions:
10.2 cm x 5.1 cm x 5.1 cm
Weight:
0.1 KG
Country of Origin: :
USA
Description:
1794-OV16 Flex I/O Module

Inquiry now

Mfr. Part Number:	1794-OV16

Manufacturer:	/ Automation

Description:	1794-OV16 Flex I/O Output Module 24V DC, 16 Sink Outputs

Full Description:	1794-OV16 Flex I/O Output Module, 24V DC, 16 Not Protected Sink Outputs, Non-Isolated, Output Current Rating: 8.0A (16 outputs @ 0.5A), 16-Yellow Status Indicators; Module outputs are not fused. Fusing is recommended

UPC / GTIN:	10612598172792

Status:	Current Product

Description: The 1794-OV16 Flex I/O Digital Sinking Output Module has 16 Sinking Outputs, a 24V DC On-state Voltage nom., and a 8.0A Output Current Rating. It also operates with a 500mA per Channel On-state Current max. and a 0.5mA max. Off-state Leakage .

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 1794-OV16 is a 1794 FLEX Digital DC Output Module. It is fitted inside the terminal bus, making a connection with the field devices and the I/O bus. These modules can be inserted or removed under power since the I/O module does not have any direct wiring. It in turn saves time and removes system restarting inefficiency.
The 1794-OV16 module has 16 current sinking outputs. It has 24 Volts DC nominal On-State output voltage, 10 to 31.2 Volts DC On-State output voltage range and 500 mA per channel with 8 A per module maximum On-State output current. It has a maximum output delay time of 0.5 milliseconds from Off-to-On and 1.0 milliseconds from On-to-Off. It has a maximum power dissipation of 4.2 Watts at 31.2 Volts DC. Terminal Base units compatible with it are the 1794-TB3 and the 1794-TB3S. It has an external power supply of 10 to 31.2 Volts DC voltage with a 5% AC ripple and 20 to 65 mA current. It is installed by simply snapping it onto the DIN rail. It has various communication options such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O.
The 1794-OV16 module has 16 yellow LED status indicators for each channel that indicate the corresponding input device and output signal. It also has XT versions of standard modules for operating in extreme environments which reduces panel and maintenance costs. It has 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) operating temperature and 5 to 95% noncondensing relative humidity.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Automation	On-state Current max.	500mA per Channel
Brand		Off-state Leakage	0.5mA max.
Part Number/Catalog No.	1794-OV16	On-state Voltage Drop max.	0.2V DC max.
Product Type	Flex I/O Digital Sinking Output Module	Flexbus Current	80mA
Outputs	16 Sinking	Power Dissipation	4.2W @ 31.2V DC max.
On-state Voltage nom.	24V DC	Thermal Dissipation	14.3 BTU/hr. @ 31.2V DC max.
Output Current Rating	8.0A	UPC	10612598172792
Off-state Voltage max.	31.2V DC
