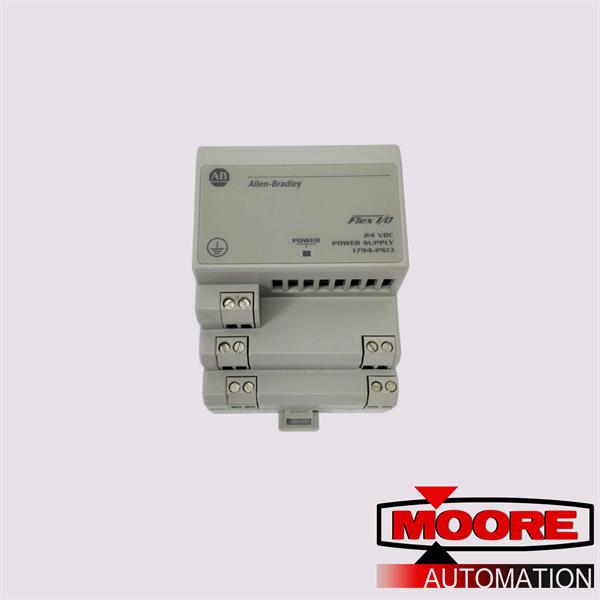

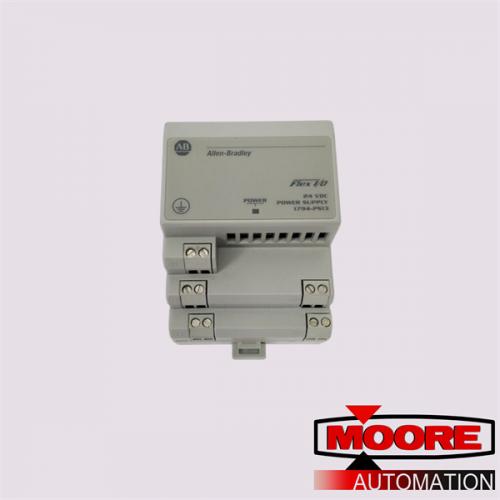

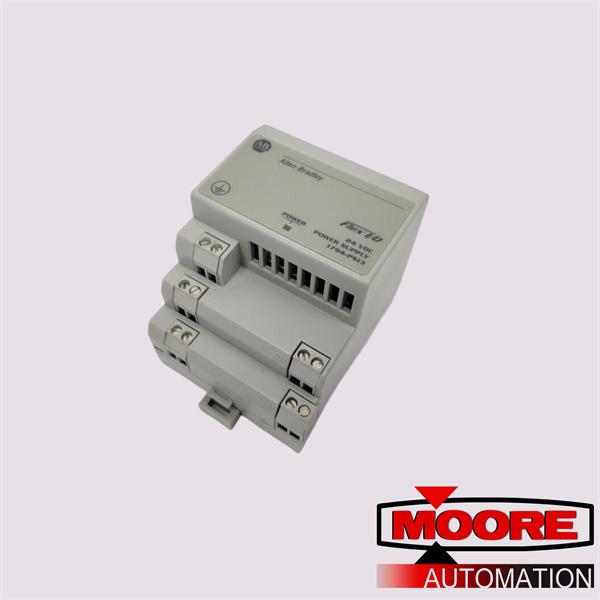

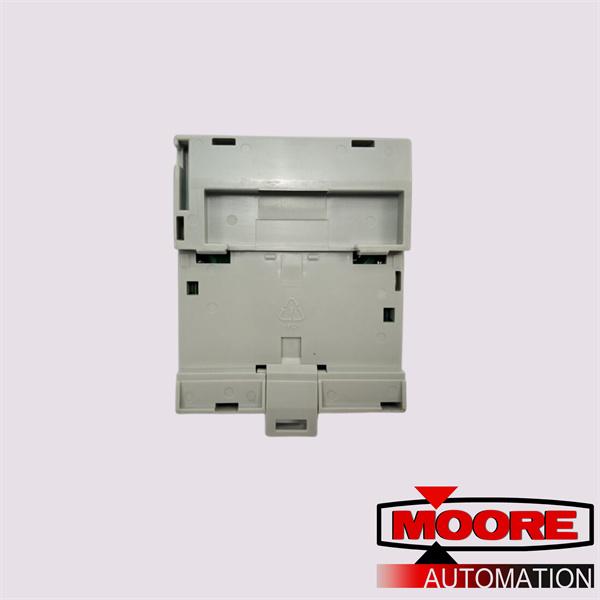

1794-PS13 | Power supply

in stock#

Brand/ Manufacturer:
Dimensions:
14 cm x 13 cm x 3.5 cm
Weight:
0.25 kg
Country of Origin: :
USA
Description:
1794-PS13 Power supply

Inquiry now

Mfr. Part Number:	1794-PS13

Manufacturer:	/ Automation

Description:	1794-PS13 Power supply

Full Description:	1794-PS13 Power supply The 1794-PS13 is a Flex I/O power supply. This power supply has a nominal supply voltage of 120V AC, 50/60 Hz; 0.6 A max. and 230V AC, 50/60 Hz; 0.42 A max with a voltage range of 85-264VAC, 47-63 Hz. This power supply module is used to provide power to the Flex I/O modules and adapters.

Status:	Discontinued by manufacturer

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 1794-PS13 is a Flex I/O power supply. This power supply has a nominal supply voltage of 120V AC, 50/60 Hz; 0.6 A max. and 230V AC, 50/60 Hz; 0.42 A max with a voltage range of 85-264VAC, 47-63 Hz. This power supply module is used to provide power to the Flex I/O modules and adapters. It has a maximum input current of 0.7 Amperes and able to withstand an inrush current of 40 A typical, 1 AC cycle @ Vin 265V AC, 55 °C
The 1794-PS13 supports the installation method of the entire PowerFlex I/O system. It supports daisy chaining of the supply output, to power up the supported adapters and may also be used in combination with AC and DC modules. This power supply has built-in indicator that energizes Green when the output voltage is greater than 20.4V DC, but less than 28V DC and remains OFF when no power applied to the power supply, output voltage exceeded 35V DC, and overvoltage protection shut the unit down and output current is above 1.4 A..

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer

Automation

Thermal Dissipation

23.9 BTU/hr

Output Current

1.3 A

Part Number/Catalog No.

1794-PS13

Brand

Product family:

Flex I/O system

Product Description:

Flex I/O Power Supply

Input Voltage range:

85-264VAC

Input Frequency range:

47-63 Hz

Nominal input voltage:

120V AC, 50/60 Hz; 0.6 A max. 230V AC, 50/60 Hz; 0.42 A max.

Maximum input current:

0.7 A

Output power:

31.2 Watts

Output surge:

Sufficient to drive 4 adapters

Overcurrent protection:

1.4 A

Power dissipation, max:

7 W

Product Type

Flex I/O DC Power Supply Module

Supply Voltage nom.

230V AC, 47-63Hz, 0.6A max.

Voltage Range

85-265V AC

Input Current

0.7 max.

Output Voltage nom.

24V DC

Output Voltage Range

20.4-27.6V DC

Minimum Load

0mA

Overvoltage Protection

35V DC

Isolation Voltage

2500V DC
