in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.8x2.8x2.8cmWeight:
0.12kgCountry of Origin: :
USADescription:

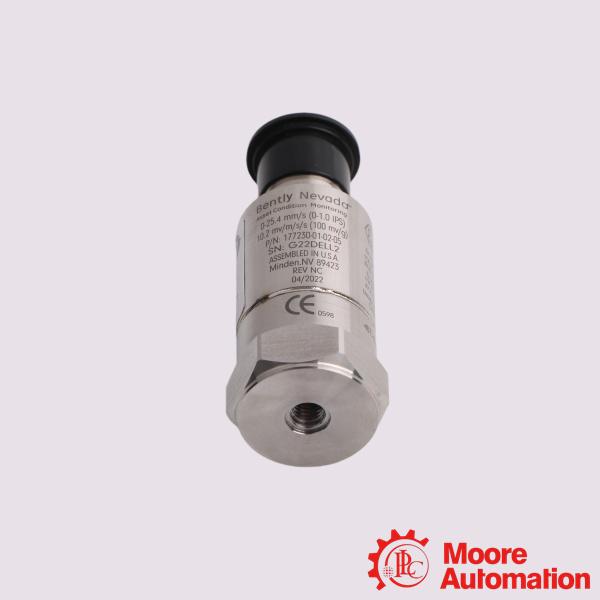

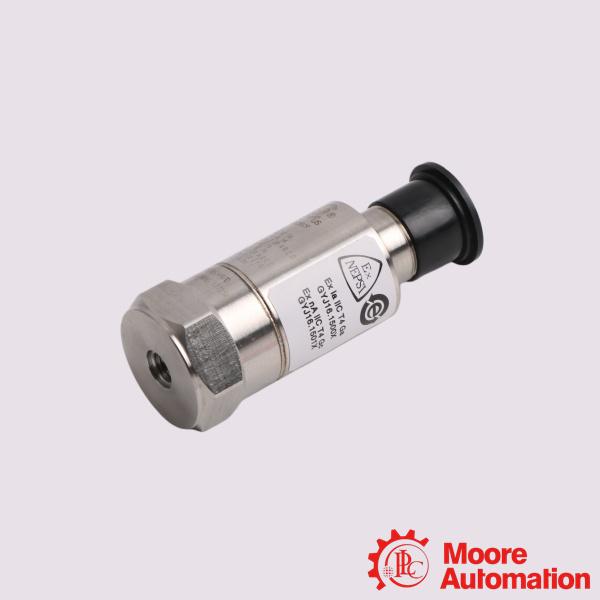

Bently Nevada 177230-01-02-05 16925-20 Seismic Transmitter
| Mfr. Part Number: |
177230-01-02-05 16925-20 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

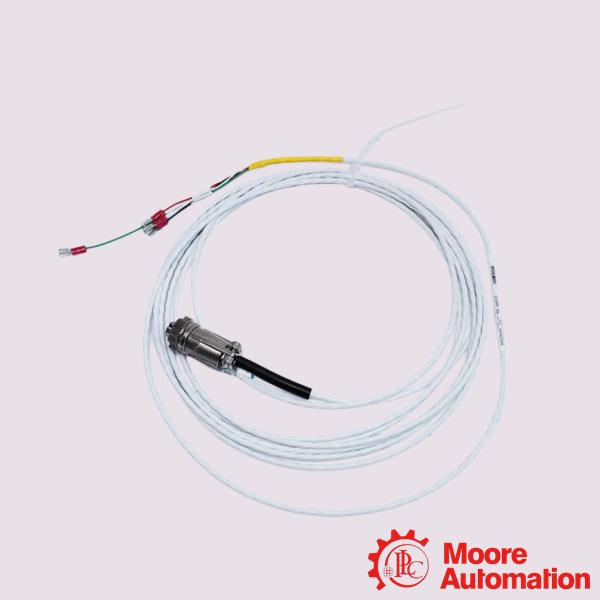

The Bently Nevada 177230-01-02-05 is a loop-powered seismic vibration transmitter for continuous monitoring of non-critical machinery such as motors, pumps, and fans. The 16925-20 is a compatible Bently Nevada interconnect cable variant commonly paired with this sensor family. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or control system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Process Pumps: Continuous vibration tracking on centrifugal water-injection pumps, crude transfer pumps, and hydrocarbon process pumps to detect cavitation or seal wear.
Cooling Tower Fans: Mounted on remote, elevated fan gearboxes where manual structural inspections are dangerous or impractical
Auxiliary Equipment: Protection monitoring on boiler feed pumps, draft fans (IDF/FDF), and water circulation machinery.
Electric Motors: Directly tracks stator or casing vibrations on large, essential electric motors driving assembly lines or heavy machinery.
Frequently Asked Questions (FAQ)
Q:How does this sensor transmit data?
A:The unit operates as a two-wire, 4–20 mA loop-powered device. It outputs a standard current signal directly proportional to the machine’s overall vibration velocity, removing the need for a separate proximity probe driver or external signal conditioner.
Q:What systems can it connect to?
A:It integrates natively into standard industrial control platforms. You can wire the 4-20 mA loop directly into a PLC (Programmable Logic Controller), DCS (Distributed Control System), or SCADA system.
Q:Can it provide raw vibration data for deep diagnosis?
A:Yes. Despite primarily delivering a 4-20 mA static value, the 177230 contains internal signal conditioning that exposes a dynamic acceleration waveform output. This raw signal can be accessed at the non-sensor end of the field wiring using a patch panel or specialized data collector for advanced diagnostic analysis.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-01-02-05 16925-20 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
3 Hz to 1 kHz (180 to 60 kcps) peak |
|
Length in feet |
20 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|
