in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.8x2.7x2.4cmWeight:
0.12kgCountry of Origin: :
USADescription:
Bently Nevada 177230-01-01-CN 16925-23 Seismic Transmitter
| Mfr. Part Number: |
177230-01-01-CN 16925-23 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

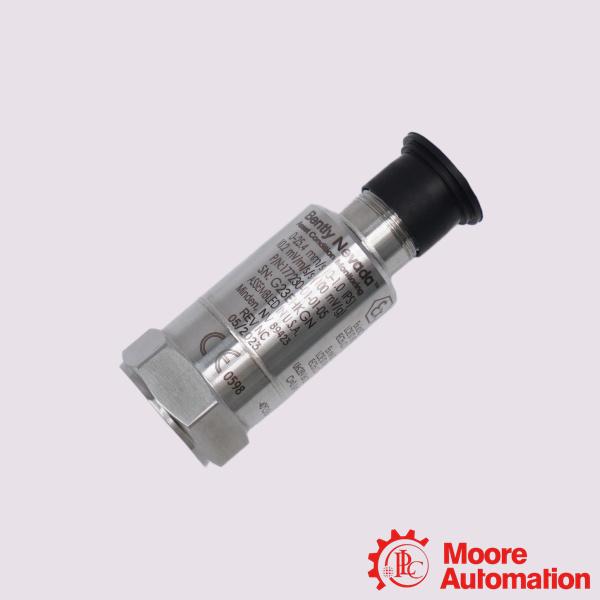

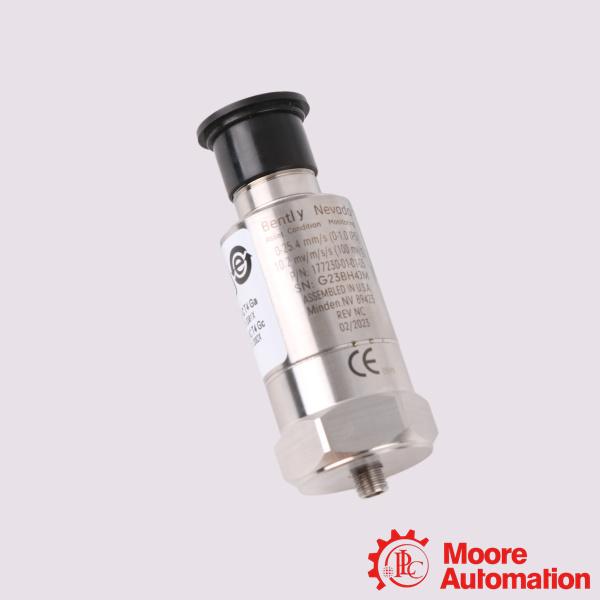

The Bently Nevada 177230-01-01-CN is an industrial, loop-powered seismic vibration transmitter to provide a direct 4-20 mA output proportional to overall vibration velocity. The number 16925-23 refers to its corresponding, specific length interconnect cable.The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Oil, Gas & Petrochemical: Used on auxiliary, non-critical process pumps and fans situated in regulated, hazardous field areas requiring explosion protection.
Power Generation: Deployed on water intake pumps, draft fans, and cooling tower components.
Water & Wastewater Treatment: Ideal for continuous monitoring of widely distributed pumping stations and aeration blowers.
Chemical Manufacturing: Protects secondary mixing, agitation, and material transfer machinery from sudden catastrophic failure.
Frequently Asked Questions (FAQ)
Q:What machinery is this transmitter best suited for?
A:It is for continuous condition monitoring of non-critical rotating machinery. It helps operators spot early asset deterioration to prevent catastrophic mechanical failures.
Q:Do I need an external proximity monitor or signal conditioner?
A:No. This device operates as a simple two-wire, loop-powered system. It processes raw vibration data internally and outputs a standard industrial 4-20 mA signal.

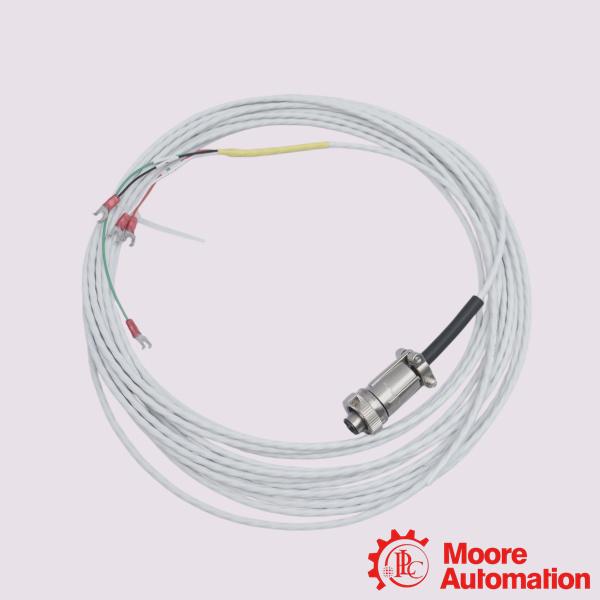

Q:What is the purpose of the 16925-23 cable?
A:The Bently Nevada 16925-23 cable is an unarmored, twisted pair interconnect cable. The suffix -23 specifies a dedicated custom length (approximately 23 feet or 7 meters). It connects the transmitter's top connector directly to your control system.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-01-01-CN 16925-23 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
23 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
