in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
7x2.5x2.5cmWeight:
0.12kgCountry of Origin: :
USADescription:

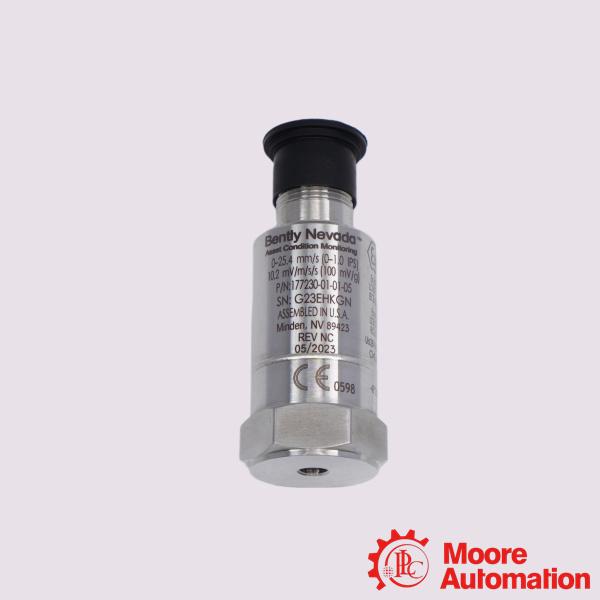

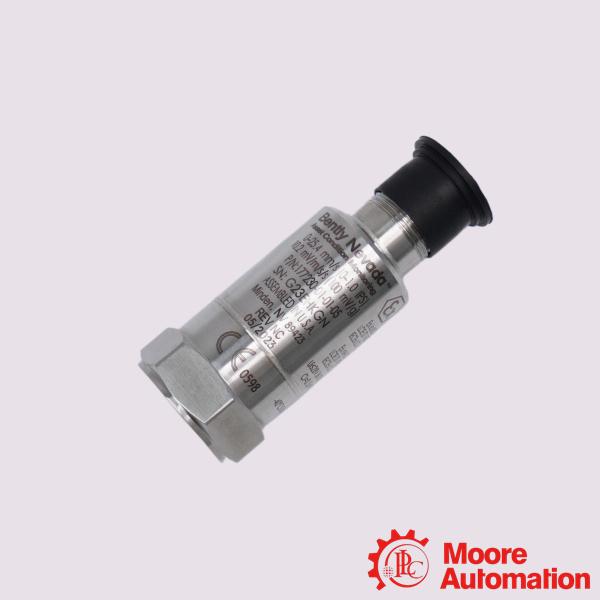

Bently Nevada 177230-01-01-05 16925-34 Seismic Transmitter
| Mfr. Part Number: |
177230-01-01-05 16925-34 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

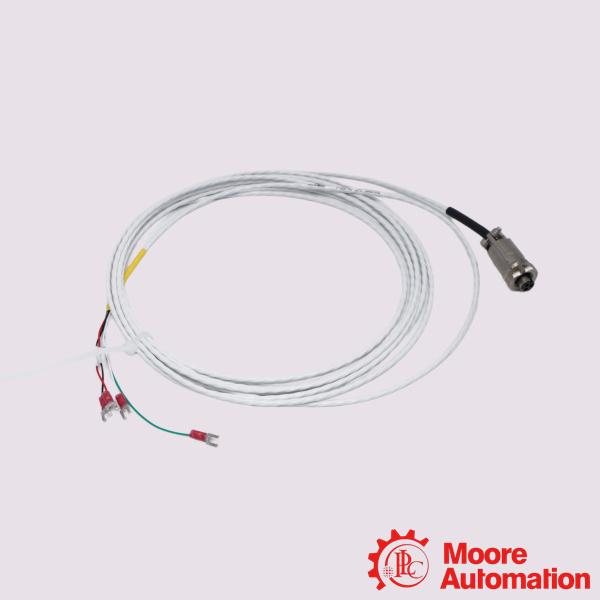

The Bently Nevada 177230-01-01-05 is a loop-powered Seismic Transmitter paired with the 16925-34 non-armored interface cable. It translates absolute machine casing vibration into an industry-standard 4-20 mA current loop signal. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Industrial Pumps & Fans: Monitors structural imbalances, shaft misalignments, or early mechanical looseness in centrifugal fluid pumps, cooling tower fans, and air-handling units.
Centrifugal & Screw Compressors: Provides continuous casing protection on localized plant air systems and process gas compressors.
Electric Motors: Tracks deterioration in stator/rotor balance and sleeve or ball-bearing wear profiles.
Small Gearboxes: Evaluates low-to-medium speed gear-mesh problems and bearing degradation before structural failure occurs.
Frequently Asked Questions (FAQ)
Q:How is the device wired to a control system?
A:The transmitter uses a 3-pin MIL-C-5015 connector. It acts as a standard loop-powered instrument: Pin A connects to the positive supply power (12-30 VDC), and Pin B serves as the 4-20 mA return loop back to your analog input card.
Q:Does this transmitter require regular calibration?
A:No. The device is factory-calibrated and requires no field adjustments, setup software, or configuration. It features an integrated self-test circuit to quickly verify operational readiness during standard maintenance loops.
Q:What mounting safety precautions should be taken?
A:The device usually mounts directly to a machine casing via a 1/4-28 UNF thread stud. If temporary diagnostic testing requires a magnetic base, do not snap the transmitter onto the metal surface. The sharp shock profile can generate an massive signal spike that may permanently damage the internal ceramic/shear sensing element. Always roll the magnetic base gently onto the machine.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-01-01-05 16925-34 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
34 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|
