in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.8x2.7x2.4cmWeight:
0.12kgCountry of Origin: :
USADescription:

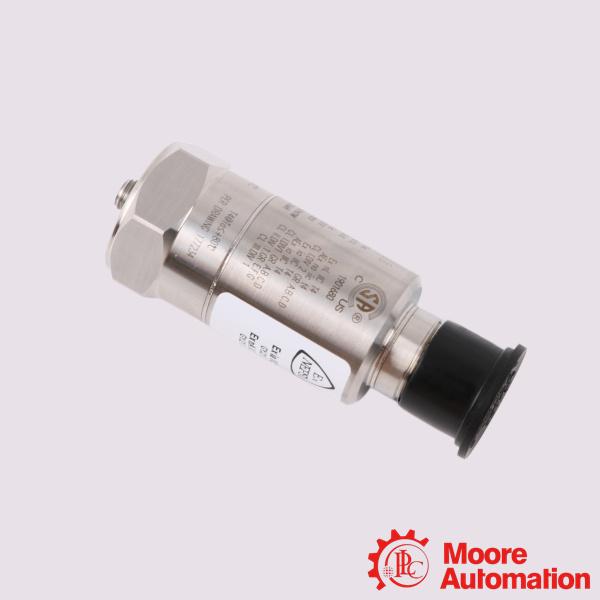

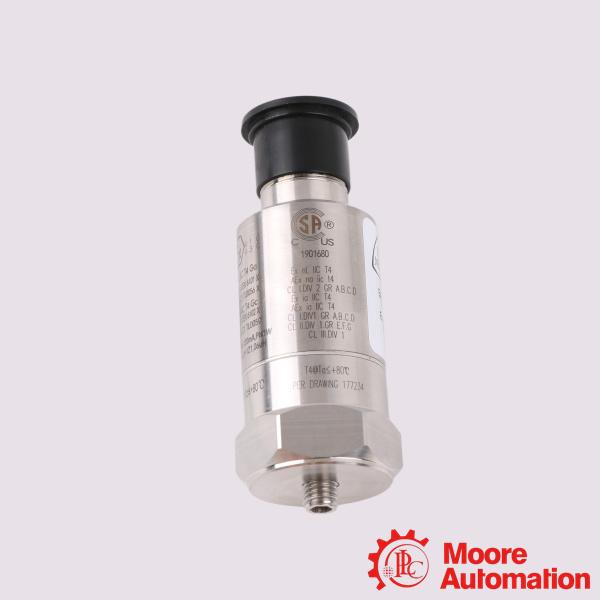

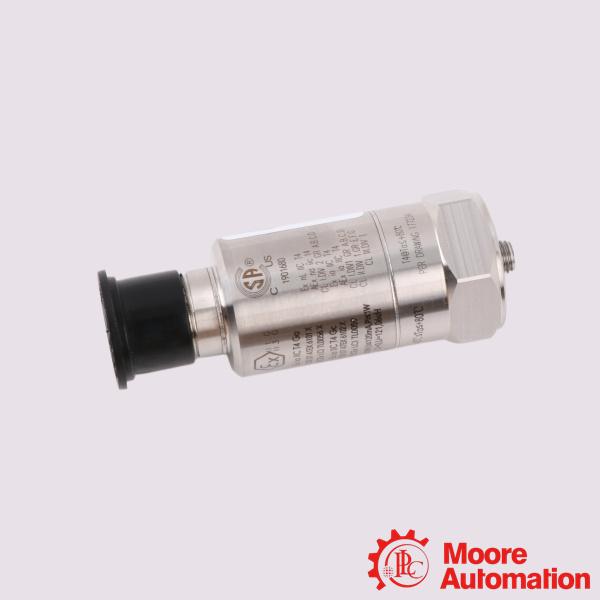

Bently Nevada 177230-01-01-CN 16710-06 Seismic Transmitter
| Mfr. Part Number: |
177230-01-01-CN 16710-06 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM design for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
Bently Nevada 177230-01-01-CN 16710-06 (Seismic transmitter) with armored interconnecting cable provides reliable vibration monitoring for general-purpose rotating and reciprocating machinery operating in hazardous industrial environments. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Power Generation: Applied to cooling tower fans, water pumps, and auxiliary draft fans. The armored cable protects against the high temperatures and physical wear common in turbine halls.
Water and Wastewater Treatment: Monitors large water supply pumps, sewage blowers, and aerators. The transmitter's 100% relative humidity tolerance handles damp environments seamlessly
Chemical & Petroprocessing: Ideal for agitators, mixers, and electric motors where the 16710-06 braided shield eliminates heavy electromagnetic interference (EMI) from surrounding variable frequency drives (VFDs).
Pulp, Paper, & Mining: Deployed on heavy-duty conveyors, crushers, and paper mill rollers. The stainless steel armor on the cable guards against falling debris, rock impacts, and sharp mechanical edge cuts.
Frequently Asked Questions (FAQ)
Q:How does the device interface with control systems?
A:The unit functions as a direct 2-wire, loop-powered 4-20 mA analog transmitter. It wires straight into standard analog input cards on PLCs, DCS architectures, or SCADA software without requiring localized field configuration or specialized signal converters.
Q:What kind of signal does this system output to the PLC?
A:The transmitter is a loop-powered device that scales its vibration readings into a standard 4-20 mA analog current loop. This makes it directly compatible with any programmable logic controller (PLC) or distributed control system (DCS) analog input module without requiring separate power blocks.
Q:What exact machinery sensors does the 16710-06 cable connect?
A:While frequently paired directly with loop transmitters like the 177230, the 16710 cable family is natively designed to mount onto Bently Nevada 330400 and 330425 Accelerometers. It features a specialized 3-socket plug sealed at one end for the sensor body and bare terminal lugs at the other end for marshaling junction boxes.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-01-01-CN 16710-06 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
6 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Electrical Isolation |
Greater than 108 ohms |
|
