in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.8x2.7x2.4cmWeight:
0.12kgCountry of Origin: :
USADescription:

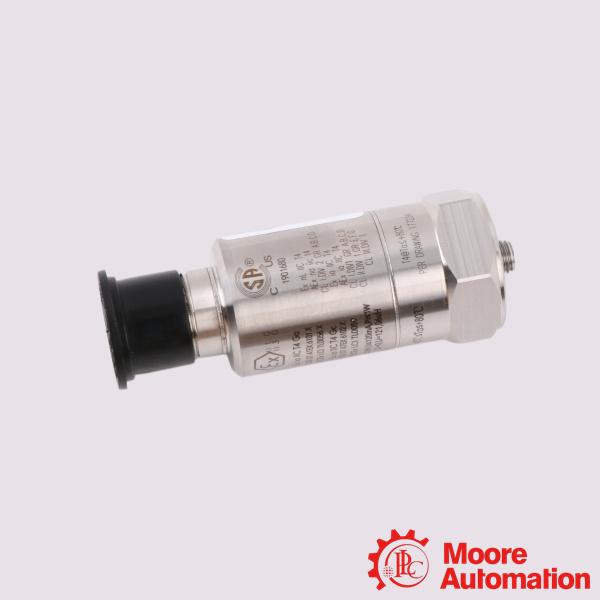

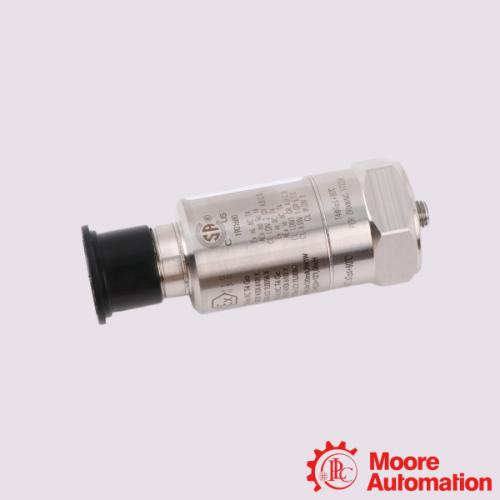

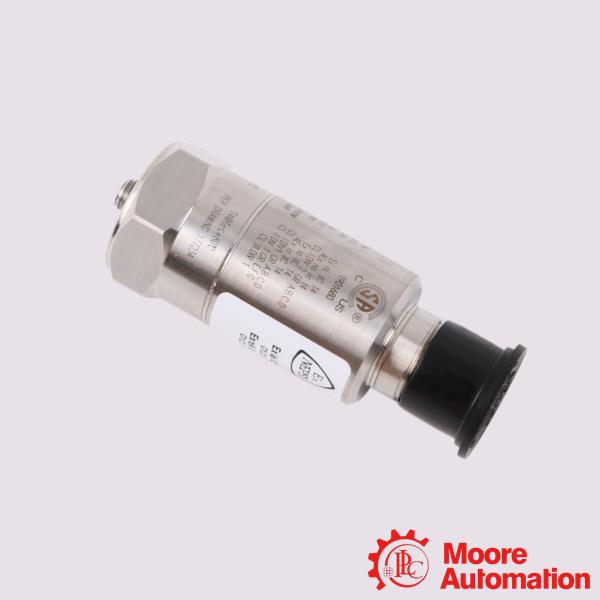

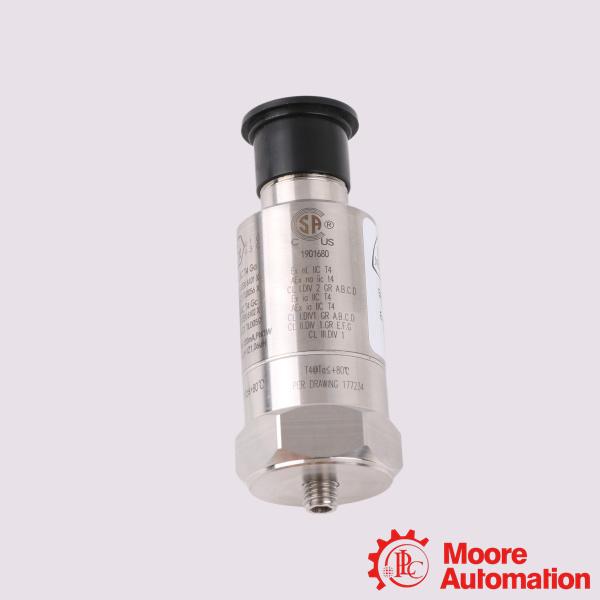

Bently Nevada 177230-01-01-CN 16710-08 Seismic Transmitter
| Mfr. Part Number: |
177230-01-01-CN 16710-08 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM design for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
Bently Nevada 177230-01-01-CN 16710-08 (Seismic transmitter) with armored interconnecting cable to deliver condition monitoring for general-purpose, non-critical, or balance-of-plant (BOP) rotating machinery.The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Pumping Stations:Monitors raw water, effluent, and high-pressure distribution pumps.
Aeration Blowers:Tracks casing vibration on centrifugal and positive-displacement blowers to spot impeller imbalance.
Cooling Tower Fans:Detects severe dynamic loads from structural looseness or blade cracks in harsh, humid environments.
Electric Motors:Directly tracks standard rolling-element bearing degradation on medium-to-large AC/DC motors.
Frequently Asked Questions (FAQ)
Q:Can I access raw vibration data from this setup?
A:Yes. While the main loop provides a processed 4-20 mA summary, the transmitter also outputs a dynamic acceleration waveform signal. You can tap into this raw signal at the non-sensor end of the field wiring using a portable data collector for advanced diagnostics.
Q:What is the function of the 16710-08 component?
A:The 16710-08 is a heavy-duty armored interconnect cable. It features a 3-socket plug on one end to connect to the transmitter, and terminal lugs on the other for junction box wiring. The -08 suffix specifies a standard cable length of 8 feet.
Q:What type of output signal does the transmitter provide?
A:It outputs a standard 4-20 mA analog current loop proportional to the machine's overall vibration velocity. It also features a separate dynamic acceleration waveform output used by technicians via patch panels for deeper diagnostic troubleshooting.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-01-01-CN 16710-08 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
8 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Electrical Isolation |
Greater than 108 ohms |
|
