in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
28x28x3cmWeight:
0.18kgCountry of Origin: :
0.12kgDescription:

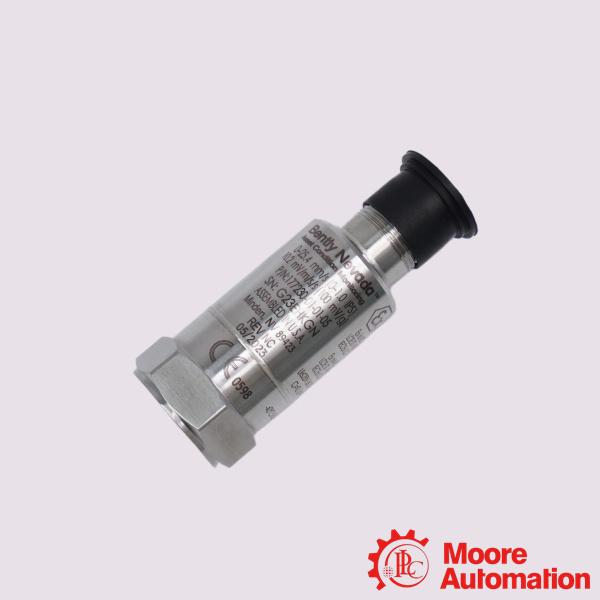

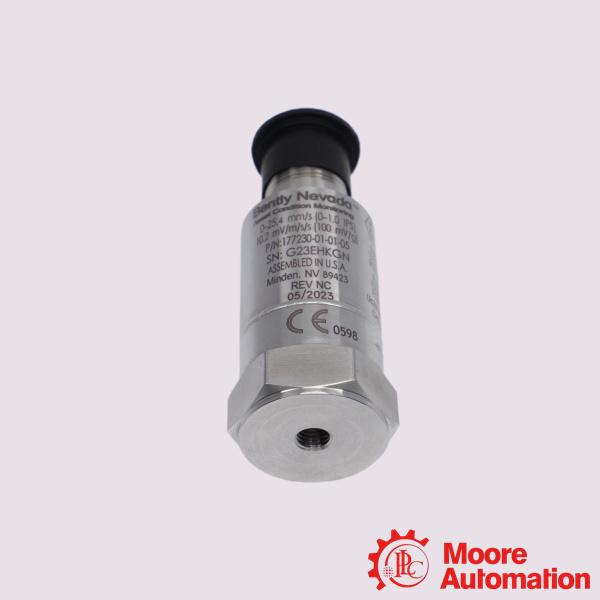

Bently Nevada 177230-01-01 16925-15 Seismic Transmitter
| Mfr. Part Number: |
177230-01-01 16925-15 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

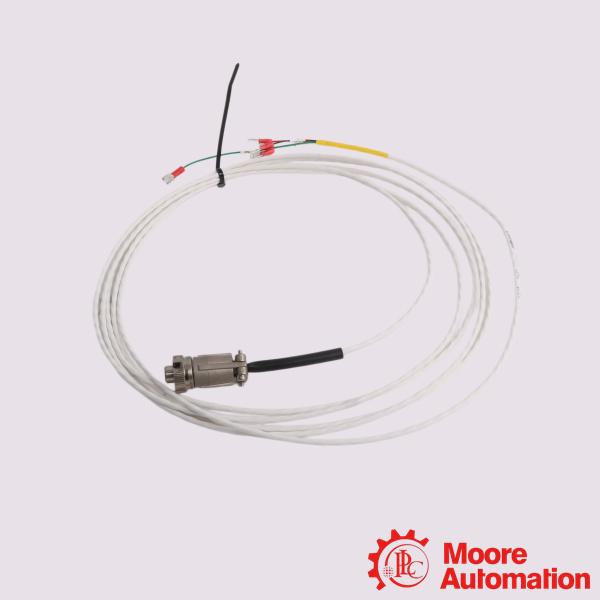

The Bently Nevada 177230-01-01 is a loop-powered seismic vibration transmitter configured with a 0 to 25.4 mm/s (0 to 1.0 in/s) measurement range and a 10 Hz to 1 kHz frequency response. It pairs with the Bently Nevada 16925-15, a 15-foot unarmored, 3-conductor shielded 22 AWG interconnect cable designed to pass the transmitter's 4–20 mA signal and dynamic waveforms cleanly to control systems like PLCs, DCSs, or SCADA architectures.The 177230 Seismic Transmitter incorporates robust CM for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter.
Application:
Power Generation: Protects balance-of-plant cooling pumps, draft fans, and water feed systems.
Oil, Gas & Petrochemical: Safely monitors auxiliary machinery in refinery and extraction environments classified as Class I, Div 1/2 or Zone 0/1 hazardous zones.
Water & Wastewater Treatment: Tracks massive submersed or dry-dock transfer pumps and aeration blowers.
Pulp, Paper & Mining: Withstands high moisture, heavy dust, and harsh ambient washes while measuring conveyor drives, pulp refiners, and exhaust systems.
Frequently Asked Questions (FAQ)
Q:How does the system wire into a plant?
A:Because it is a loop-powered device, it connects directly to an analog input card on a Programmable Logic Controller (PLC), Distributed Control System (DCS), or SCADA system. It eliminates the need for standalone proximity drivers or external signal conditioning racks.
Q:Does it require custom software configuration?
A:No configuration is needed. The unit is calibrated at the factory to translate its specific velocity scale (0–25.4 mm/s) straight into the 4-20 mA loop current. You only need to scale the 4-20 mA analog input channel inside your PLC/DCS logic to match those exact physical limits.
Q:What happens if the cable needs to be longer or armored?
A:If 15 feet is too short, Bently Nevada offers the same unarmored cable in lengths up to 99 feet. If your environment requires physical impact protection, you will need to swap to the 16710 series instead, which provides an identical internal wire construction but wrapped in stainless steel armor.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-01-01 16925-15 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
15 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
