in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
7x2.8x2.4cmWeight:
0.12kgCountry of Origin: :
USADescription:

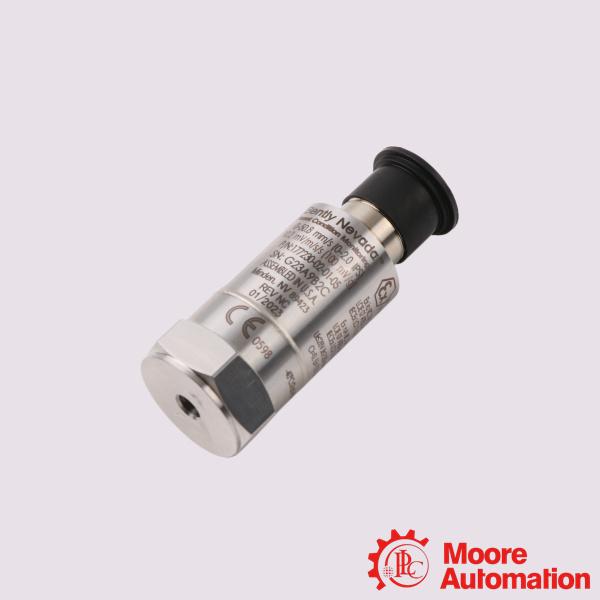

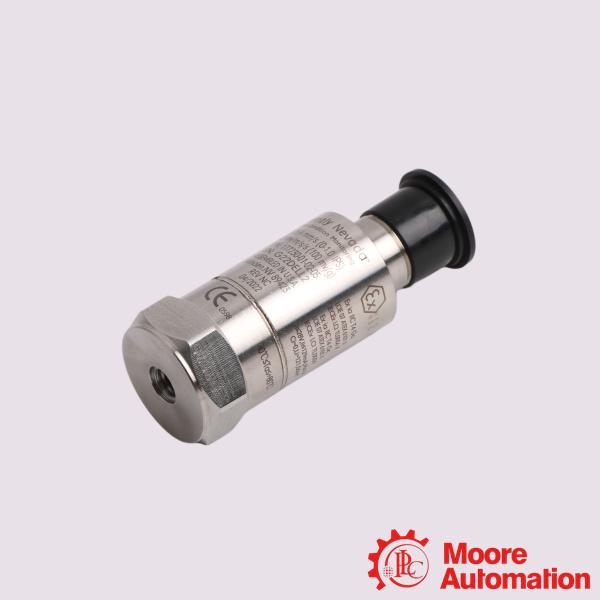

Bently Nevada 177230-00-01-05 16710-23 Seismic Transmitter
| Mfr. Part Number: |
177230-00-01-05 16710-23 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 177230-00-01-05 is a loop-powered seismic transmitter designed for continuous vibration monitoring. The alphanumeric code 16710-23 refers to a specific manufacturing batch, hardware revision, or internal tracking designation commonly found alongside this model in automated inventory catalogs. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Pumping Stations: Continuous casing vibration monitoring on massive water distribution and intake pumps.
Aerators & Blowers: Tracking mechanical looseness or unbalanced loads in wastewater treatment basins.
Cooling Tower Fans: Protecting large overhead fans from structural breakdown due to blade imbalances or gearbox wear.
Auxiliary Pumps & Motors: Monitoring boiler feed pumps, lube oil pumps, and small ventilation fans that support the primary turbines.
Frequently Asked Questions (FAQ)
Q:What type of output signal does the transmitter provide?
A:The device outputs an industry-standard 4-20 mA current loop proportional to the asset's overall vibration velocity. It also features a raw dynamic acceleration waveform output (Pin C) for advanced spectrum diagnostics.
Q:What are the electrical power requirements?
A:It requires an excitation voltage between 12 to 30 Vdc with a maximum current threshold of 40 mA.
Q:How does the device connect to monitoring systems?
A:It features a 3-pin MIL-C-5015 connector made of 316L stainless steel. Pin A handles the positive loop, Pin B handles the negative loop, and Pin C supplies the dynamic unbuffered signal. It directly integrates with PLCs, DCS networks, and SCADA systems without requiring external signal conditioning modules.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-00-01-05 16710-23 |
|
Measurement Range |
0 – 12.7 mm/s (0 – 0.5 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|

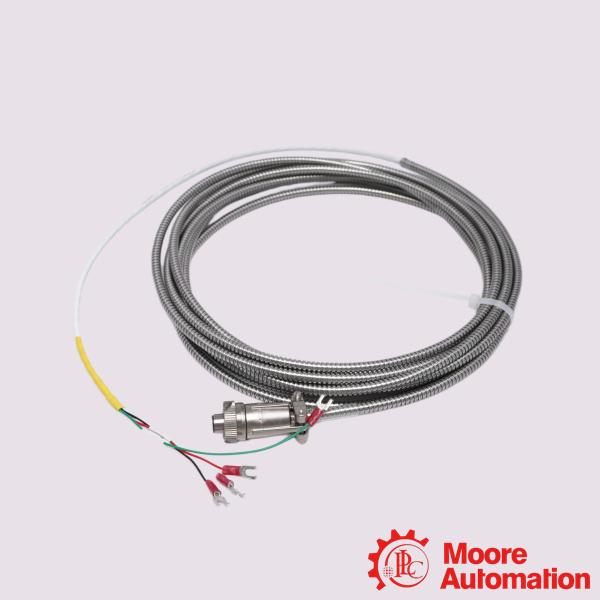

Length in feet |
23 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
