in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
7x2.8x2.4cmWeight:
0.14kgCountry of Origin: :
USADescription:

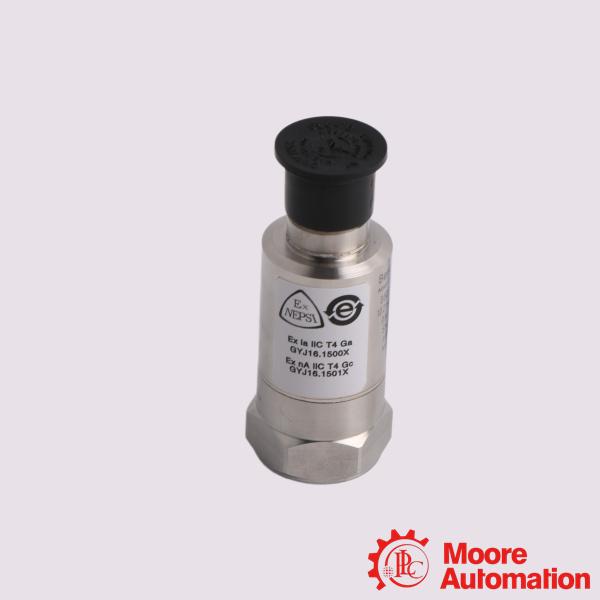

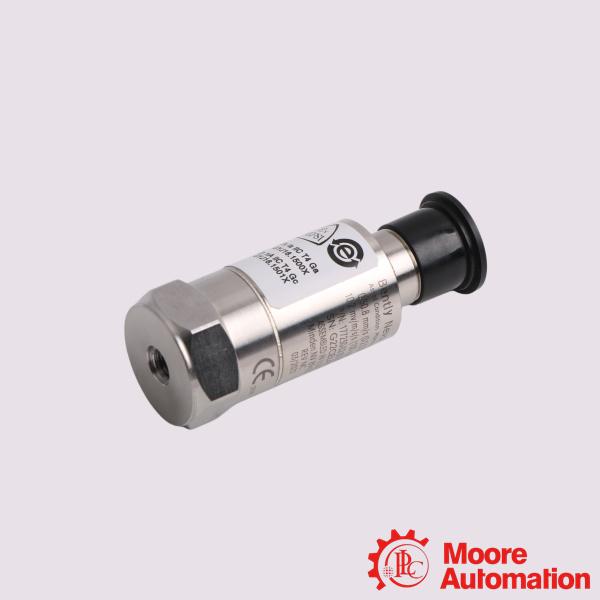

Bently Nevada 177230-00-01-05 16710-25 Seismic Transmitter
| Mfr. Part Number: |
177230-00-01-05 16710-25 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

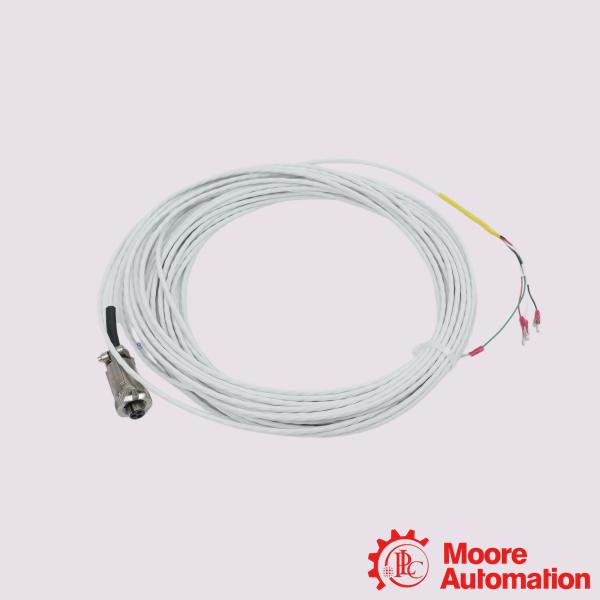

The Bently Nevada 177230-00-01-05 is a loop-powered Seismic Vibration Transmitter paired with the 16710-25 unarmored interconnect cable. This hardware combination is primarily used to monitor casing vibration on non-critical machinery and directly interfaces with PLCs, DCSs, or SCADA systems.The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Centrifugal Pumps: Tracking absolute casing vibration to discover cavitation, misalignment, or impeller imbalance.
Small Reciprocating Compressors: Continuous loop monitoring to prevent unexpected casing or frame looseness.
Cooling Tower Fans: Protecting critical cooling loops against gear assembly failures or structural fatigue.
Wastewater Submersible Pumping Units: Watching for rolling element bearing degradation.
Frequently Asked Questions (FAQ)
Q:What type of output signal does this transmitter provide?
A:It outputs a standard 4–20 mA loop signal proportional to the designated velocity range. It also features a secondary, raw dynamic acceleration waveform output used for deep diagnostics via portable data collectors.
Q:Can I mount this transmitter using a magnetic base?
A:Yes, but you must exercise extreme caution. Do not "snap" the magnetic base directly onto the machine casing. The resulting mechanical shock can exceed the sensor’s limit and permanently destroy the internal electronics. Instead, always roll the magnetic base smoothly onto the machine surface.
Q:Does it require complex field programming or calibration?
A:No. The device is explicitly designed for a plug-and-play installation with zero field configuration required. The sensitivity is fixed, mapping 4 mA to 0 mm/s and 20 mA to its full-scale value of 12.7 mm/s.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-00-01-05 16710-25 |
|
Measurement Range |
0 – 12.7 mm/s (0 – 0.5 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|
Length in feet |
25 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
