in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
25x24x3cmWeight:
0.4kgCountry of Origin: :
USADescription:

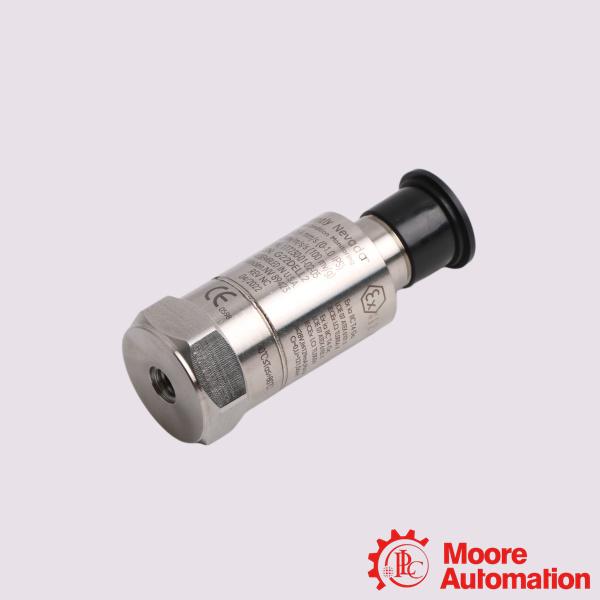

Bently Nevada 16710-20 330400-01-00 Accelerometer Acceleration Transducer
| Mfr. Part Number: |
16710-20 330400-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

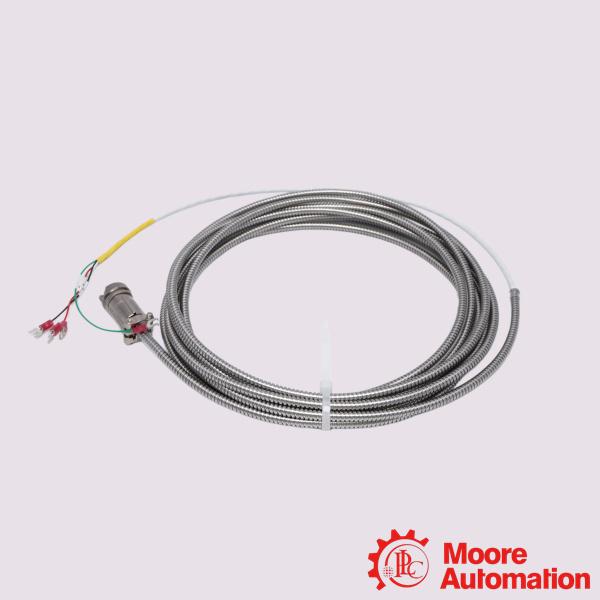

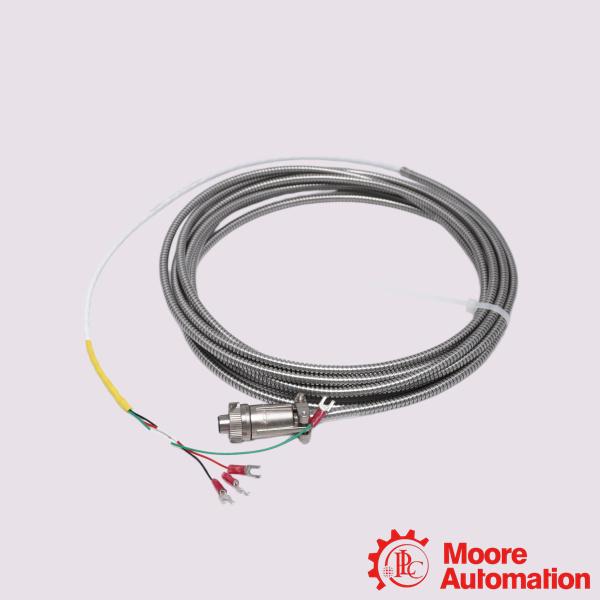

The Bently Nevada 330400-01-00 is an industry-standard Accelerometer Acceleration Transducer used for casing vibration monitoring on critical machinery. The 16710-20 is its matching armored interconnect cable with a length of 20 feet.These accelerometers are intended for critical machinery applications where casing acceleration measurements are required. The 330400 address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.
Application:
Power Generation Plants: Track structural stress, bearing health, and mass imbalance on steam turbines, massive cooling tower fans, generators, and heavy-duty water feed pumps.
Gear Mesh Monitoring: Tailored specifically to capture high-frequency vibrations. It detects early structural pitting, tooth wear, or misalignment on large industrial gearboxes and speed incrementers/reducers.
Mining & Heavy Processing: Installed on high-impact machinery like crushers, sag mills, pulverizers, and large material conveyors where structural casing readings are required to predict mechanical fatigue.
Water & Wastewater Treatment: Deployed on massive high-volume pumps and aerators to identify cavitation or impeller damage before it prompts catastrophic failure.
Frequently Asked Questions (FAQ)
Q:Where is this hardware combo typically deployed?
A:It is designed for critical casing vibration applications like gear mesh monitoring and high-speed rolling element bearings.
Q:Why choose the armored 16710-20 cable over unarmored options?
A:The stainless steel armor protects physical wiring from flying debris, hot oil, and abrasive structural rubbing.
Q:What is the maximum allowable cable length?
A:The signal can travel up to 305 meters (1,000 feet) without experiencing signal degradation
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：16710-20 330400-01-00 |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5%. |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak. |
|
Broadband Noise Floor (10 Hz to 15 kHz) |
0.039 m/s2 (0.004 g) rms. |
|
Input Voltage |
-24 ± 0.5 Vdc. |
|
Bias Current |
2 mA nominal. |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc |
|
Operating and storage temperature |
-55°C to +121°C (-67°F to +250°F) |
|
Mounting Thread Option |
¼-28 UNF integral stud |
|
Agency Approval Option |
None |
|
Cable Length Option in feet |
20 ft (6.10 m) |
|
