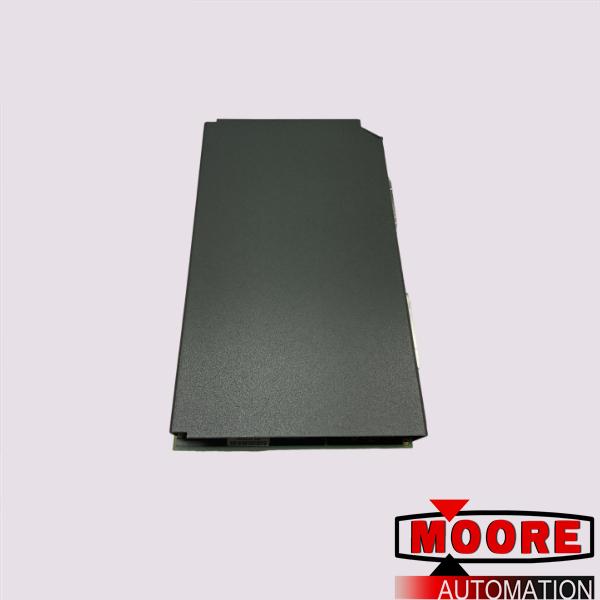

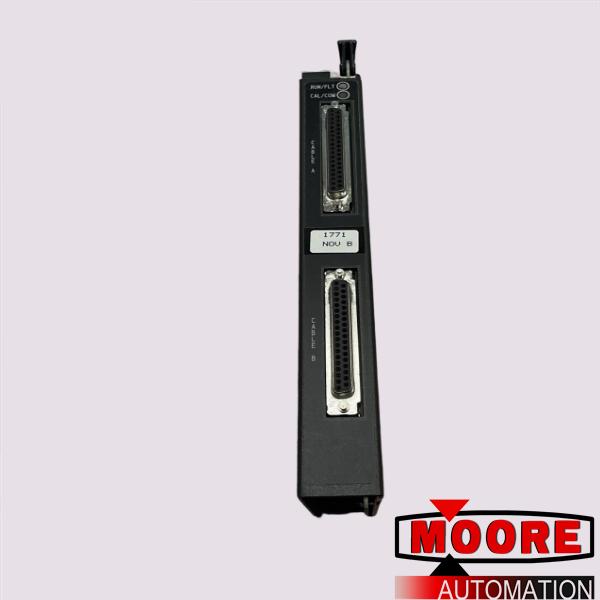

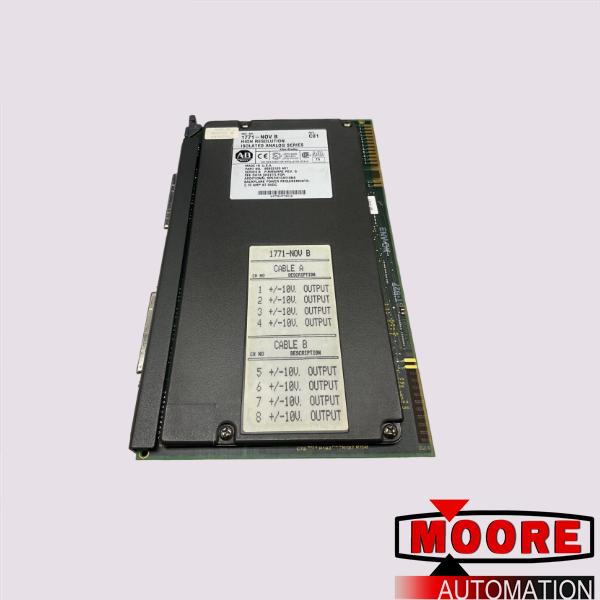

1771-NOV | | analog output module

Brand/ Manufacturer:
Dimensions:
15.2cm*5.1cm*27.9cm
Weight:
0.8kg
Country of Origin: :
United States
Description:
Analog Output Module

Inquiry now

Mfr. Part Number:	1771-NOV

Manufacturer:

Description:	PLC 5 N-Series Analog I/O Module, 0 Inputs, 8 Outputs, 2.1 Amperes Backplane Current, BDC or Natural Binary Data Format

Full Description:	The 1771-NOV is a High-resolution Isolated Analog Module. With an output resolution of 1.32 milliVolts/bit, this module gives 1000 Volt isolation between channels. The channel to channel isolation of this module provides the connection of various resources to the same module without creating ground loops or damaging components due to excessive voltage differences between channels.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Technical Specifications for 1771-NOV

Manufacturer: Automation
Brand:
Part Number/Catalog No.: 1771-NOV
Module Type: N-Series Analog I/O Module
Input Types: N/A
Input Resolution: N/A
Number of Outputs: 8 Outputs
Output Type: Voltage
Output Resolution: +/- 10 Volts DC (1.32 Milivolts/bit)
Backplane Current: 2.1 Amperes
Typical AC Signal Delay (Off): 45 (+/- 15) ms
Typical DC Signal Delay (Off): 50 ms

About 1771-NOV
The 1771-NOV is a High-resolution Isolated Analog Module. With an output resolution of 1.32 milliVolts/bit, this module gives 1000 Volt isolation between channels. The channel to channel isolation of this module provides the connection of various resources to the same module without creating ground loops or damaging components due to excessive voltage differences between channels. This module has calibration interval of one year.

The output range of this module is +10.4 Volts into an open circuit, the output impedance is 1 Ω, and the output overvoltage protection is 140 Volts AC RMS continuous. It has an Offset drift of ±400 µA/degree Celsius, and its Gain drift is limited to ±50 ppm/degree Celsius. The Calibration value of this module is 0.0/10.0 Volts DC; its minimum Ramping value (at 1% FSR) is 0.2 Volts per second, while it's maximum (at 200% FSR) is 40 Volts per second. The maximum update time is 25 milliseconds.
